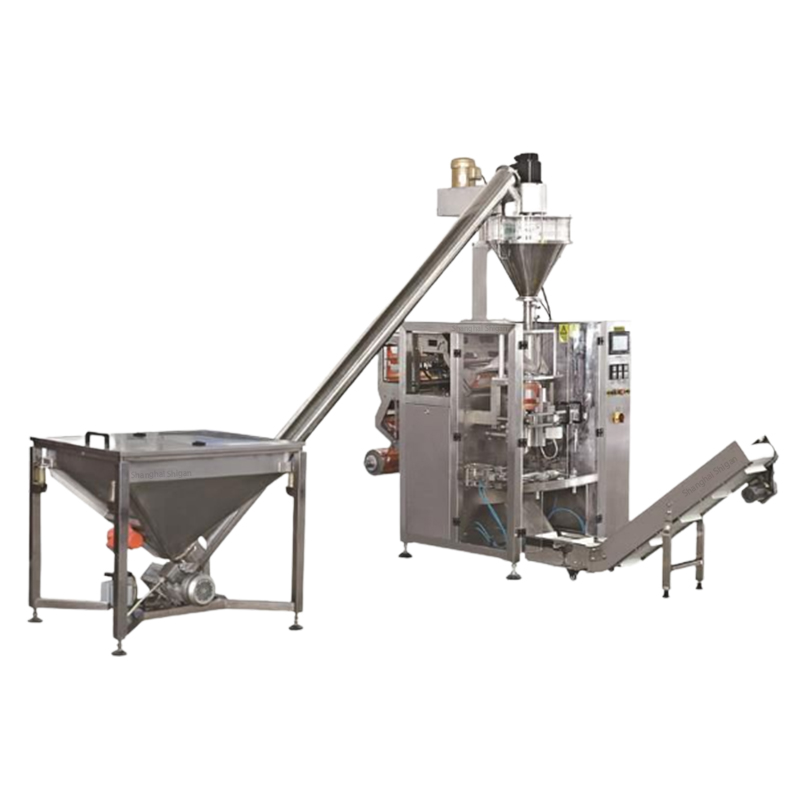

The 50g-100g 304SS Powder Mixing Conveyor Packing Machine is a highly intelligent packaging machine with Chinese (or English) display, and the use of advanced microcomputer chips to control the photoelectric tracking and deviation correction system, which can save manpower and material resources and improve work efficiency. Weighing Vertical Packing Machine can carry out quantitative packaging for granular desiccant, monosodium glutamate, sugar, salt, washing powder and other materials.Welcome to consult for quotation information !
Metering method: spiral rotary filling
Packing weight: 10-5000g
Packaging accuracy: ≤±0.3-1%
Packing speed):20-80 bags/min
Power supply: three-phase four-wire 380V (or customized single-phase 220V)
Machine power: 2.3kw
Machine weight: 150kg
Electrical equipment: servo motor driver, PLC intelligent control, frequency conversion speed regulation
Overall volume: 1030×690×1100mm (excluding the length of the screw attachment)
Material box volume: 50L
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. Chinese and English touch screen display, intuitive and simple operation.
2. PLC computer control system, the operation is more stable, and any parameter can be adjusted without stopping the machine.
3. Multiple sets of parameters can be stored, and the replacement of varieties is more accurate.
4. With double servo motor control, the film pulling is more accurate and faster.
5. Independent temperature control system, the temperature can reach ±1°C.
6. The temperature of horizontal and vertical sealing can be controlled independently, which can be well applied to packaging materials such as film and PE film.
7. Diversified packaging styles (three-side seal, four-side seal, triangle bag, handbag), back seal, gusset, bag, punching, etc.
8. The production of bag making, sealing, packaging, and date printing is completed in one go.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
A. Pre -sale:
1. In accordance with the customer's requirements, the customer quotes the customer, and the customer has special requirements for timely recording feedback;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide free warranty for one year, lifelong maintenance service, and be responsible for debugging the product before delivery;
B. After -sales:
1. If the customer's product fails, the problem will be solved for you as soon as possible
2. During the warranty period, the product maintenance is free. It exceeds the warranty period and can also provide maintenance. If the accessories are replaced, the product accessories are provided at the cost price.
