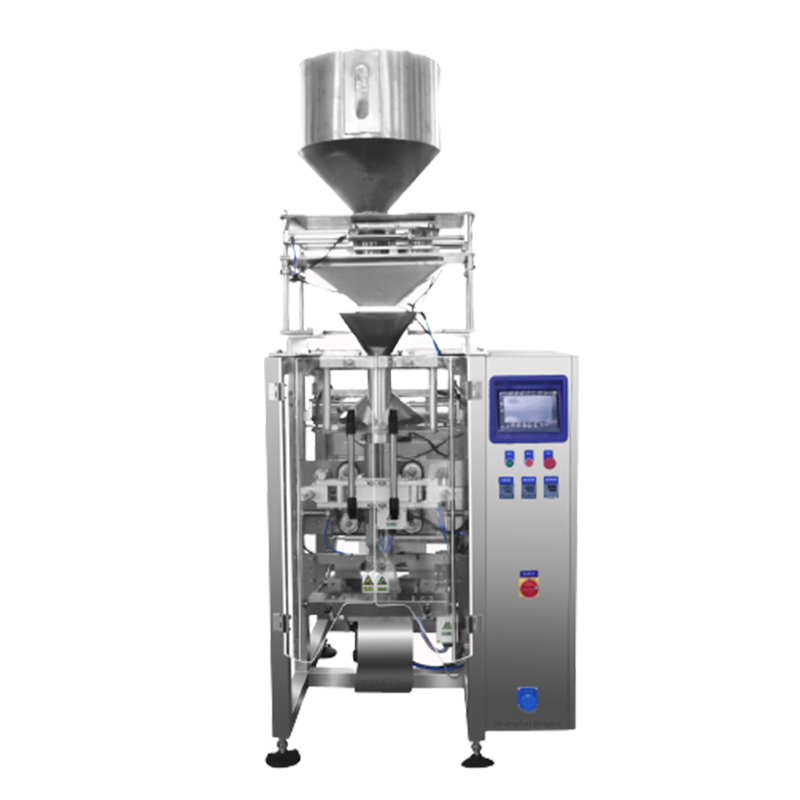

Salad Dressing/Ketchup/Condensed Milk/Jam Packing Machine can automatically finish all processes, from measuring, bag making, filling,sealing, marking, cutting and counting, which largely reduces labor cost and improves working efficiency inlarge-scale production. Moreover, our Small Vertical Viscous Paste Packing Machine is specially designed for automatic packaging of liquid and viscous fluid state with scientific design and high efficiency.Therefore the verticalliquid packing currently has been adopted by a wide range of paste packing manufacturers in the foodindustry, medicine, chemical industry and etc.Welcome to consult for quotation information !
Packing efficiency: 30-55 bags/min; the specific speed depends on the material
Bag length range: 80-160mm
Bag width range: 20-50mm
Packing capacity: 1-50ml
Sealing form: back seal (rounded corner/shaped) customized knife mold on demand
Power requirements: 220V 50HZ; 3.8KW
Air source requirements: 0.6Mpa; 0.5m3/min
Product specifications: 1260*960*2130mm; the specific size depends on the bag specification 400kg
Coding method: heat coding or stamping optional
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. New design, bright appearance, more reasonable structure, more advanced technology.
2. Imported PLC full computer control system, color touch screen, easy to operate, intuitive and efficient.
3. Imported servo film conveying system, imported color mark sensor, accurate positioning, excellent performance of the whole machine, and beautiful packaging.
4. A variety of automatic alarm protection functions to minimize loss.
5. The bag shapes are diversified, and we can provide customers with pillow-shaped bags, gusseted bags, hanging hole bags, even bags, etc.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
★Pre-sales
project design,performance introduction,technical agreement,contract signing,production testing and we can customized production according to your requirements.
★In-sales
we will provide you with the latest process in the product assembly,packing and transportation.
★Installation
◎We provide videos and instruction manual to show the process of installation.
◎We provide training for installation for free in our factory.
◎We can send technician to buyer's factory to install the machine and provide training service.
★After-sales
◎ For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.
◎We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts.
