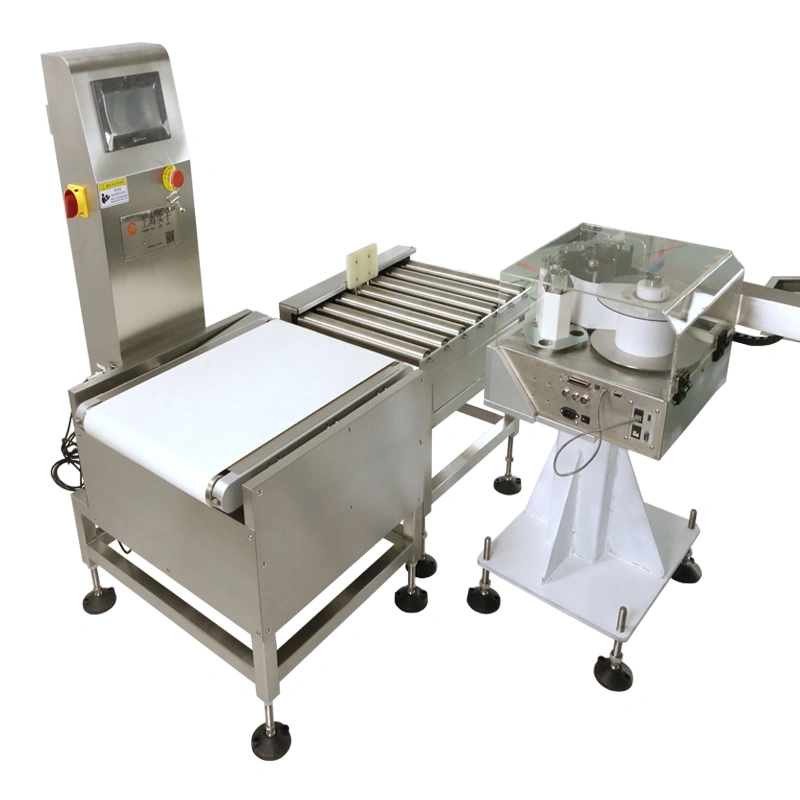

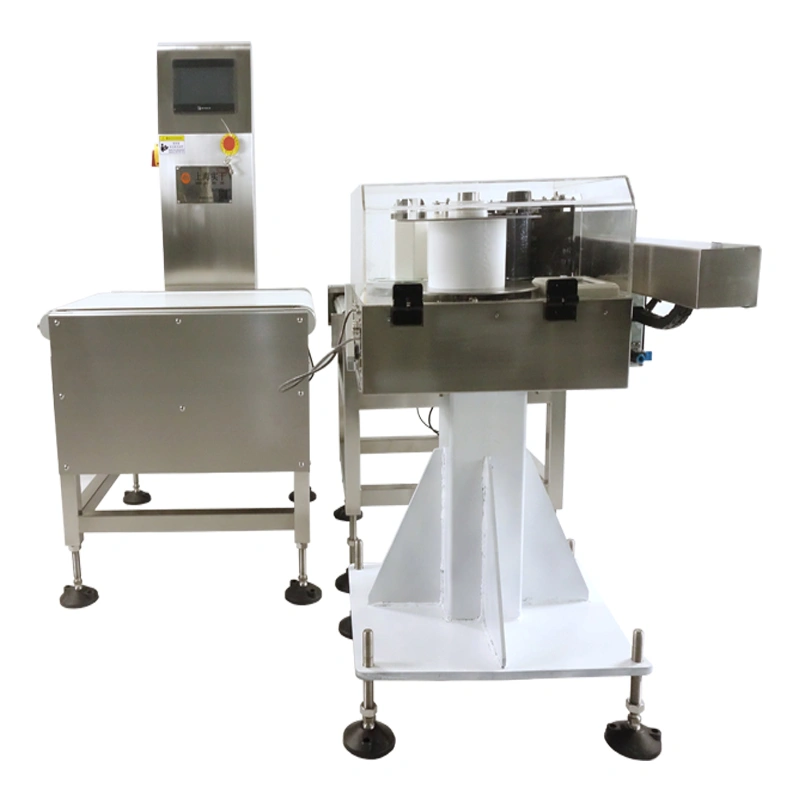

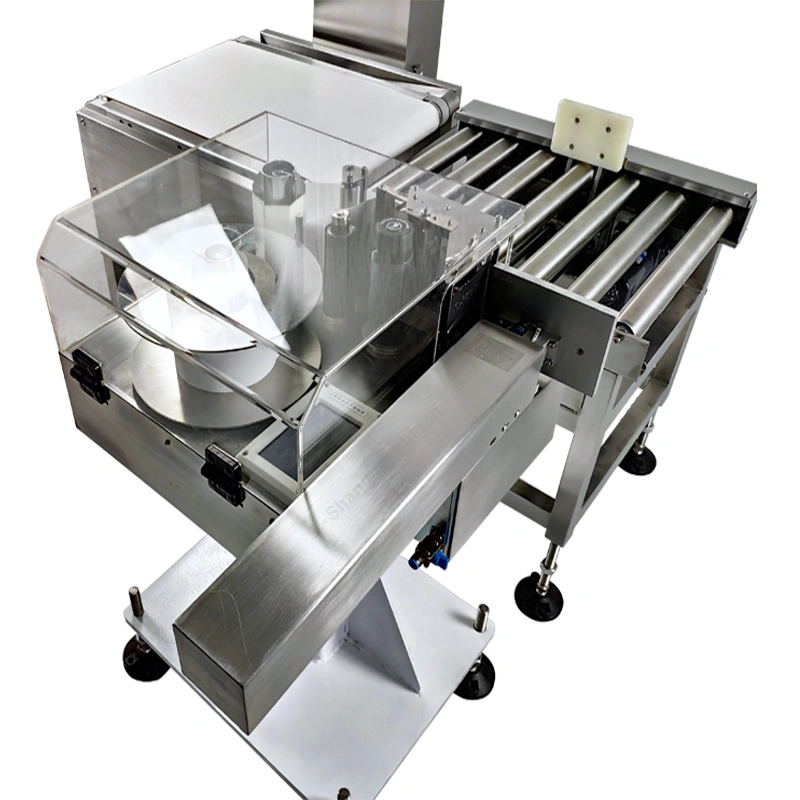

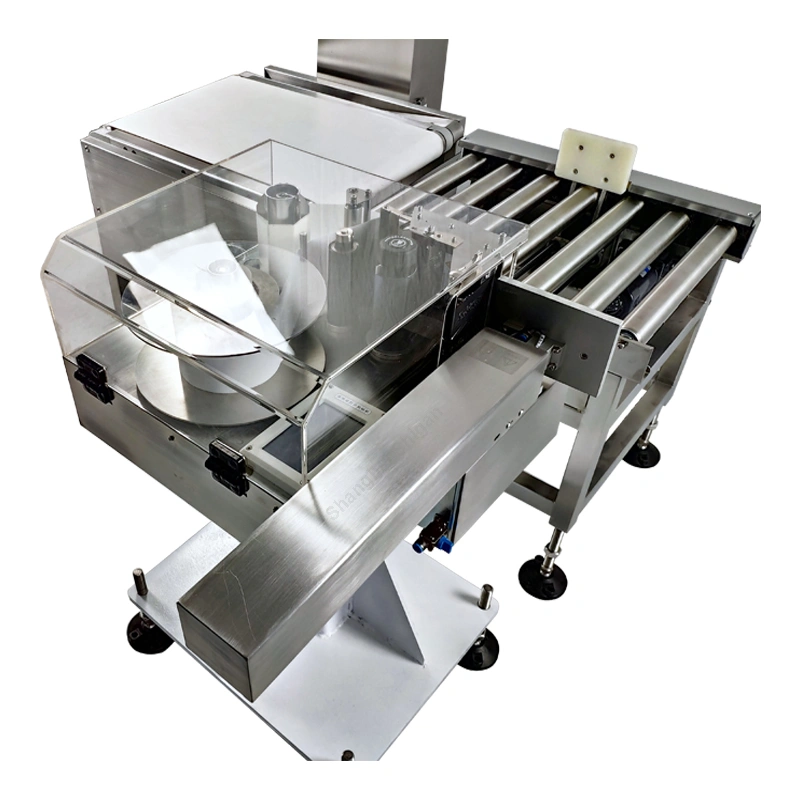

The Steel Coil Labeling Machine is a production and packaging equipment that improves labor efficiency.It has a weighing unit and a labeling unit integrated,and can print variable information such as instant weight labels and production dates.Set the product unit price and automatically calculate the total price of a single product.Bottled Pharmaceutical Weight Labeler can also be connected to the system to generate a two-dimensional traceability code to trace the product.The weighing and labeling machine is widely used, mainly in factories, fresh food distribution centers,supermarkets and other places.
Weighing range: 5g—1500g
High detection accuracy: ±0.5 grams (the heavier the weight, the faster the speed, the worse the accuracy, depending on the size, speed and weight of the product)
Small scale: 0.1g
Belt width: 220mm
Belt height from the ground: 800mm±50mm
Conveying speed: 20-60 m/min (variable frequency speed regulation)
Detection speed: 60~120 pieces/min
Conveying direction: facing the screen from left to right
Power supply: 220V 50-60HZ
External air source: 0.6—1Mpa
Air pressure interface: ￠8mm
Power: about 200W
External dimensions: about 1543mm(L)*721mm(W)*1470±50mm(H)
Host weight: about 100Kg
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!

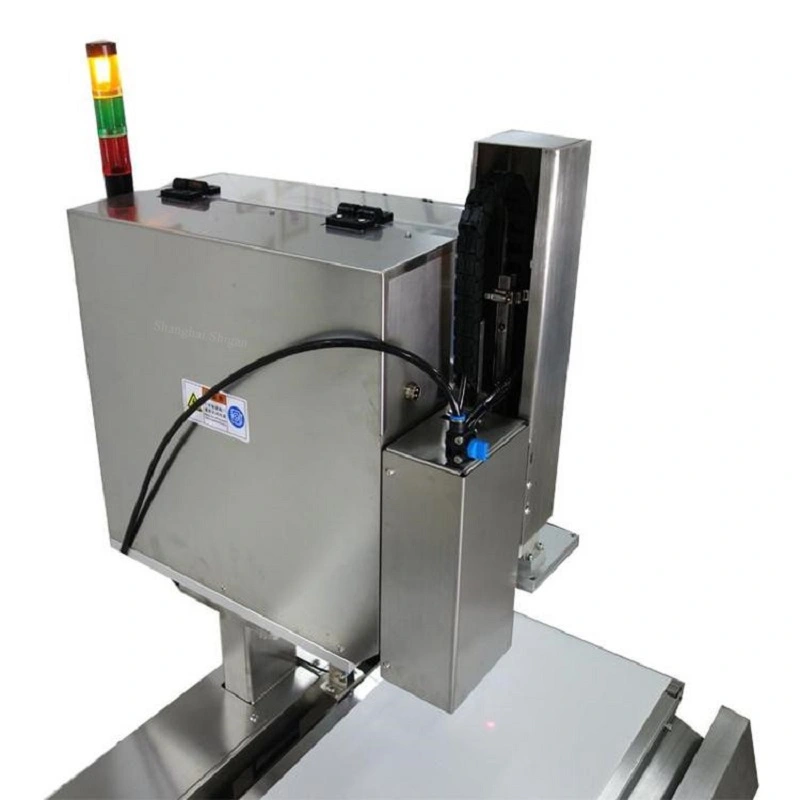

1. The labeling machine is durable: the moving guide rod of the labeling head adopts double rods and ball bearings, so it ensures the high precision of labeling and the durability of the labeling machine.
2. Suitable for barcode printing and labeling of products of different heights: through the automatic induction adjustment control of the cylinder stroke, the sato labeling machine can easily automatically label products of different heights. It can be attached to the bottom, side, and arc surface. The load cell adopts German HBM.
3. Easy to adjust: Adjust the gap between the labeling head and the edge of the label through four screw adjustments, and use the TEST mode to adjust with one key on the keyboard to optimize the entire printing and labeling process.
4. Pre-labeling key: This key can test the labeling process, press the key once, the label will be printed and adsorbed on the labeling head, and then press the key again to label.

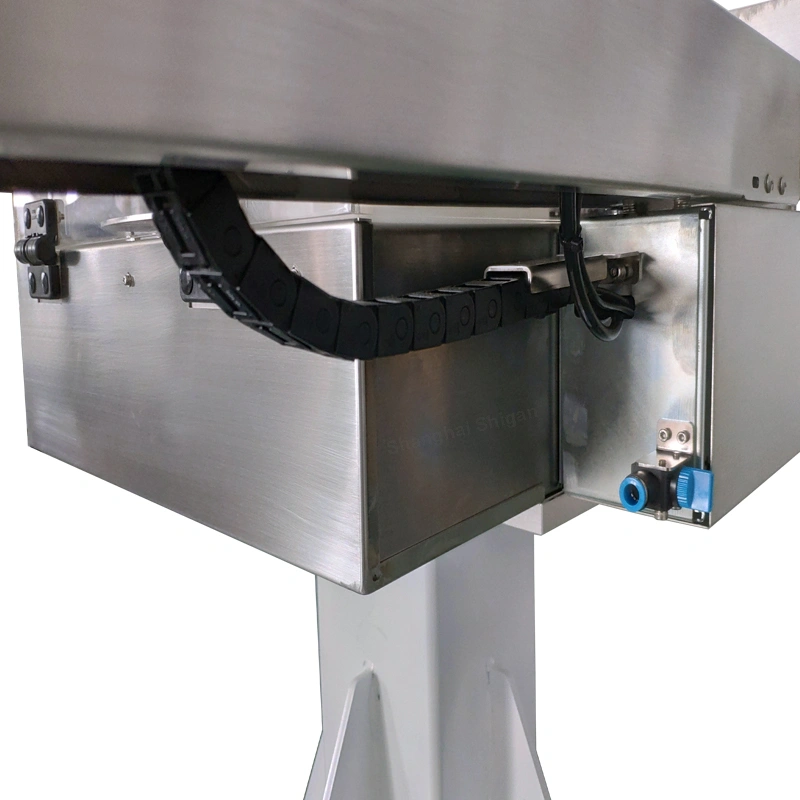

5. Compressed air unit: installed next to the printer, by adjusting the valve to ensure the quality of labeling, the flow rate is less than 2CFM.
6. High flexibility: the labeling method can be selected according to the characteristics of the product. Blowing labeling can label circular and irregular products.
7. Strong real-time performance: Barcode sticky notes, the content can be printed immediately from the company's ERP system and weighing system. Available label size range: length 9mm-200mm, width 9mm-176mm.
8. Open signal transmission system: USB keyboard and barcode scanner can be connected
9. Label paper quality can be selected according to requirements.
Our products can be shipped by sea, air and land.
Q1: Are you a manufacturer or a trading company?
A: We are the manufacturer. We have a professional factory in Guangdong, China, producing various packaging machines, automatic metal detectors, dynamic checkweighers, automatic weighing and labeling machines, etc.
Q2. Do you sell the accessories of the product?
Answer: Yes. We can provide spare parts for customers who have problems with the minimum cost.
Q3. How about the product packaging? Is it easy to damage during transportation?
A: We are packaged with a plywood box, which is enough for transportation.
Q4. What is your after -sales policy?
Answer: Customer first is our principle. All of our products have a 12 -month warranty period. We provide necessary video guidance for daily issues. If the machine encounters a lot of problems, our technical engineers can support overseas services.
Q5. Do you accept the customer logo and customization?
A: We support a variety of ODM/OEM. If you have this need, please contact us at any time to customize the suitable machine.
