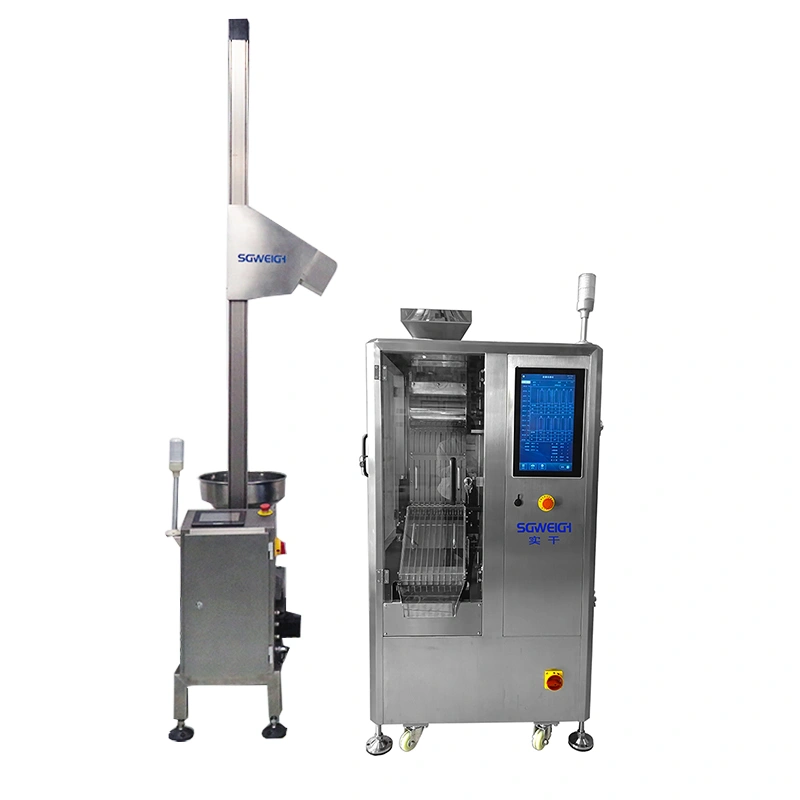

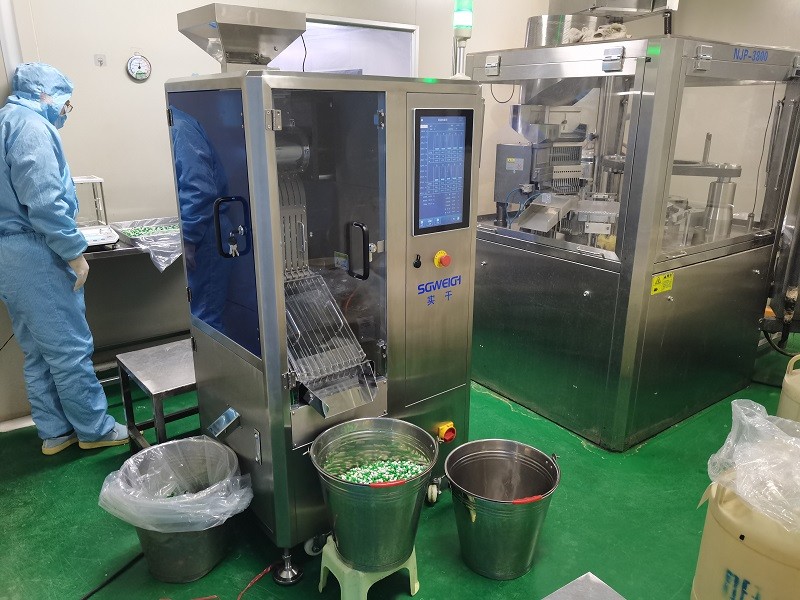

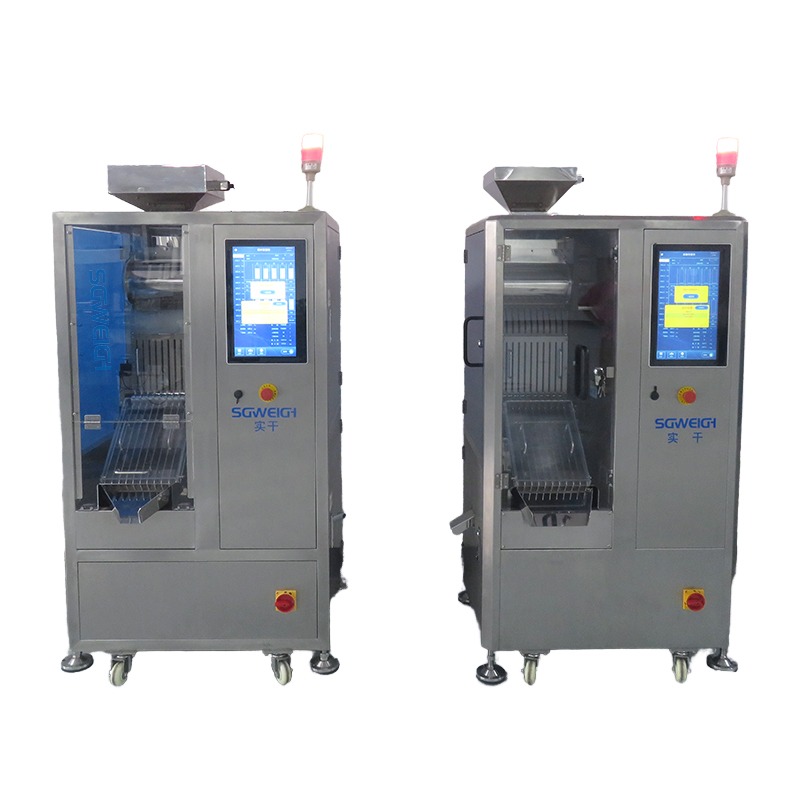

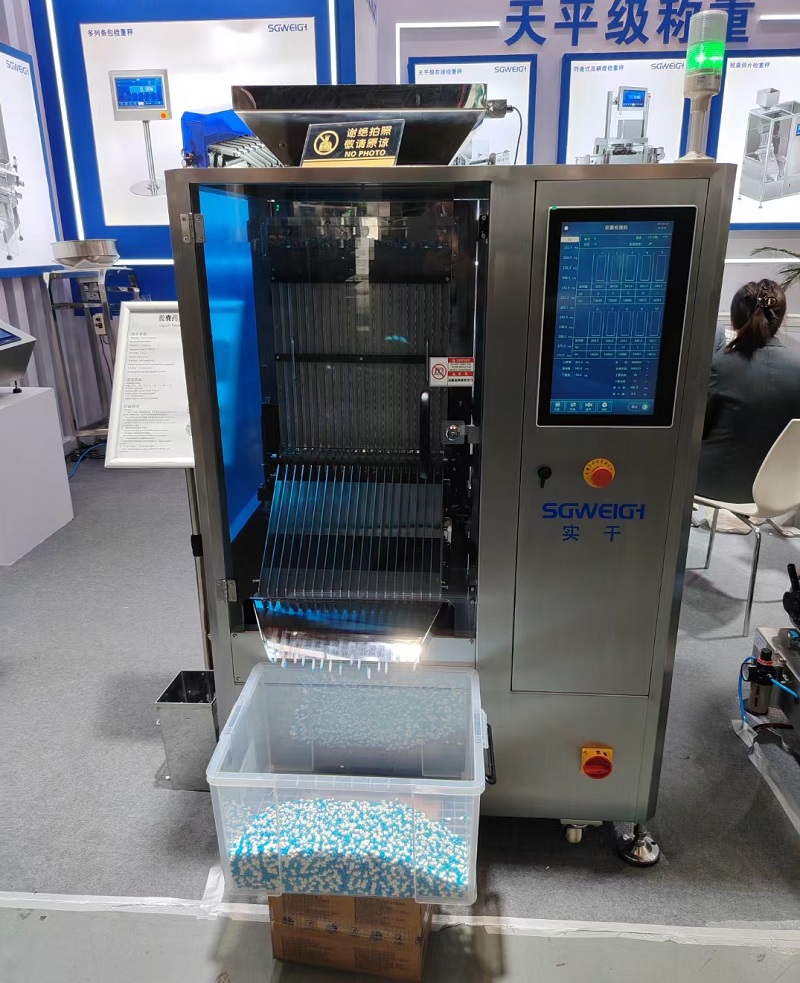

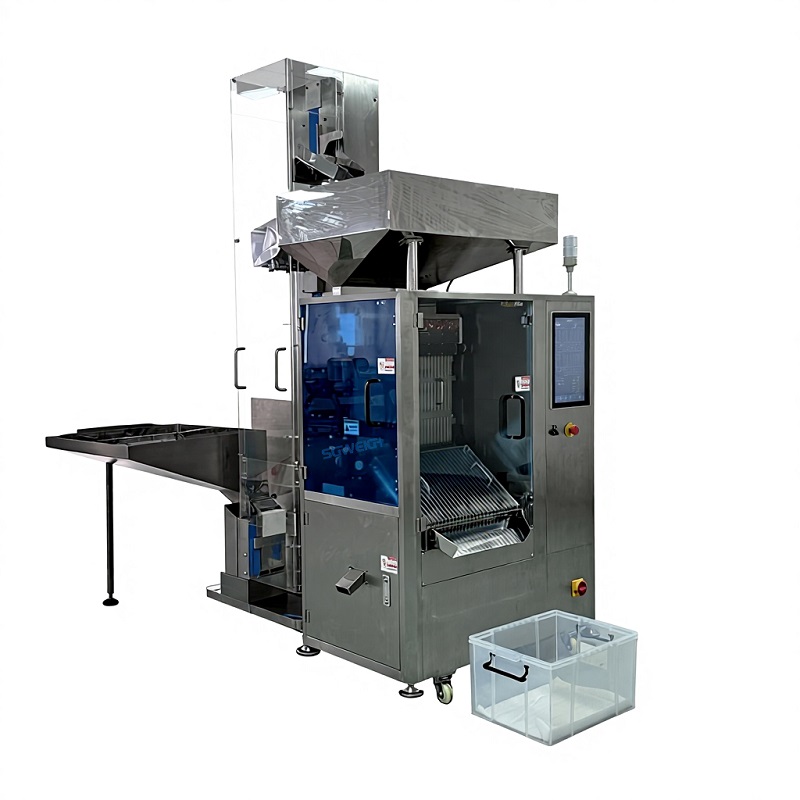

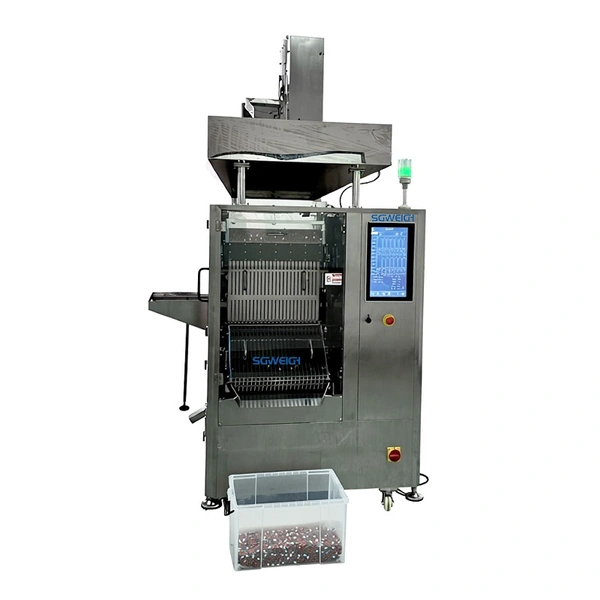

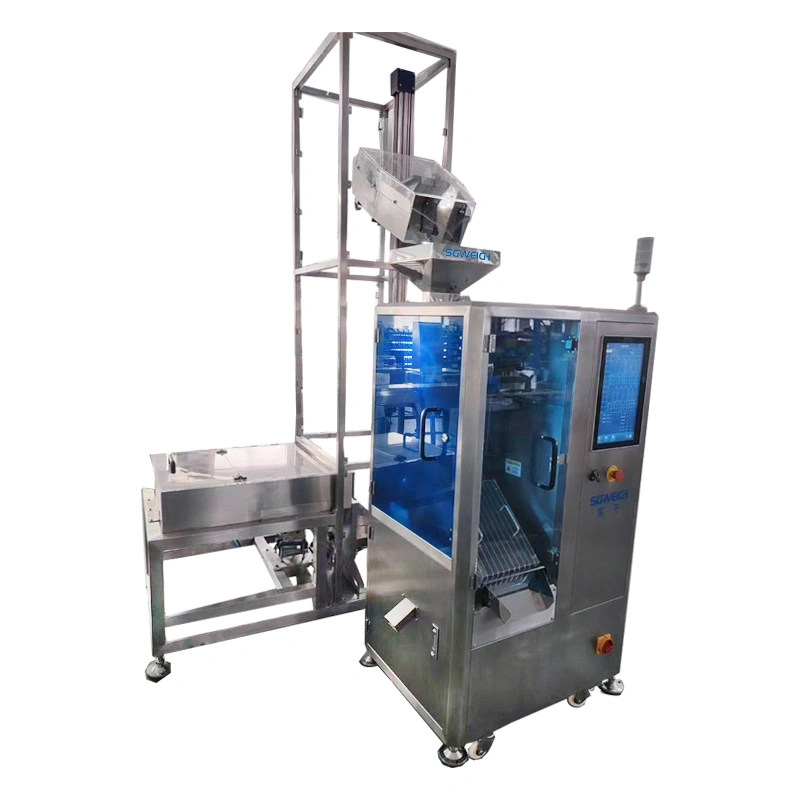

The 100% Capsule Checkweigher is a precision weighing device used for high-speed, continuous, and online quality monitoring of individual capsules.
Through a high-sensitivity weighing module and intelligent rejection mechanism, it can achieve real-time weight detection, anomaly identification, and
automatic rejection of each capsule, ensuring product consistency and high-quality output. Its high-speed full-inspection mode is suitable for various
capsule sizes and different production line layouts.
Type:SG-JN10/SG-JN20/SG-JN3O

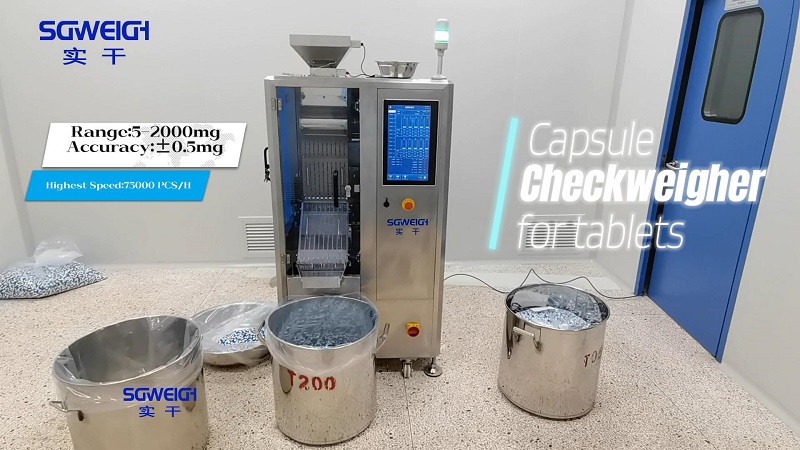

Weighing scope:5-2000mg
Display scale:0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability:100000 PCS/HR/200000 PCS/HR/300000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation)
Shell material:SUS304
You can select the best suitable model depending on the production volume.

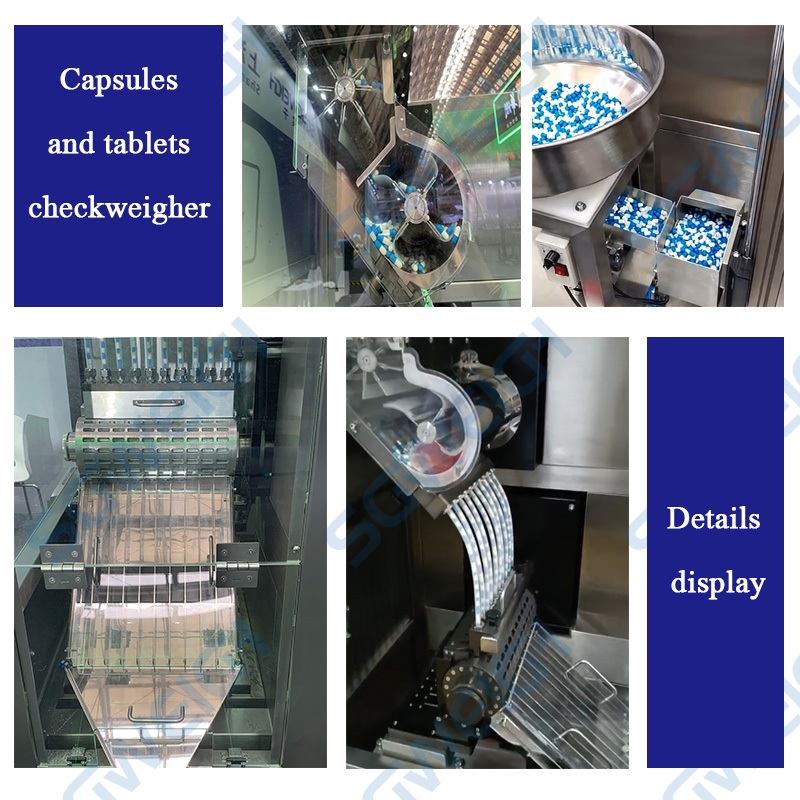

1. High-Speed, Individual Capsule Weighing (100% Online Detection)
Utilizes a high-speed sampling algorithm to achieve stable weighing even at high speeds, suitable for large-batch continuous testing.
2. High-Precision Weighing Unit
Resolution reaches the mg level, ensuring accurate identification of even minute weight deviations.
3. Automatic Rejection System
Automatically rejects capsules that do not meet weight standards, ensuring that every finished product is within the set standard range.
4. Compatible with Various Capsule Sizes
Supports hard capsules (sizes 00–5), various soft capsules, and special-sized capsules.

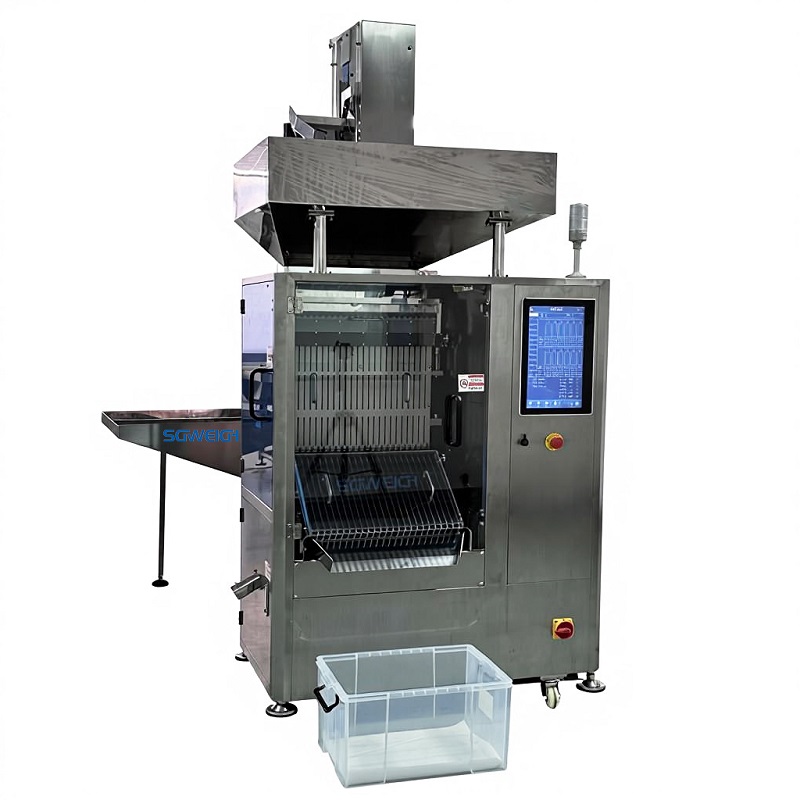

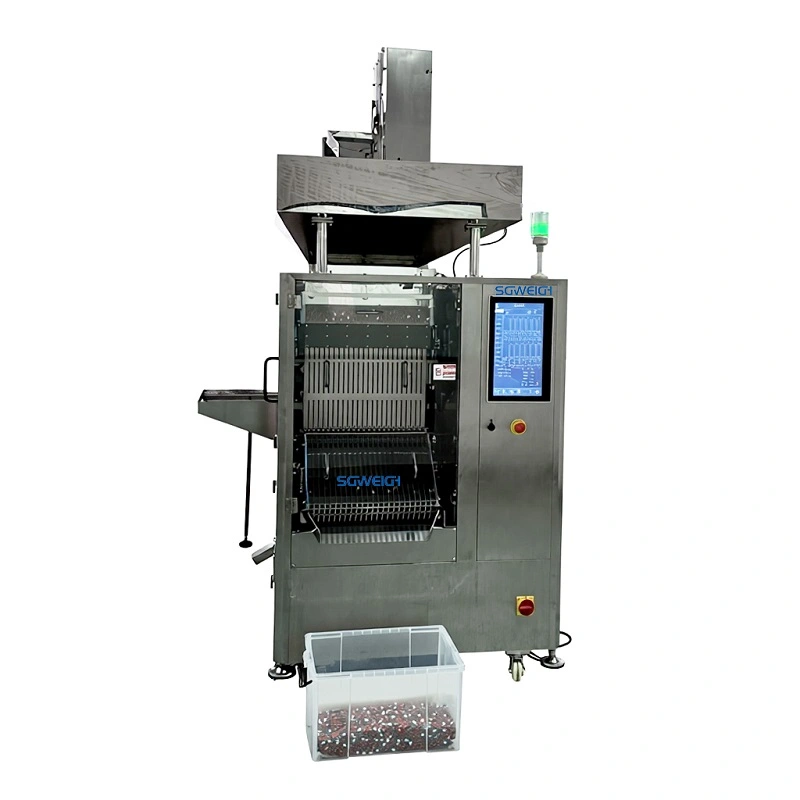

5. Optional Multi-column Structure
Includes multi-track designs with 10-30 columns to meet different production capacity requirements.
6. Intelligent Data Tracking and Recording
Generates weight trend charts and batch statistical reports, providing data support for production quality management.
7. Compact Footprint and Easy Integration
Modular structural design allows for easy integration into existing production lines.
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
