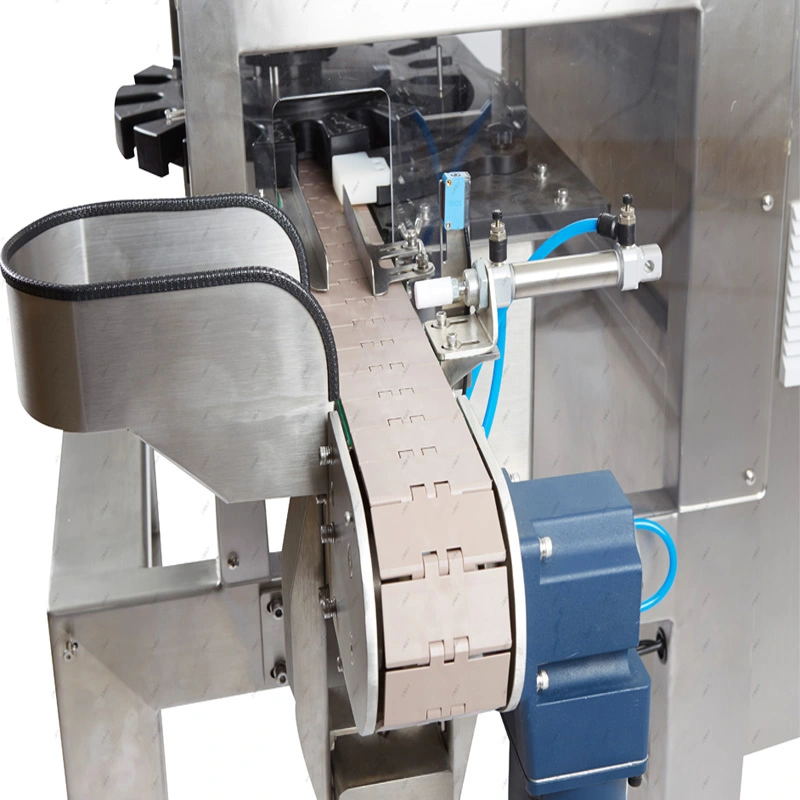

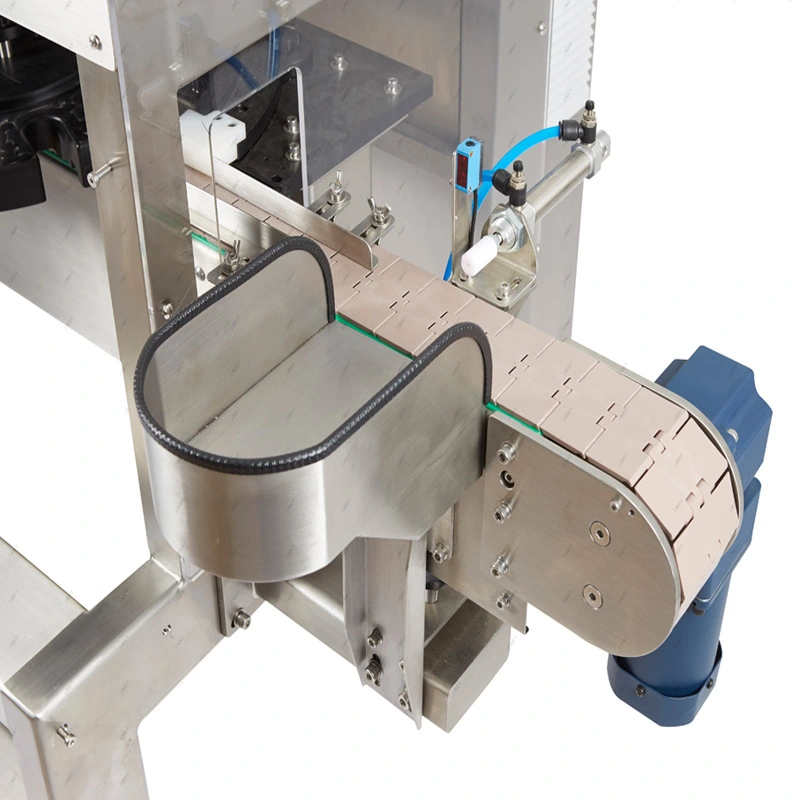

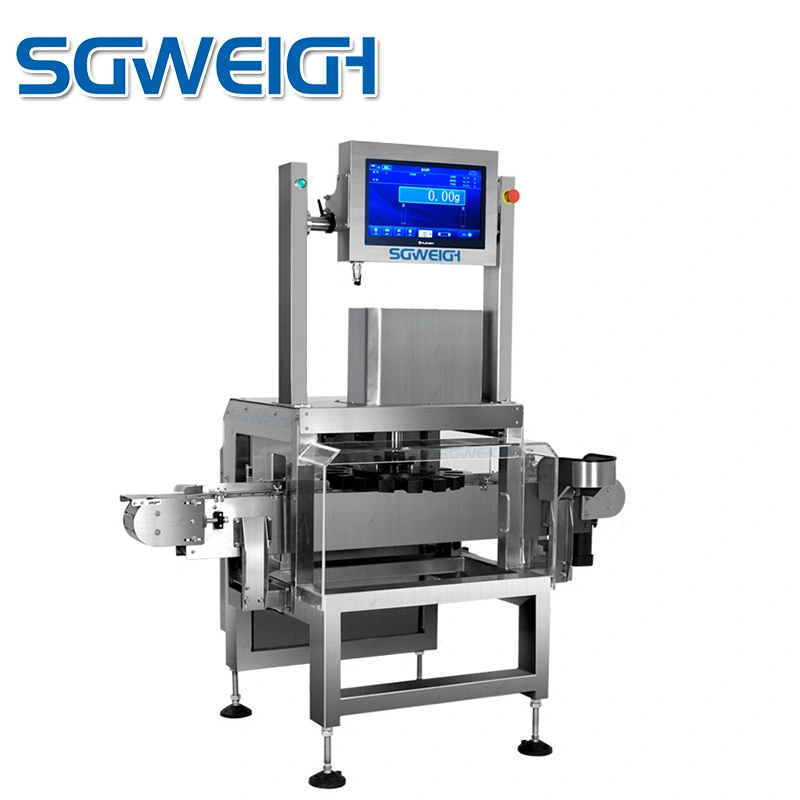

The SG-Z 2-Track Eye Drop Vial Touchscreen Control Bottle Rotary Checkweigher is mainly composed of front-end chain plate feeding,clamping turntable,weighing module,discharging chain plate and rejection.Photoelectric positioning, the turntable accurately delivers the product to the weighing sensor.Welcome to consult for quotation information!
Model: SG-Z2 (dual channel)
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:20-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1.Large screen display, clear viewing and convenient operation
2.Chinese-English interface ( Multiple languages can be customized)

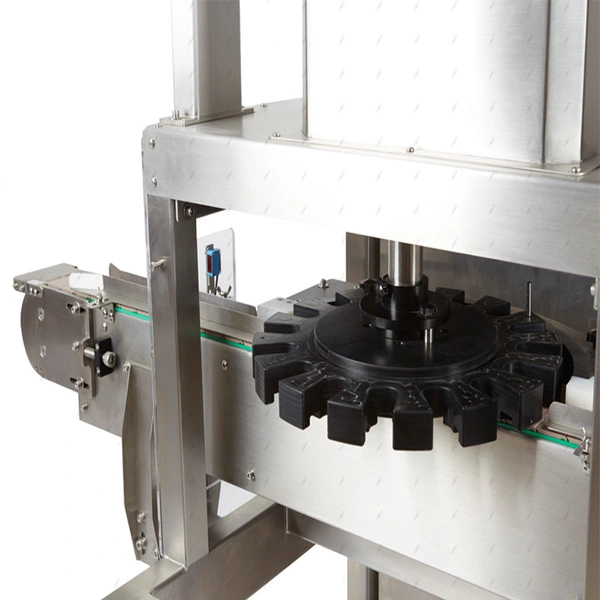

3.Photoelectric positioning, the turntable accurately sends the product to the load cell
4.Chain conveyor is strong and durable
5.Three-level operation authority management, support self-set Password
6.100 kinds data can store with strong data statistics function.
7.Unqualified products are automatically rejected (push type, air blowing type are optional)
8.Multiple lane pass products to improve production efficiency (the number of lanes can be customized)
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
★Pre-sales
project design,performance introduction,technical agreement,contract signing,production testing and we can customized production according to your requirements.
★In-sales
we will provide you with the latest process in the product assembly,packing and transportation.
★Installation
◎We provide videos and instruction manual to show the process of installation.
◎We provide training for installation for free in our factory.
◎We can send technician to buyer's factory to install the machine and provide training service.
★After-sales
◎ For our machines,we will provide some spare parts and easy broken parts free of charge when delivering.
◎We will have one year free warranty period. During warranty period,if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours.If there are some spare parts needed to be replaced,we will provide the spare parts for free. Beyond warranty,we will charge the cost price for spare parts.
