Model: SG-Z
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:20-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal

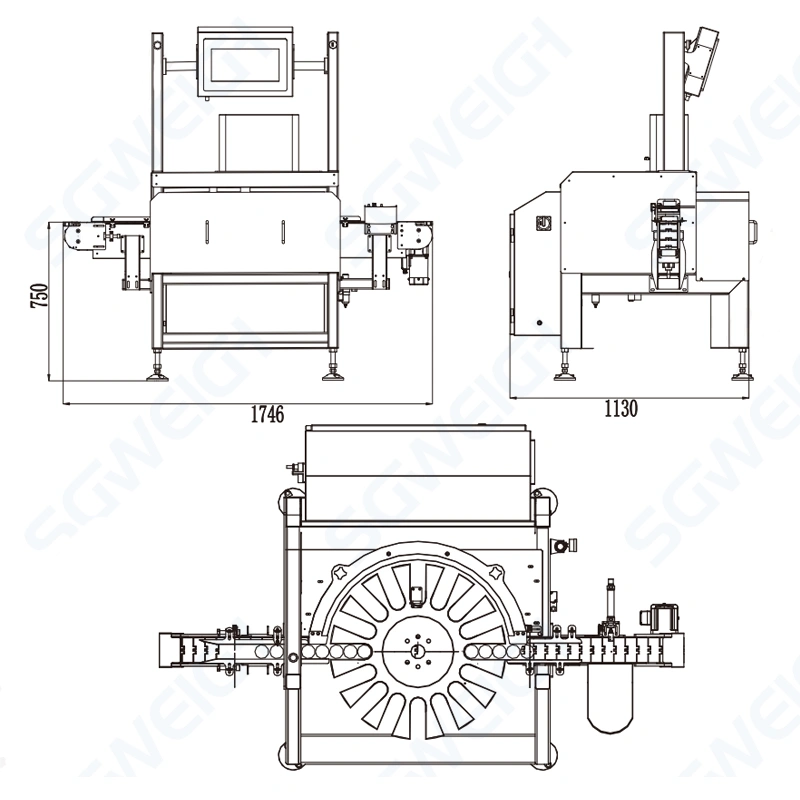

Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W
Windshield: thick acrylic (to avoid airflow interference)
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!

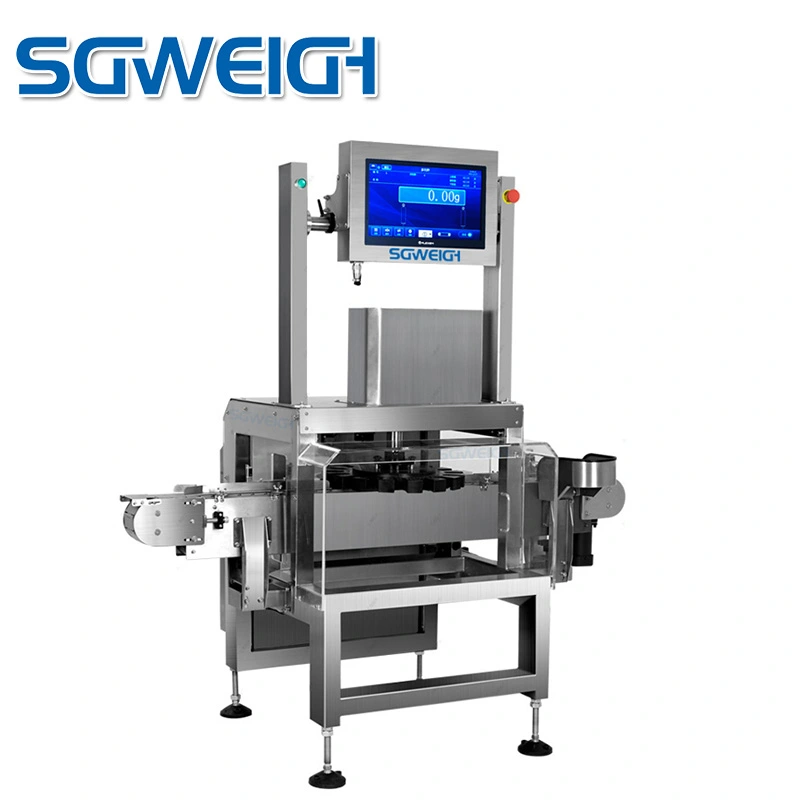

1.Large screen display,clear viewing and convenient operation
2.Chinese-English interface ( Multiple languages can be customized)
3.Photoelectric positioning, the turntable accurately sends the product to the load cell

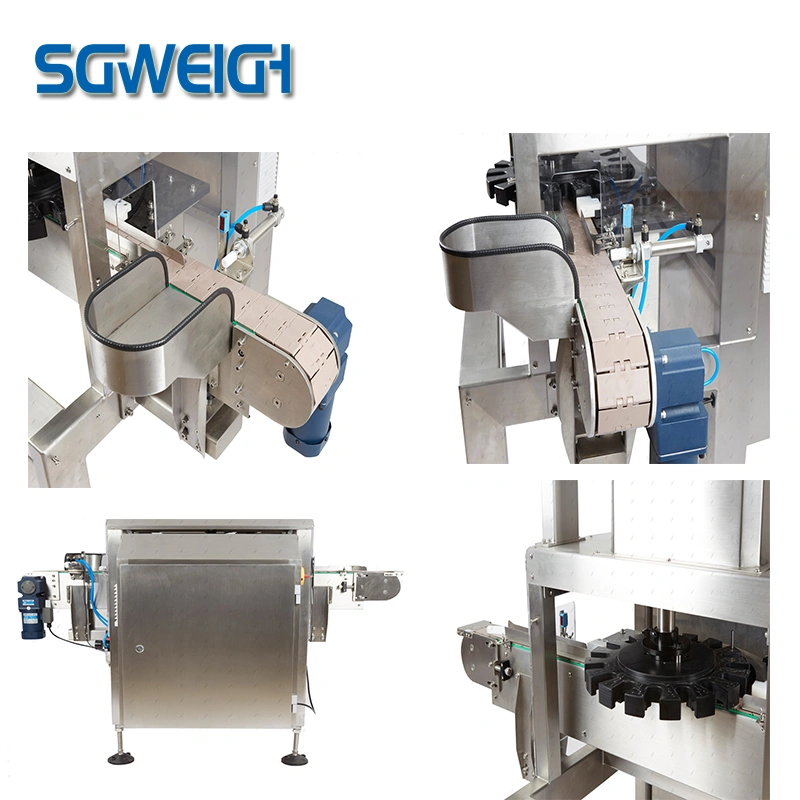

4.Chain conveyor is strong and durable
5.Three-level operation authority management, support self-set Password
6.100 kinds data can store with strong data statistics function.
7.Unqualified products are automatically rejected (push type, air blowing type are optional)
8.Multiple lane pass products to improve production efficiency (the number of lanes can be customized)
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
