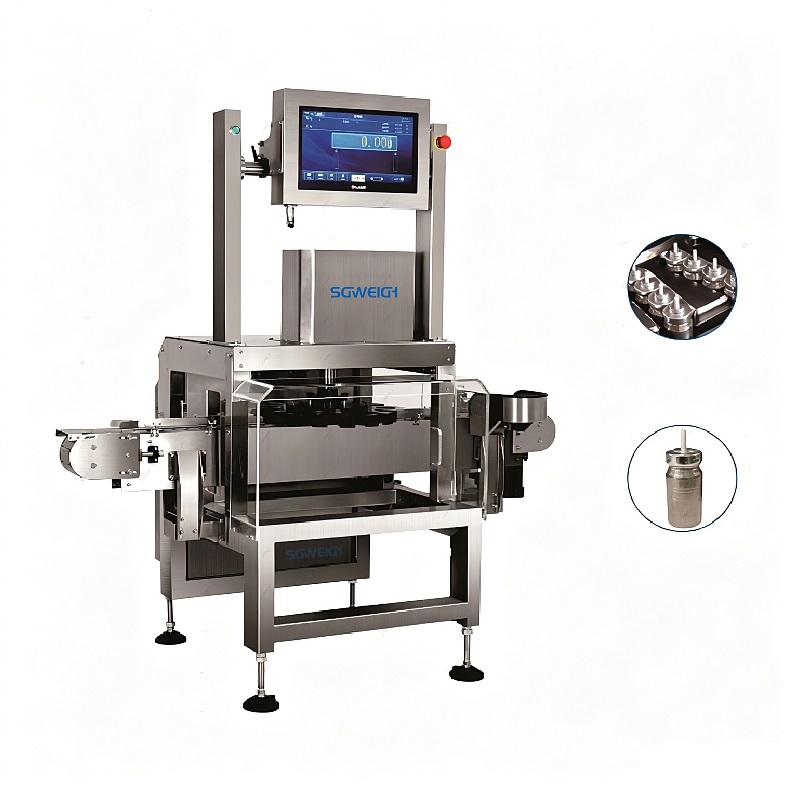

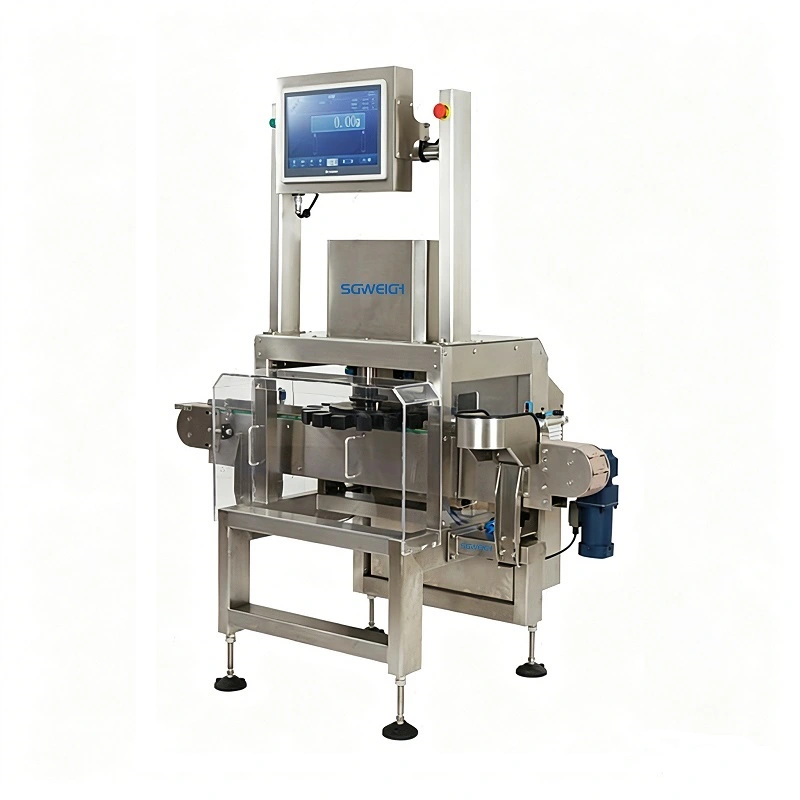

An Aerosol Inhaler Online Checkweigher is a high-precision dynamic weighing system designed for automated inspection of aerosol inhalers, metered-dose inhalers (MDIs), spray cans, and pharmaceutical pressurized containers during high-speed production.Aerosol Can Weight Inspection Machine accurately verifies product weight in real time to ensure correct filling volume, detect underfilled or overfilled products, and maintain compliance with pharmaceutical GMP and quality control standards.
Type:SG-Z
Weighing scope:2-300g
Restrictions of product:Ф10-100 Н:20-200(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt Speed:0-50m/min
Highest speed:60pcs/min,120pcs/min,180pcs/min(Optional)
Chain plate width:100mm
Weight of machine:about 260Kg
Powder supply ：AC220V 50HZ
Power:about 400W
Main material:SUS304
1: The speed and accuracy vary according to the products to be weighed, the rejector and setting conditions.
2:Weighing range, accuracy, and throughput other than above are available at your request.
1.High-accuracy dynamic weighing with precision up to ±0.01 g.
2.100% online inspection for aerosol inhalers and pharmaceutical spray products.
3.Detects underfilled, overfilled, and missing-component products.
4.High-speed operation suitable for continuous production lines.
5.Automatic rejection system for non-conforming products.
6.Stainless steel 304/316 construction for pharmaceutical-grade hygiene.
7.User-friendly touchscreen HMI with recipe storage and production statistics.
8.Easy integration with aerosol filling, capping, labeling, and packaging equipment.
9.Supports GMP, FDA, CE, and 21 CFR Part 11 data management requirements (optional).
10.Data recording, traceability, and network communication via Ethernet, Modbus, or OPC UA (optional).
11.Multiple channels pass products to improve production efficiency (the number of channels can be customized).
Checkweigher for small and medium sized cylindrical packages like bottles, jars and cans.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
Q1. Are you a manufacturer or a trader?
A: Shanghai Shigan Industrial Co., Ltd. is a manufacturer located in Shanghai,China. We have our own product design team and factory.
Q2. How many types of checkweighers do you have?
A：Our company has a variety of models of checkweighers, suitable for most products and can be applied to almost all industries. Our company's checkweighers can be customized according to demand.We have standard checkweighers, bottle checkweighers, multi-lane checkweighers,tablet capsule checkweighers, box checkweighers,heavy object checkweighers and so on.
Q3. What factors should be considered when choosing a checkweigher?
What is the product you want to weigh?
How many grams/kg of the product?
What is the size of the product?
What are the speed requirements?
Accuracy requirements?
Based on the above information, our sales will recommend the most suitable checkweigher for you.
Q4. How much does the checkweigher cost?
A:There is no quick,easy answer to this question.Our machines are customer-specific, so "standard pricing" is not usually available.Pricing depends largely on your unique needs,such as the product you want to weigh, the size of the product,the speed you want to achieve,or the complexity of the process.Contact us to get a specific quote.
Q5. What kind of shipping methods can you provide?
A: Sea, air and international express. We will send photos and videos of the machine to customers before delivery to check the operation of the machine.
Q6. Do you accept customer logos and customizations?
A: We accept all kinds of customization and logos for all products.
Q7. How is the product packaging?Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
