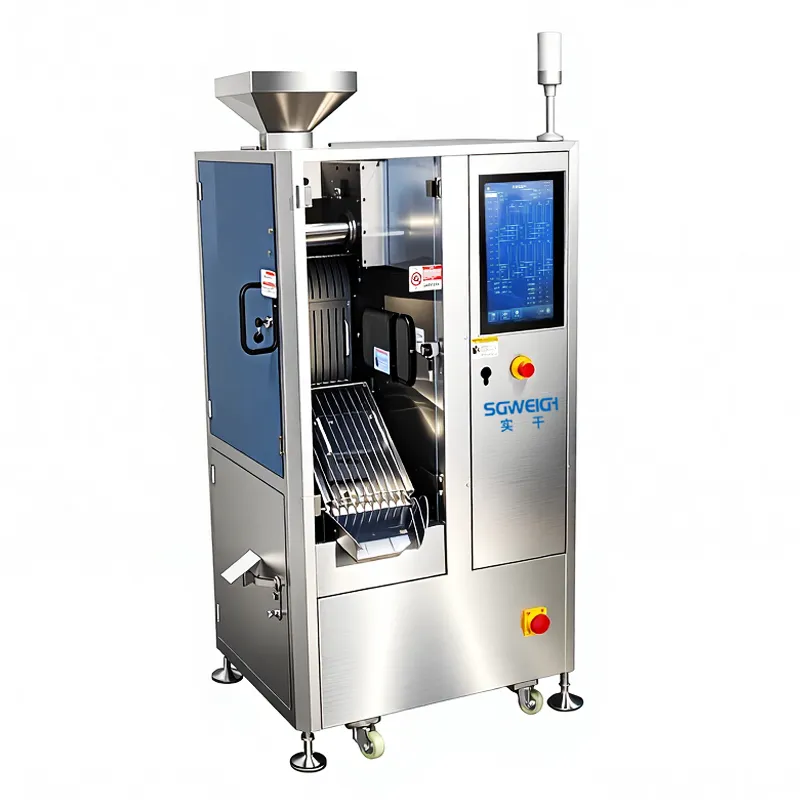

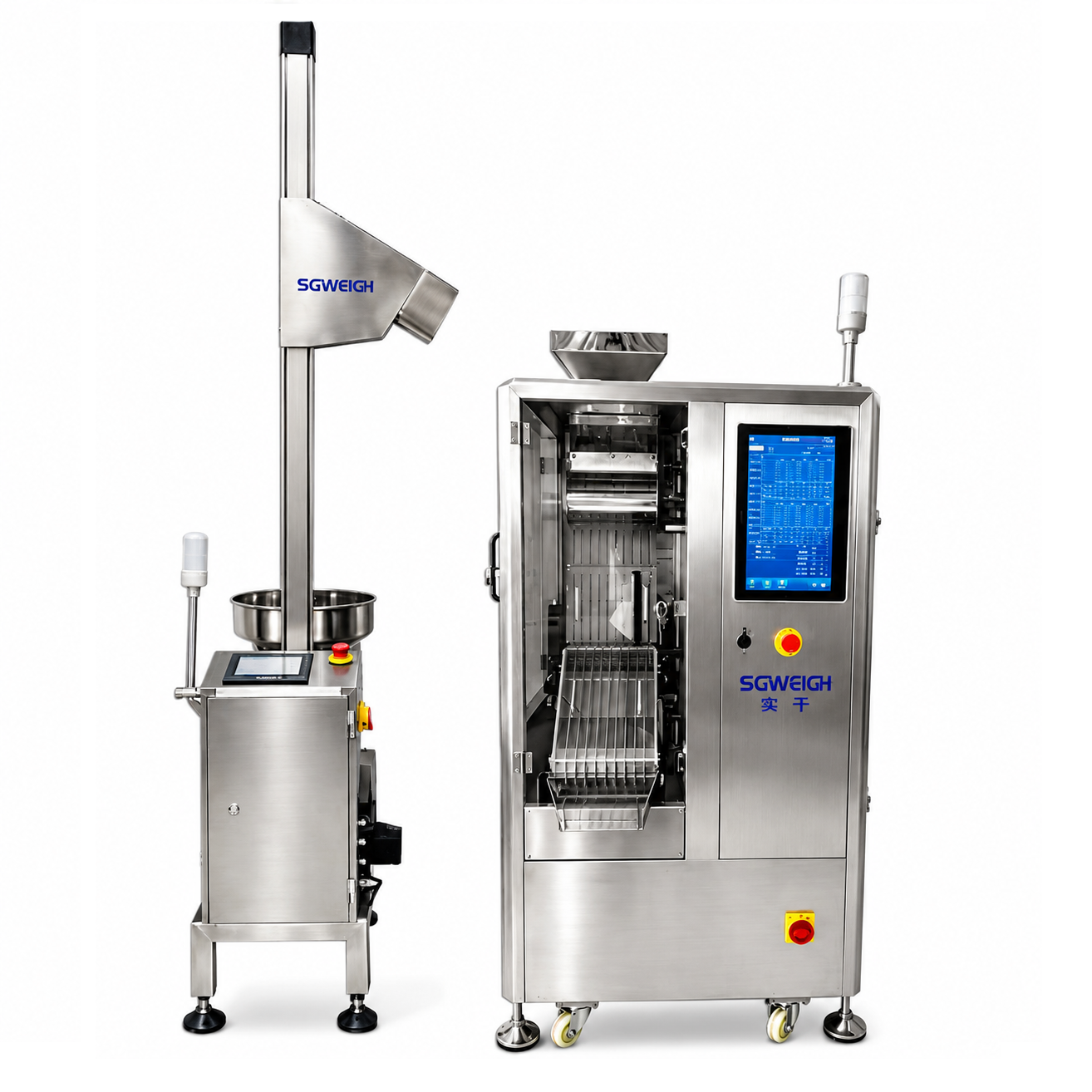

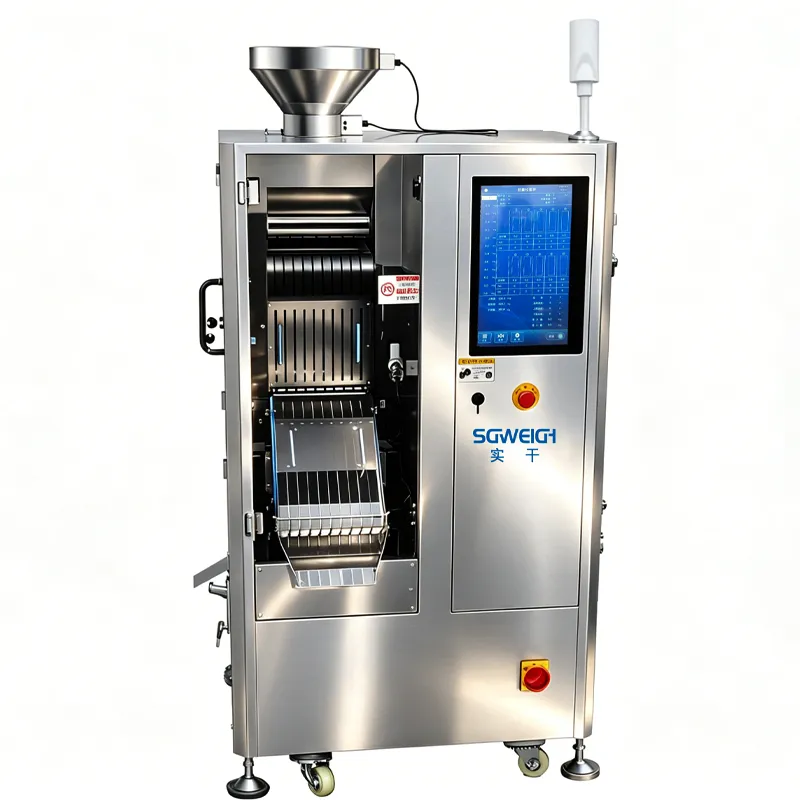

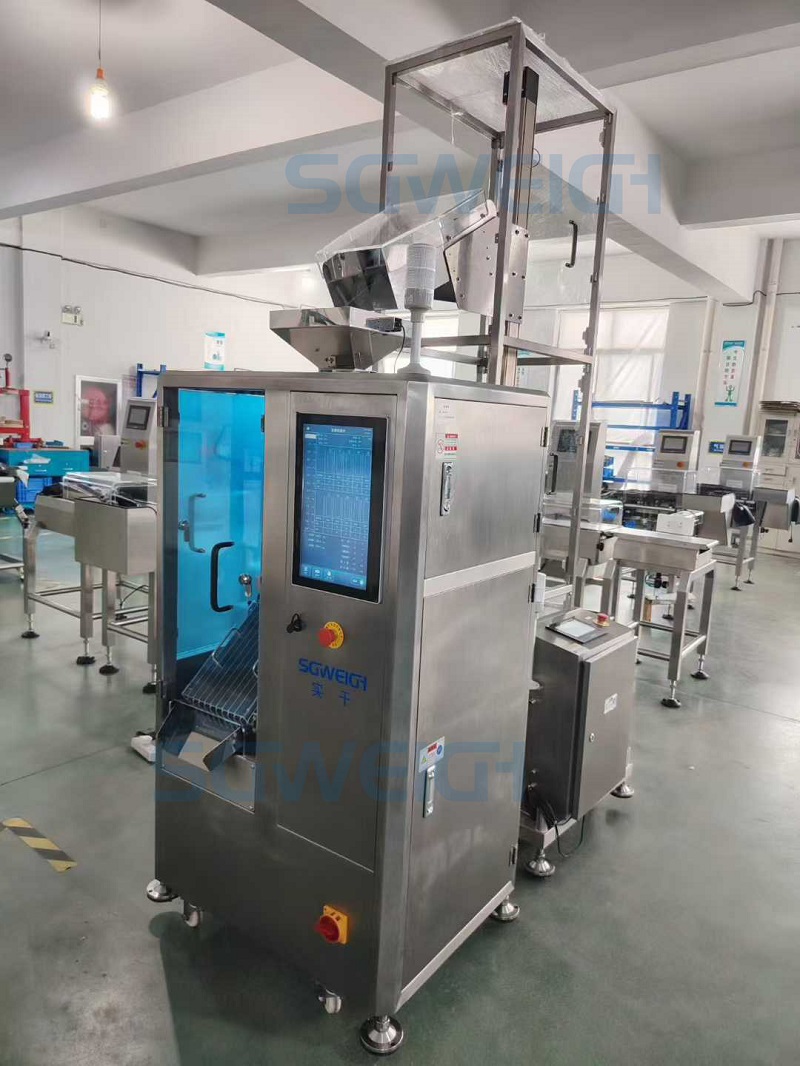

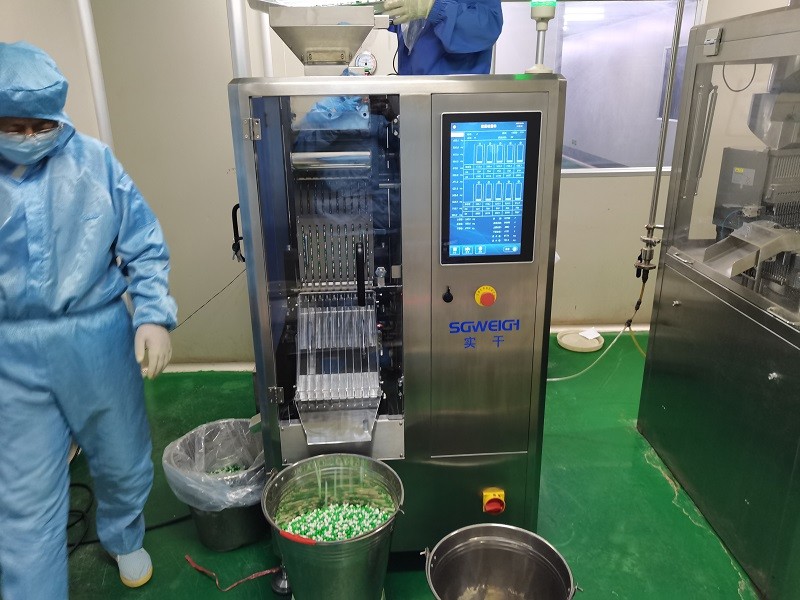

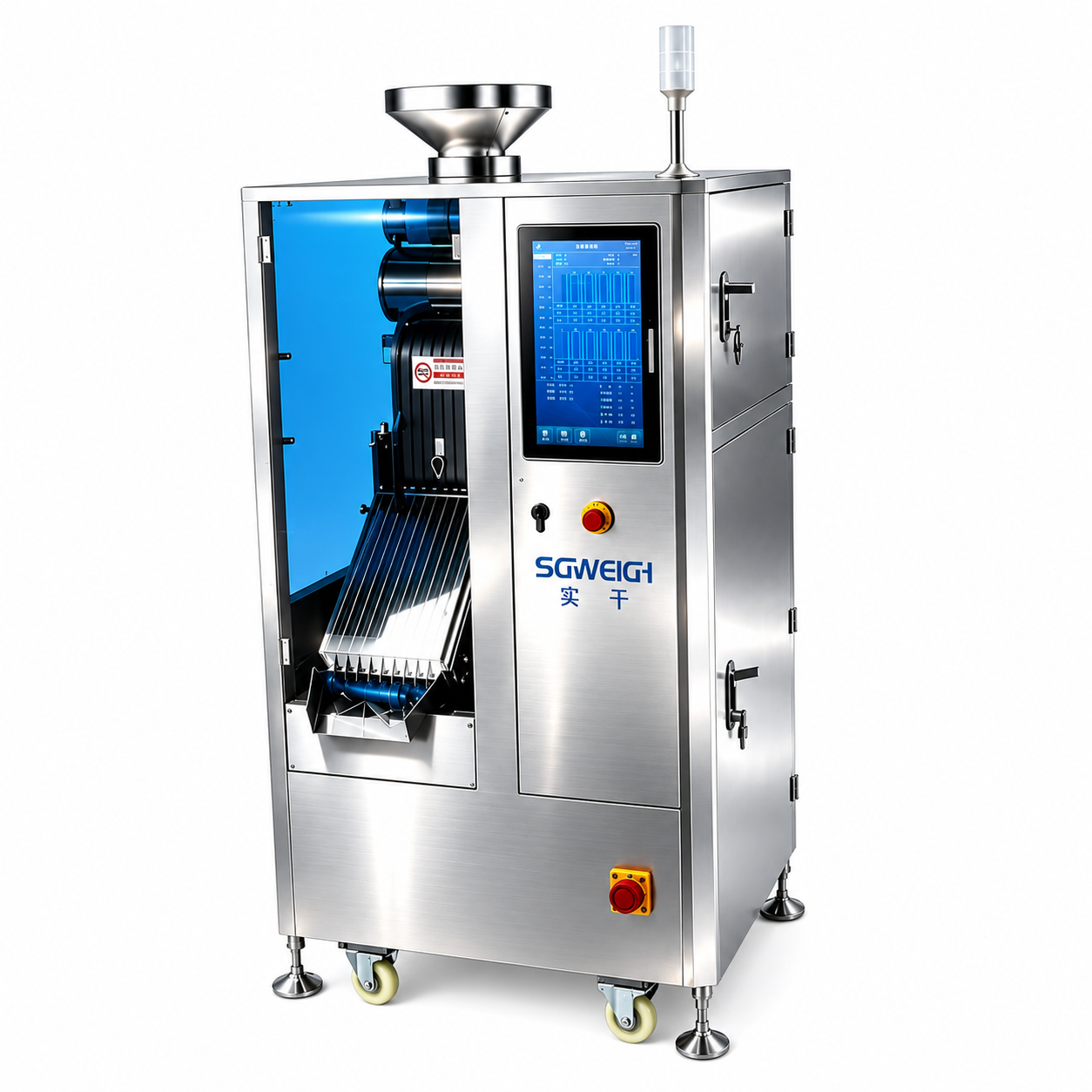

The High-Speed Capsule Checkweigher is designed for automatic, non-destructive weight inspection of individual capsules during continuous production. It weighs each capsule at high speed and high accuracy, identifies capsules that are outside the preset weight tolerance, and automatically rejects them from the production line.

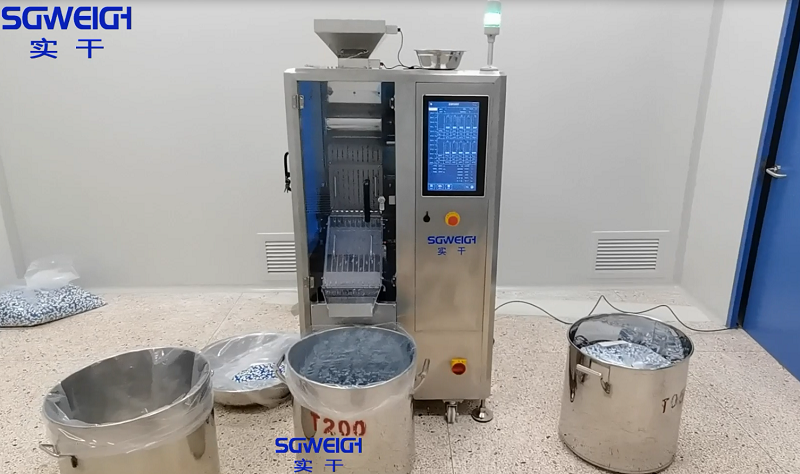

The Capsule Weight Inspection Machine can separate qualified and unqualified capsules into different collection channels, helping manufacturers maintain consistent capsule weight throughout the production process and reduce the risk of underweight or overweight products reaching the next production stage.
Type：SG-JN10
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :750,00 PCS/HR
Number of columns:10 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)
Weight of Machine :350kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
1. High‑speed individual capsule weighing for continuous production.

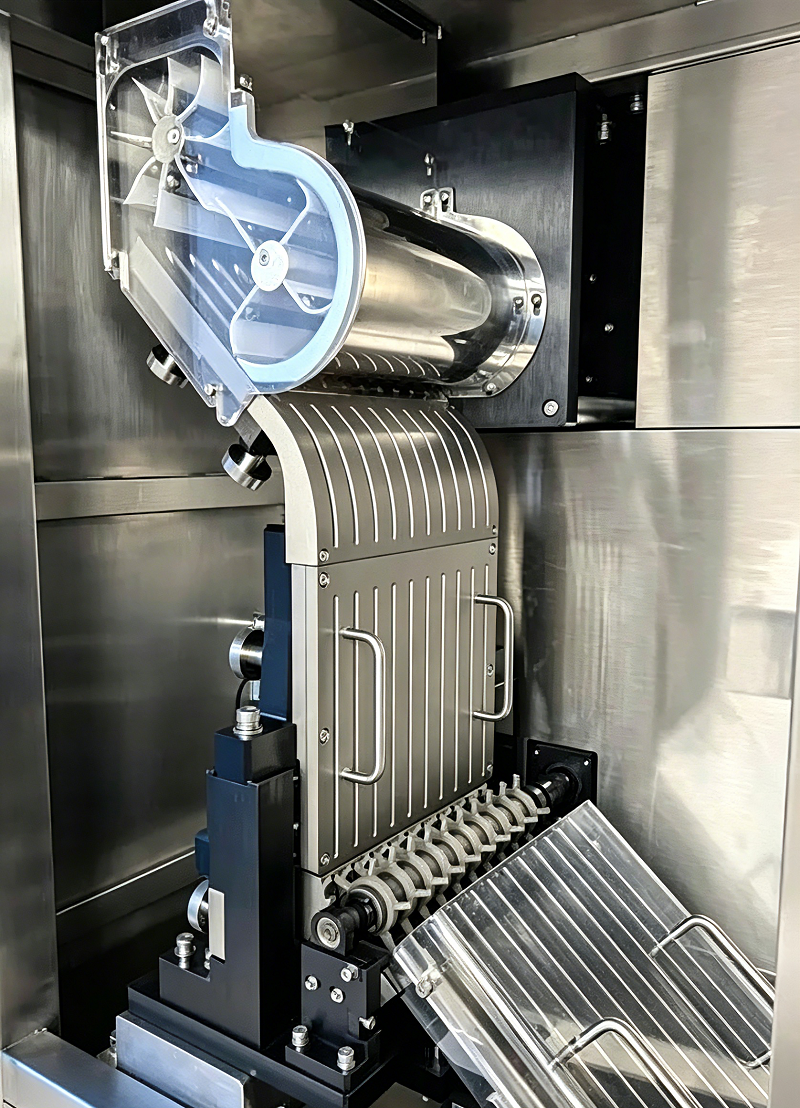

2. High‑precision micro‑weighing sensor for accurate weight measurement.
3. 100% capsule weight inspection without damaging the capsules.
4. Automatic rejection system for capsules outside the preset tolerance.
5. Separate collection of qualified and rejected capsules.
6. High‑speed PLC control system for stable and reliable operation.
7. User‑friendly HMI touchscreen for parameter setting and production monitoring.
8. Automatic statistics of qualified and rejected capsules.
9. Electronic data recording and parameter traceability.
10. Electronic signature and data management functions designed to support FDA 21 CFR Part 11 requirements.
11. Real‑time display of production data, weighing results and rejection statistics.
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
