SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W

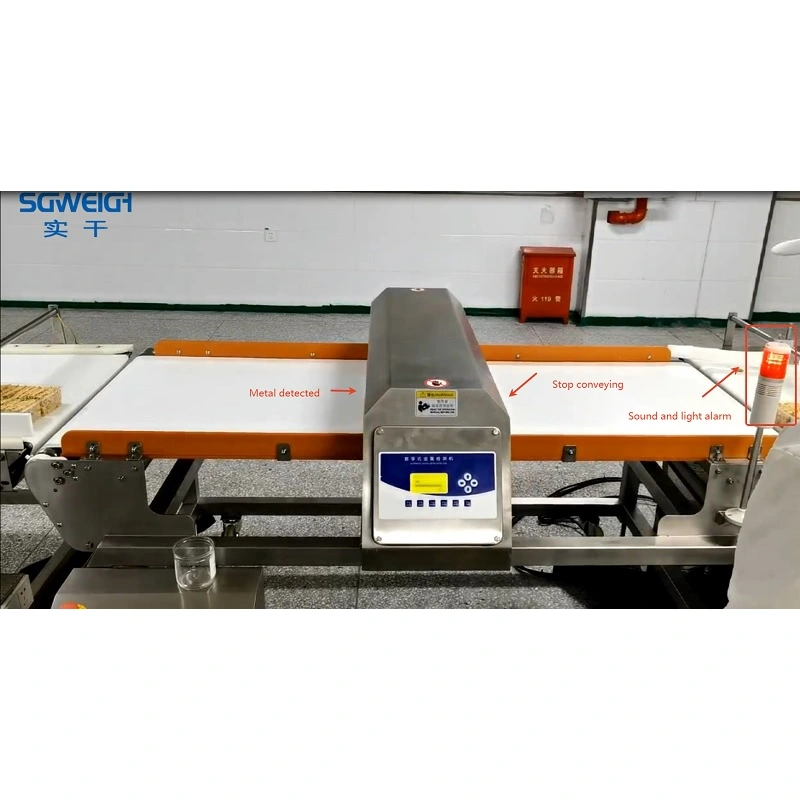

Alarm mode: metal detection, alarm belt stop or automatic removal
Dimensions: about L1500×W850×H950mm
1. Function: Set various functions and modes required, and set the self-test function.
2. Sensitivity: divided into gears, adjustable in increase and decrease (1-10 gears are adjustable).
3. The frequency shows the degree of external magnetic field interference.
4. The sensitivity of the frequency display is adjustable to reflect metal indicators.
5. When trace amounts of metal are detected, alarm or reject.
6. It has a self-checking function, which allows you to check whether the instrument is normal and avoid unnecessary maintenance.
7. The whole machine is made of industrial stainless steel, which is waterproof and rust-proof, hygienic and easy to clean.
8. Food grade conveyor belt, applicable temperature range -20C to 65C, also suitable for operations in refrigerated areas.
9. The combination of micro speakers and environmentally friendly motors will not cause failure in continuous use.
10. With automatic counting function. If it contains aluminum foil or film packaging, it is suitable for pre-packaging inspection.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
★Pre-sales
project design,performance introduction,technical agreement,contract signing,production testing and we can customized production according to your requirements.
★In-sales
we will provide you with the latest process in the product assembly,packing and transportation.
★Installation
◎We provide videos and instruction manual to show the process of installation.
◎We provide training for installation for free in our factory.
◎We can send technician to buyer's factory to install the machine and provide training service.
★After-sales
◎ For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.
◎We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts.
