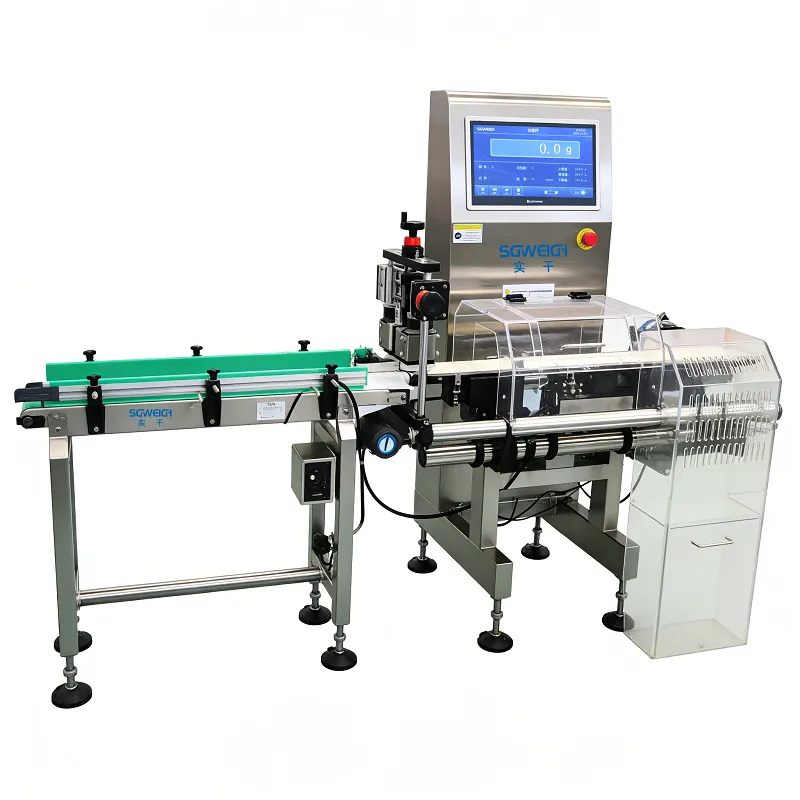

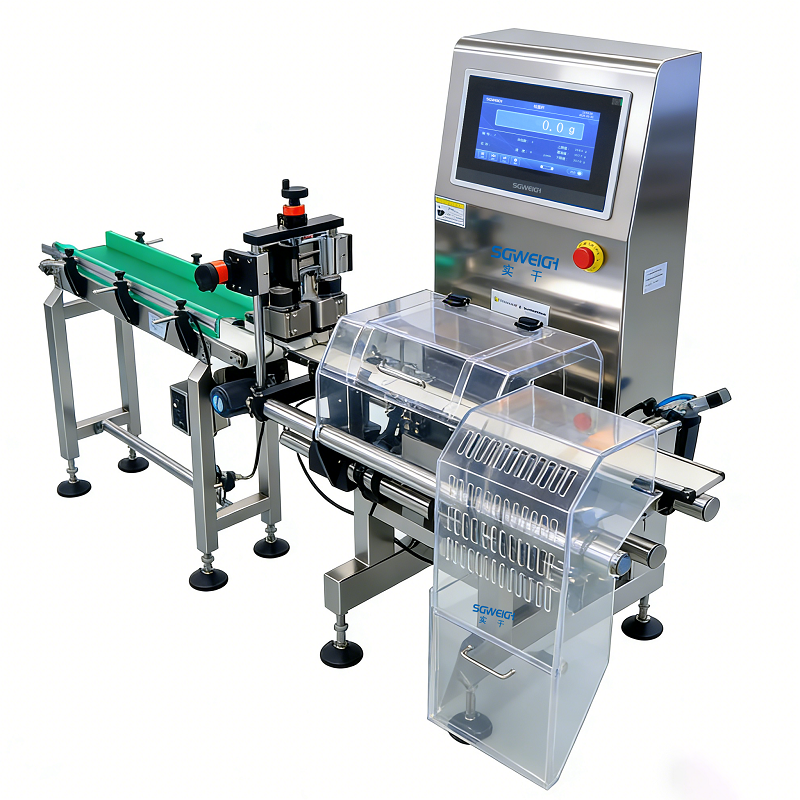

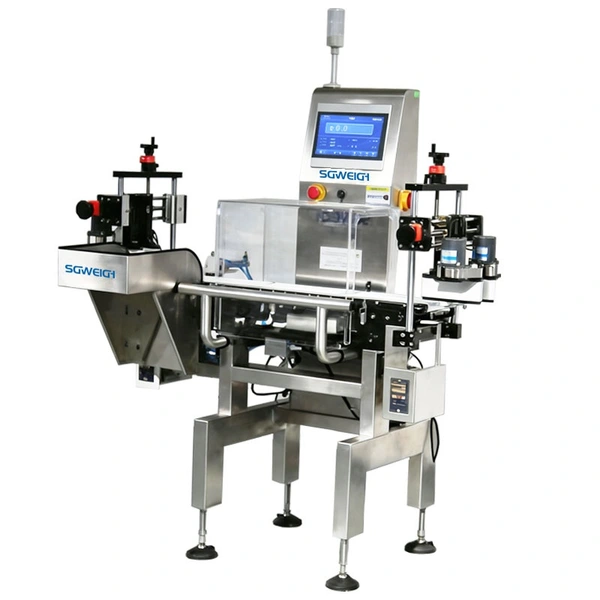

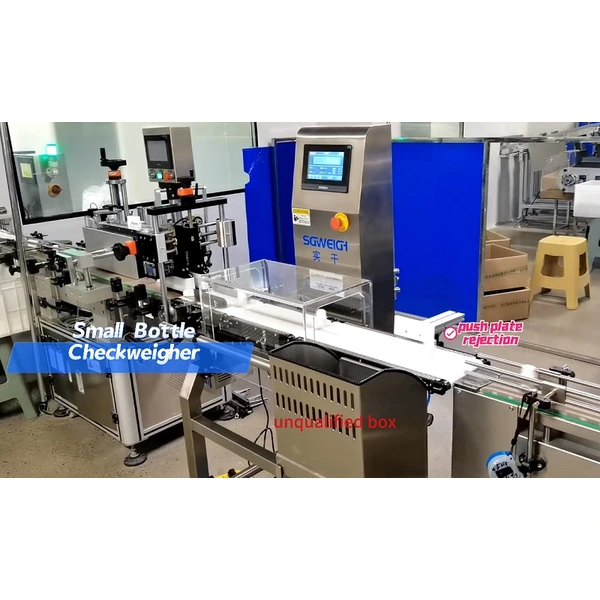

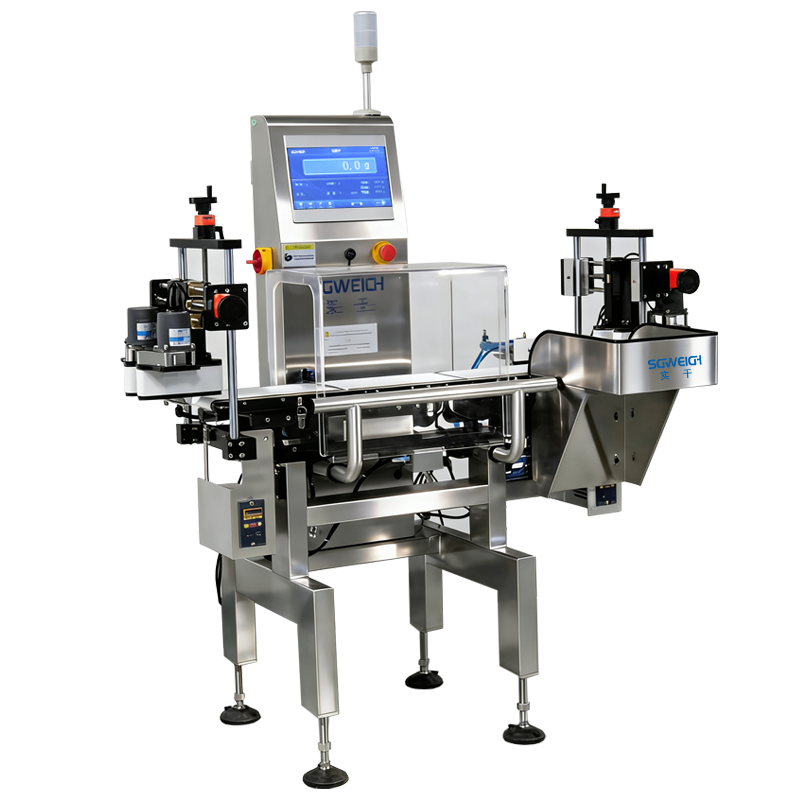

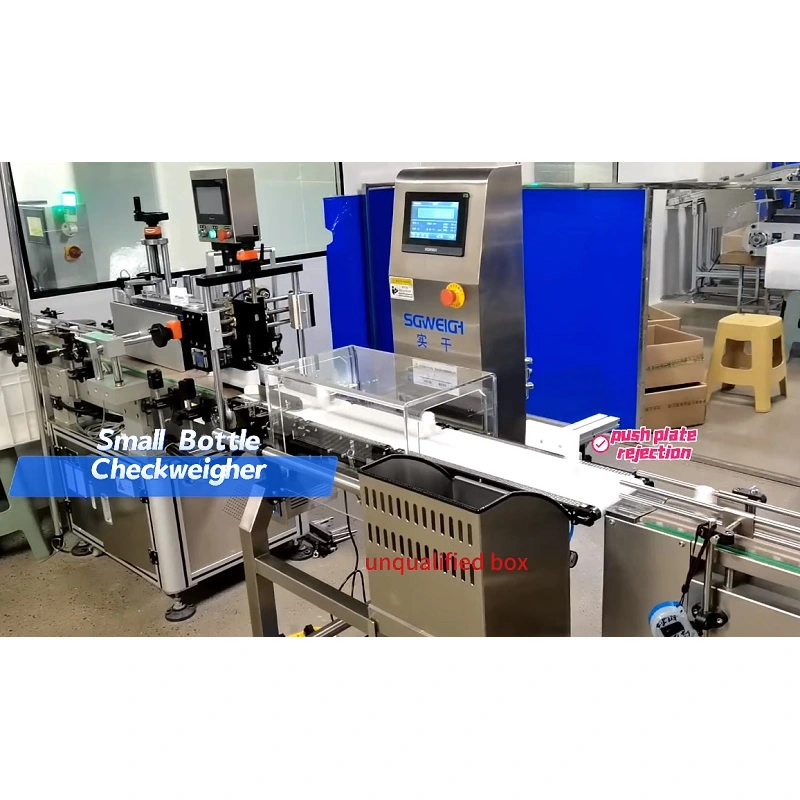

The Check Weigher for Eye Drop Bottles is a high-accuracy, in-line weight inspection system specifically designed for ophthalmic liquid products, including eye drops, nasal sprays, and small pharmaceutical liquid bottles. It ensures that every bottle meets net content and dosage accuracy requirements.
This Pharmaceutical Weight Inspection Solution is widely used in pharmaceutical filling and packaging lines to detect underfilled, overfilled, or missing-content bottles in real time, safeguarding product quality and regulatory compliance.
Type:SG-100HH
Weighing scope:2-300g
Restriction of product:L:100 W:100 H:2-150(mm)
Accuracy:±0.01g(Depends on products)
Division scale:0.01g
Highest speed:450pcs/min(Depends on products)
Belt width:100mm
Belt Speed:0-120m/min
Weight of machine:about 120kg
Power supply:AC220V±10%50HZ
Power:about 200W
Main material:SUS304
1. Ultra-High Weighing Accuracy
●High-resolution load cell ensures precise detection of minute weight deviations
●Ideal for small-volume eye drop bottles (5 ml – 20 ml)
●Detects underfill, overfill, empty or partially filled bottles
2. Designed for Pharmaceutical Bottles
●Optimized conveyor and bottle handling system to ensure stable bottle positioning

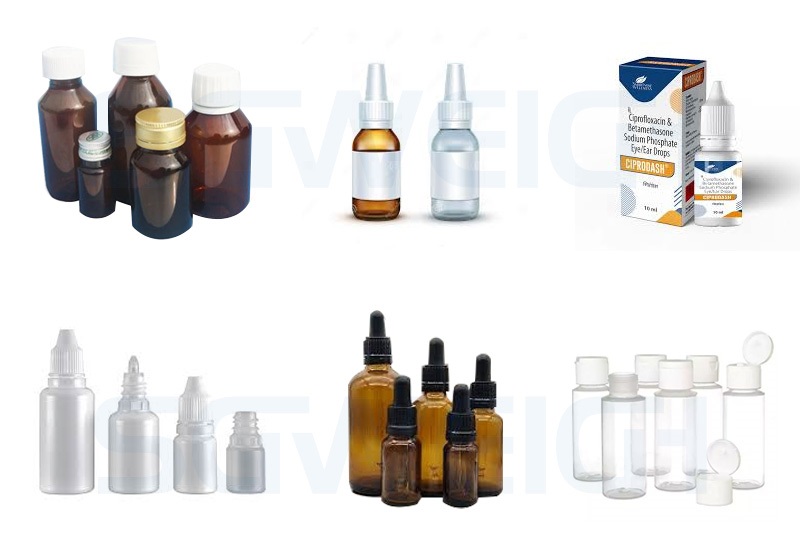

●Supports round, oval, and plastic eye drop bottles
●Smooth transfer prevents tipping or vibration during weighing
3. Seamless Integration with Filling Lines
●Easily integrates with eye drop filling, capping, labeling, and packaging machines
●Supports continuous in-line inspection without stopping production
●Adjustable speed to match different production capacities

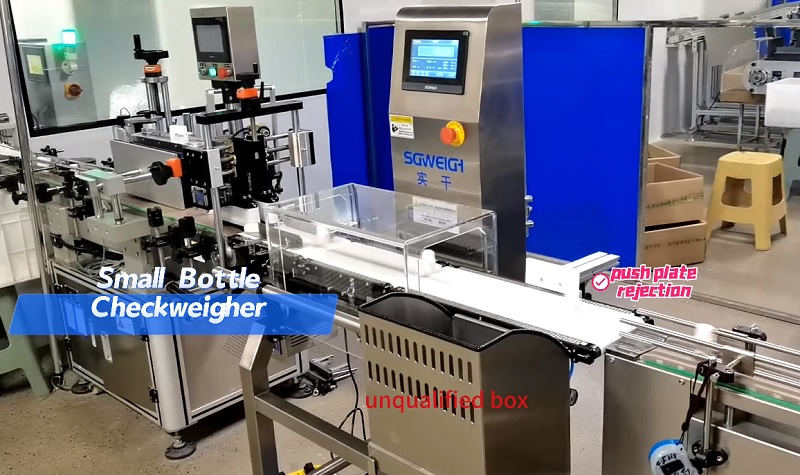

4. Automatic Rejection & Sorting
●Accurate reject mechanisms (pusher, air jet, or drop gate)
●Separates NG (non-conforming) bottles without damaging products
●Optional lockable reject bin for GMP compliance
5. GMP & Hygiene-Focused Design
●Full stainless steel pharmaceutical-grade construction
●Tool-free disassembly for easy cleaning and validation
●Meets GMP cleanroom and washdown requirements
6. Intelligent Control & Data Management
●Touchscreen HMI with multi-product recipe storage
●Real-time statistics: total count, reject count, deviation trends
●Optional data export for batch records and audit trails
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
