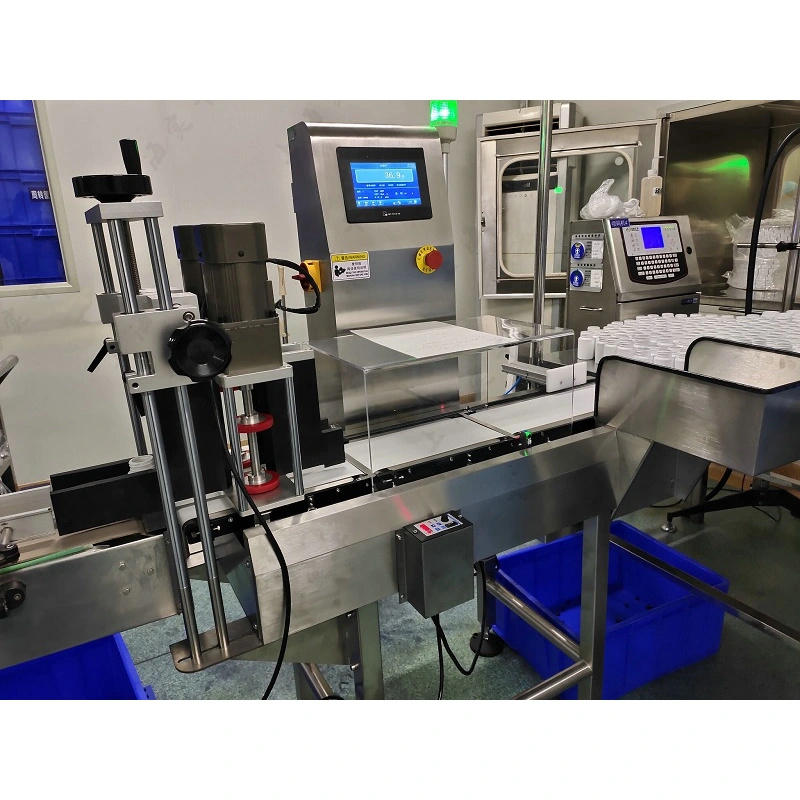

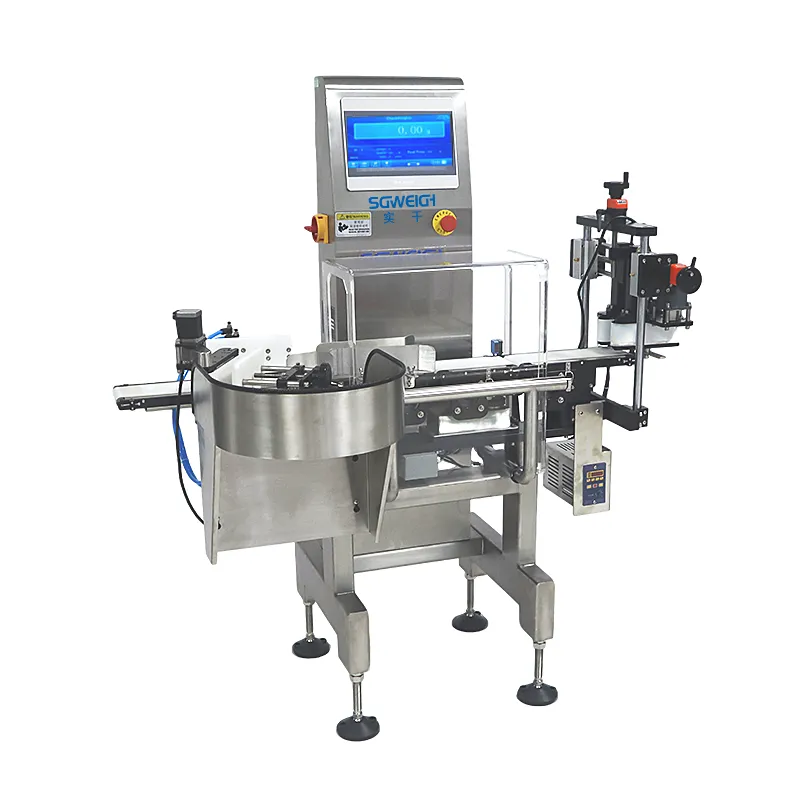

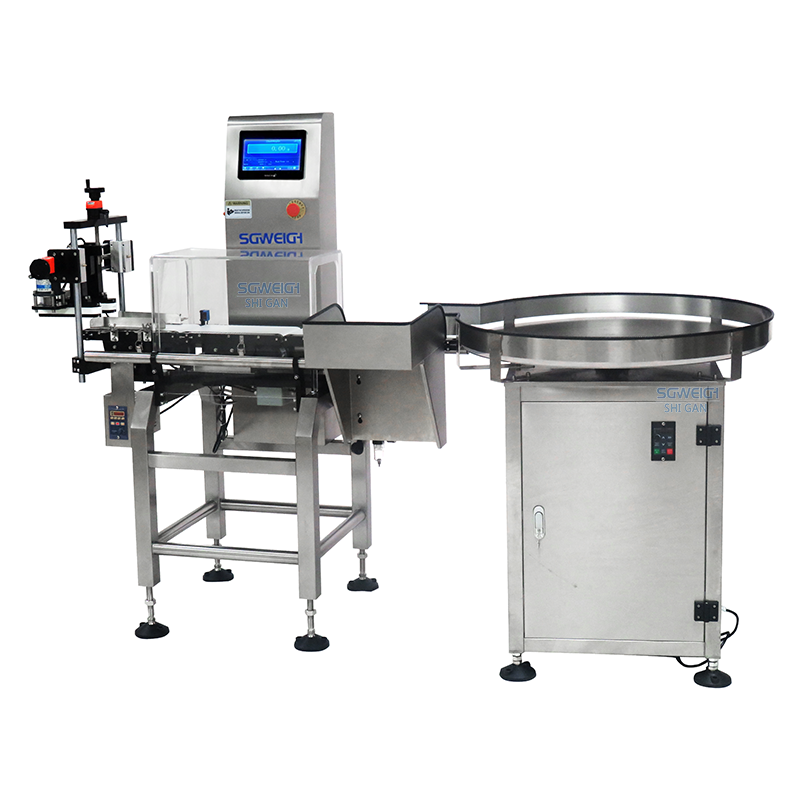

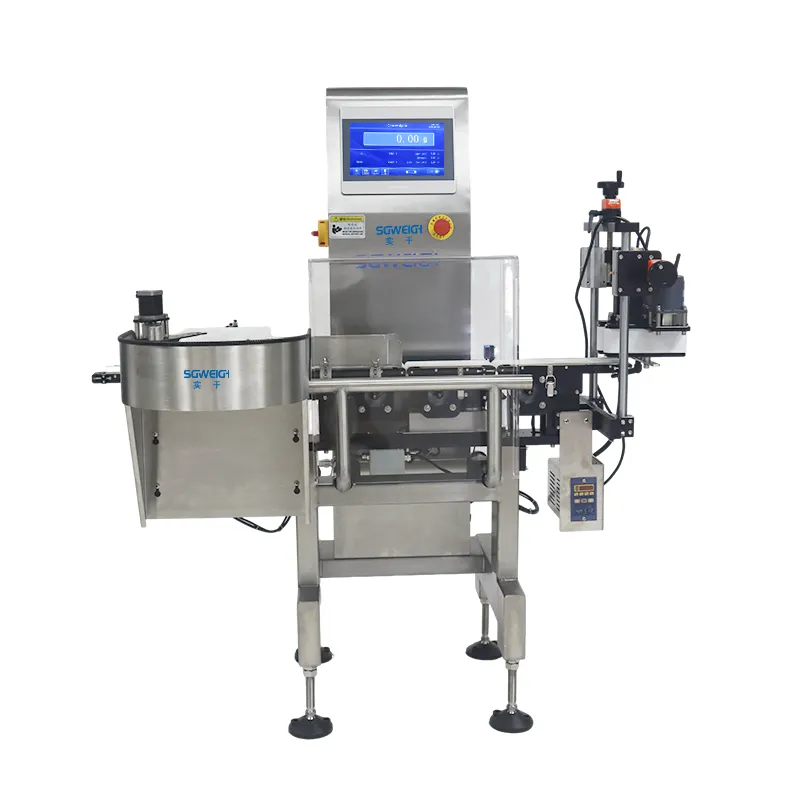

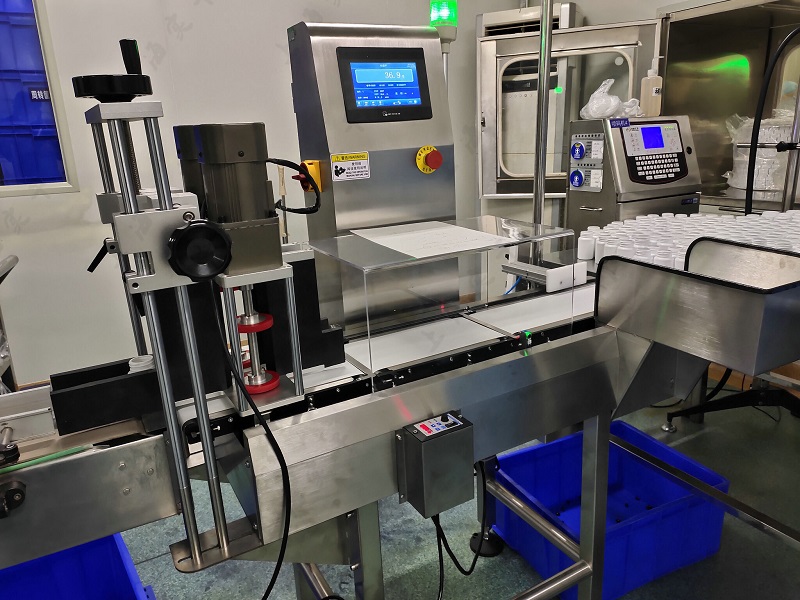

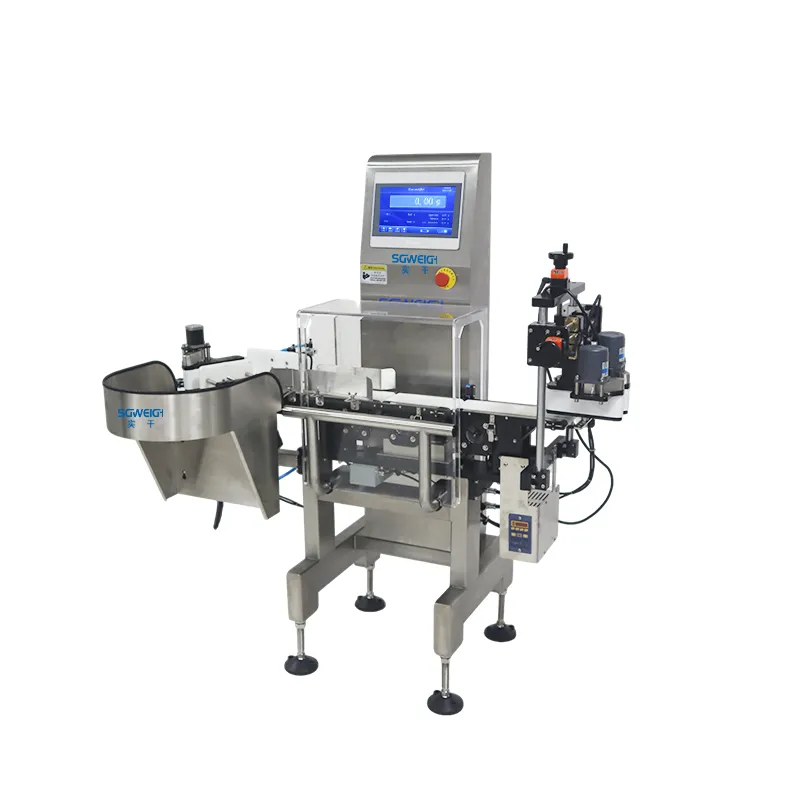

The Soft Drink Cans Bottles Dynamic Checkweigher is a high-precision inline weighing solution designed specifically for carbonated drinks, mineral water, juices, and other beverage products packaged in cans or bottles.Checkweigher for Beverage Factories provides continuous, non-stop weight inspection on high-speed production lines, ensuring that every unit meets regulatory filling standards and brand quality requirements.
Type:SG-100HH
Weighing scope:2-300g
Restriction of product:L:100 W:100 H:2-150(mm)
Accuracy:±0.01g(Depends on products)
Division scale:0.01g
Highest speed:450pcs/min(Depends on products)
Belt width:100mm
Belt Speed:0-120m/min
Weight of machine:about 120kg
Power supply:AC220V±10%50HZ
Power:about 200W
Main material:SUS304
1. High-Speed Dynamic Weighing
Designed specifically for high-speed beverage production lines using cans, glass bottles, and PET bottles.
Stable support for high-speed weighing of 30-200 pieces/minute.
Automatically identifies underweight, overweight, empty bottles, and missing fills.
2. Automatic Reject System
Offers multiple rejection methods depending on product type: air blowing, push rod, and flip-plate.
Ensuring accurate rejection of both lightweight aluminum cans and heavy bottles.
Rejection speed is synchronized with the conveyor cycle, avoiding mis-rejection or missed rejection.
3. Vibration-Resistant Construction
Optimized for the impact of carbonated beverage bubbles and production line vibration.
Utilizes a high-sensitivity weighing sensor + servo-driven conveyor structure.
Improves weighing stability under high-speed operation.
4. Multiple Specifications Quick Switching
Supports quick parameter changes for different bottle and can diameters.
One-click recipe recall via touchscreen.
Reduces downtime and improves production efficiency.
5. Data Recording and Traceability
Automatically stores weight data, statistical reports, and pass rates.
Supports data export via USB/Ethernet/RS485/OPC.
Meets traceability and quality audit requirements for food and beverage factories.
6. Food-Grade Structural Design
Entire machine constructed of SUS304/316 stainless steel, IP65 protection.
Resistant to sticky beverages, sugar, and humid environments.
Modular conveyor belt for easy disassembly and cleaning.
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
