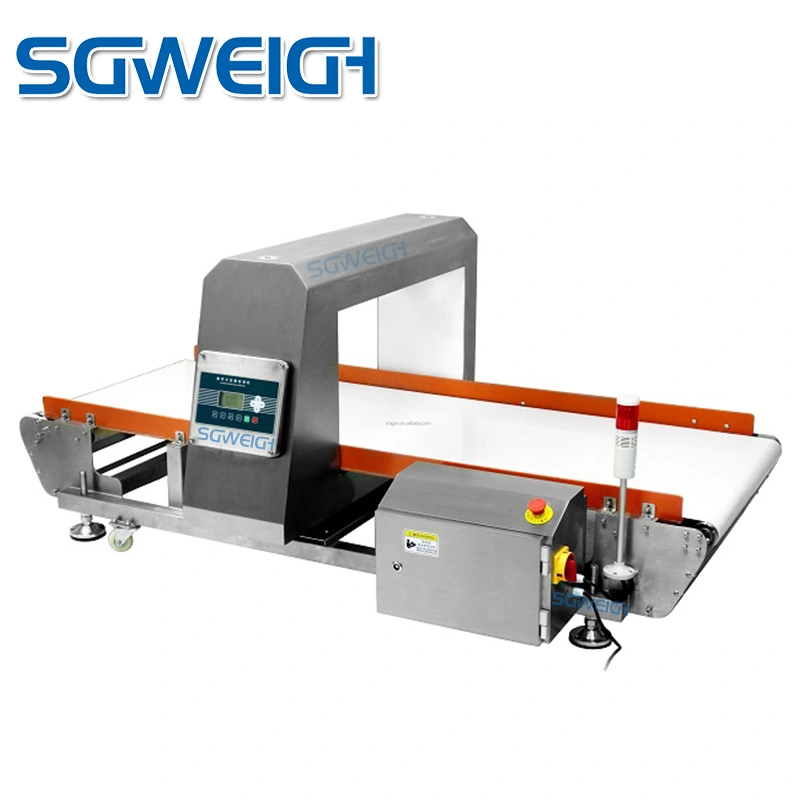

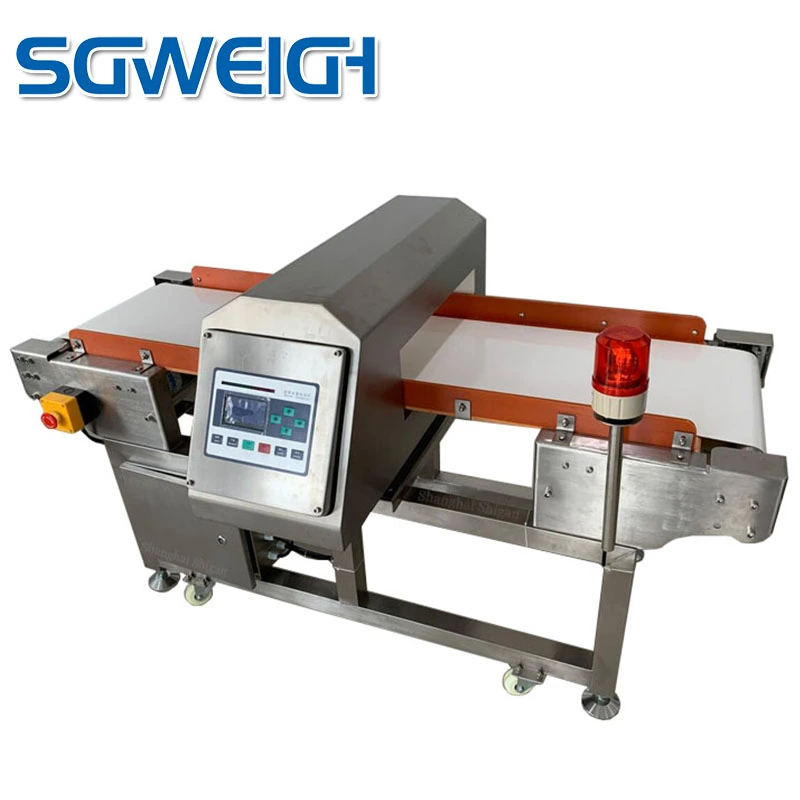

Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light
Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light
Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light
  • Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light
  • Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light
  • Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light

Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light

Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light has high detection sensitivity for metal foreign matter mixed in products, and can easily detect common metal impurities mixed in products.

Description

Product Summarize

Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light uses high-speed digital signal processing devices and intelligent algorithms to improve detection accuracy and stability.It has high detection sensitivity for metal foreign matter mixed in products, and can easily detect common metal impurities mixed in products.Welcome to consult for quotation information!


Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light

Product Parameter

Detection sensitivity: in empty state

H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm

H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm

H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm

H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm

Effective detection hole width: 150-1000mm customized according to requirements

Effective detection hole height: 80-500mm customized according to requirements

Maximum speed of conveyor belt: 25m/min

Conveyor belt material: food grade PU belt

Protection class: IP65

Display and operation mode: LED falt key input

Machine weight: about 120kg

Power requirements: AC220V 50HZ

Power: 200W

Alarm mode: metal detection, alarm belt stop or automatic removal

For reference only, please consult for details!

Contact us to recommend a product that is suitable for you!


Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light

Product Characteristics

1. The metal detector adopts a highly user-friendly and intelligent design and has an underlying self-learning function.

2. The metal detector can store 100 product parameters. Once the product parameters are set, there is no need to adjust them again.

3. The metal detector adopts modular design and installation, which is convenient for disassembly and assembly, easy maintenance and low maintenance cost.

4. It can be customized according to the size, weight and characteristics of the detection product to achieve the best detection sensitivity.

5. The rejection system and control system can be customized according to the characteristics of the production line to improve production efficiency.

6. The detection window is large, and the entire package can be inspected or single pieces can be inspected to meet different needs.


Customized Digital Intelligent Technology Metal Detector with Automatic Alarm Light


Specific Application




Company Profile


about us.jpg


Customer Visit




Exhibition



Packaging&Shipping

1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.

2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.

Packing Detail:

1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
