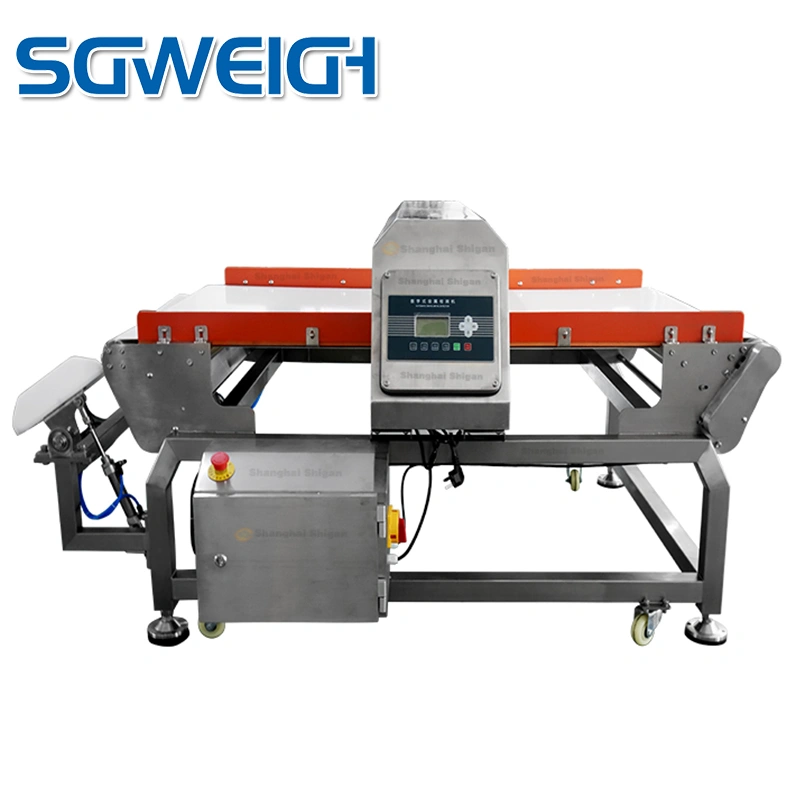

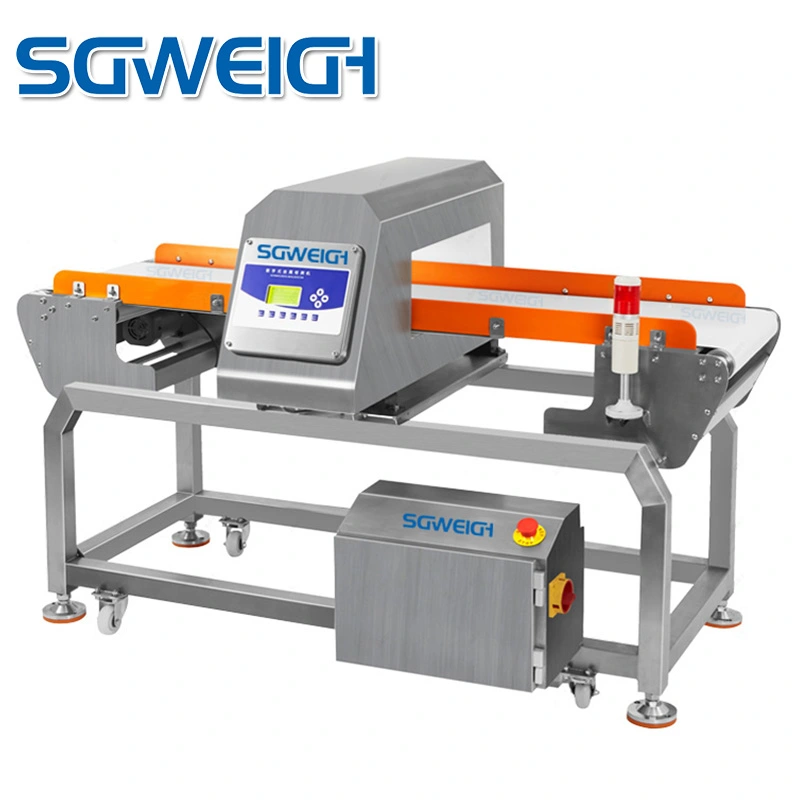

Industrial High Accuracy Bulk Puffed Food Conveyor Belt Metal Detector Machine is used to detect various metal impurities such as metal shavings, broken needles, iron wire, lead, copper, aluminum, tin, etc. that are mixed or lost in raw materials or products.Mainly for online inspection of finished products and semi-finished products, providing final inspection before shipment.
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1.Safeguard processing and packaging lines
2.Eliminate harmful metal intrusions
3.Maintain the highest quality product
4.Prevent damage to process equipment
5.Eliminate production downtime and costly maintenance
6.Develop automated and efficient quality control processes
7.Meet quality requirements and prevent product recall
8.Protect your brand and preserve your reputation
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
