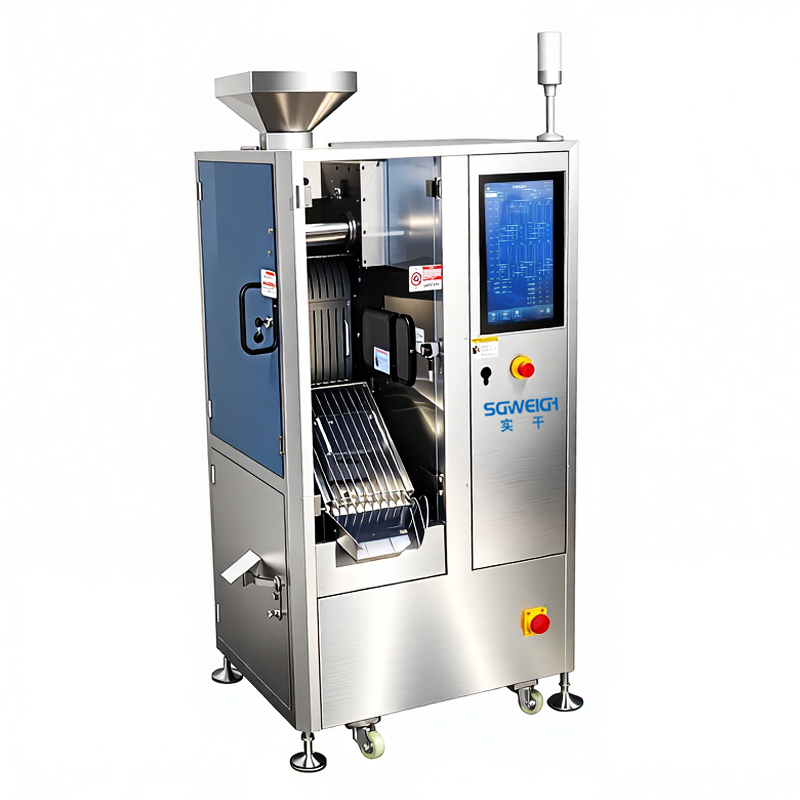

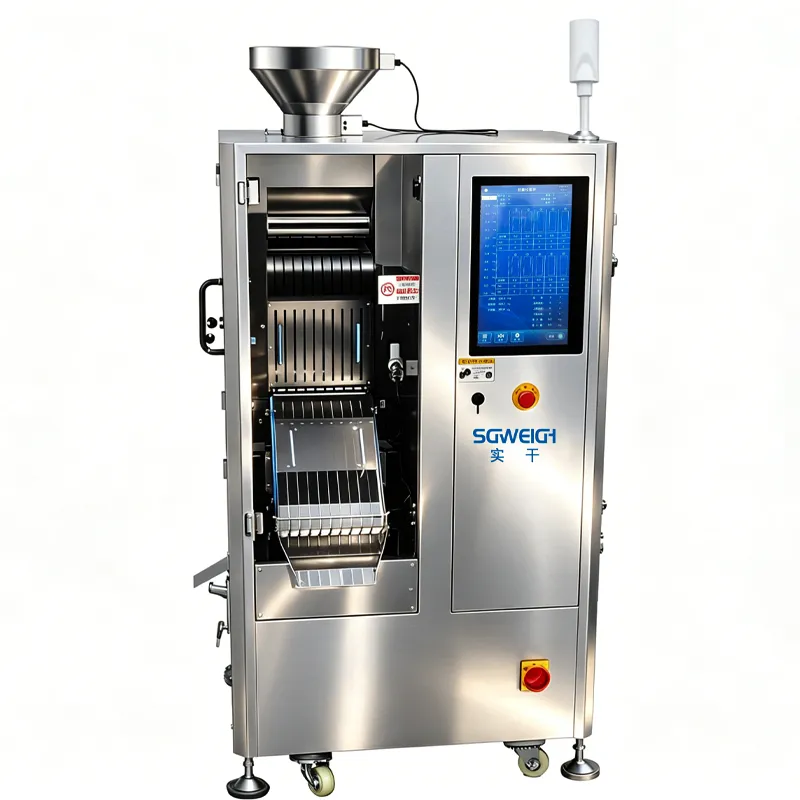

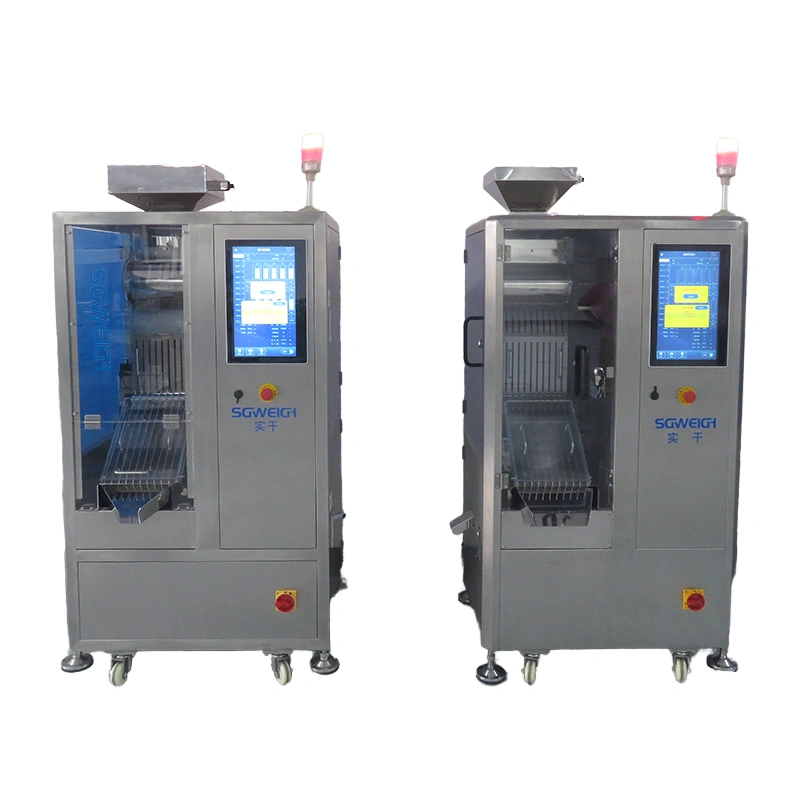

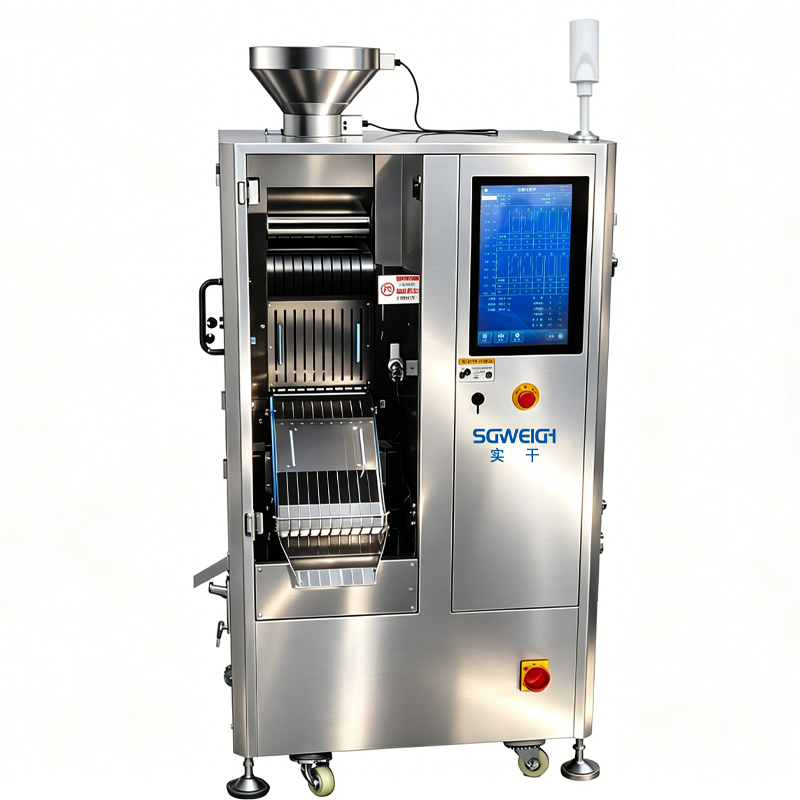

A 10-Lane Capsule Checkweigher is a high-speed pharmaceutical inspection system designed for 100% capsule weight verification in capsule production lines. Using ten independent weighing channels and high-precision load cells, the system automatically checks each capsule’s weight, identifies underweight or overweight products, and removes defective capsules in real time.
Advanced models can achieve weighing accuracy of up to ±0.5 mg and throughput up to 75,000 capsules per hour, making them ideal for large-scale capsule production.
| Type | SG-CT10 |
Weighing scope | 5-2000mg |
Display scale | 0.1mg |
Highest sorting accuracy | ±0.5mg |
Product specification | Capsule-00#-5# (Other sizes or shapes subject to testing) |
Highest sorting ability | 75,000 PCS/HR |
| Number of columns | 10 Columns |
Power supply | AC-220V±10%, 50HZ |
Compressed air | 0.3-0.9Mpa |
Shell material | SUS304/316 |
1.High Precision: Can detect microgram- to milligram-level deviations (±0.5 mg depending on product and speed).
2.High Speed: Supports up to thousands of pieces per minute without compromising accuracy.

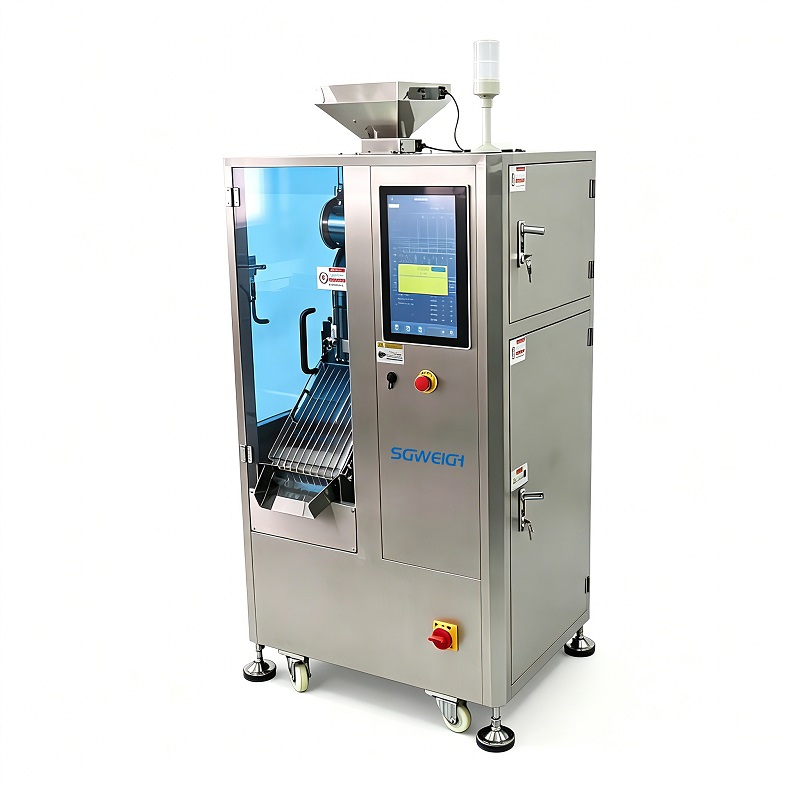

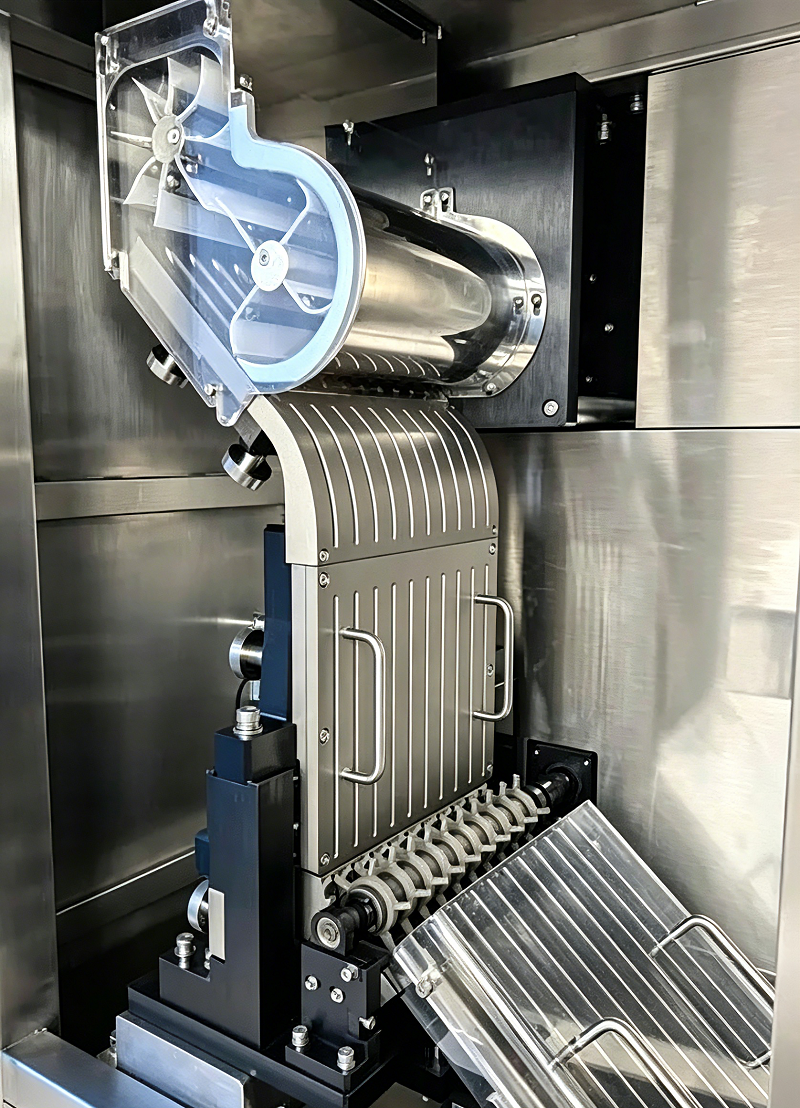

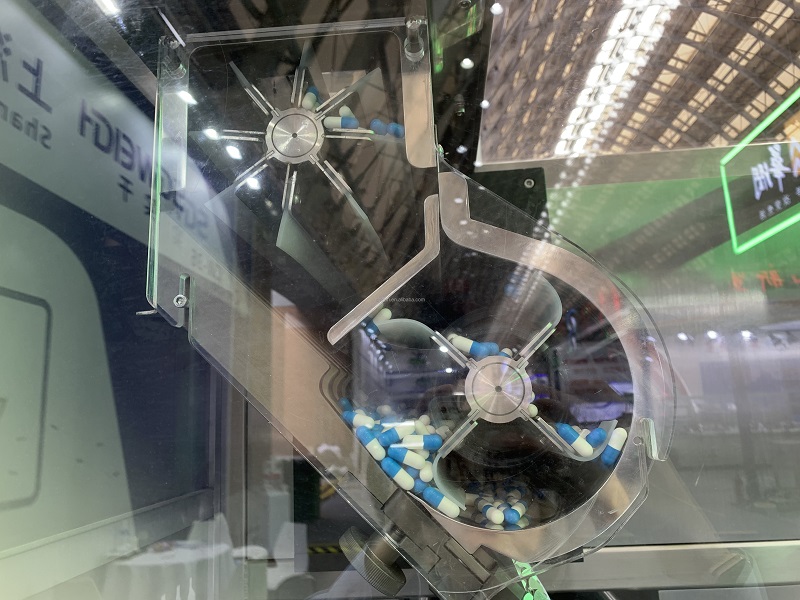

3.Automatic Rejection: The underweight, overweight or empty capsules are rejected by the flip mechanism.
5. Multi-Size Capsule Compatibility: Suitable for various capsule sizes, including empty and filled capsules.
5.Compliance: Meets FDA, GMP, and 21 CFR Part 11 standards for data integrity.
6.Data Recording: Stores weight statistics, batch reports, and provides traceability for audits.
7.Clean Design: Stainless steel construction, easy to sanitize, suitable for cleanroom environments.

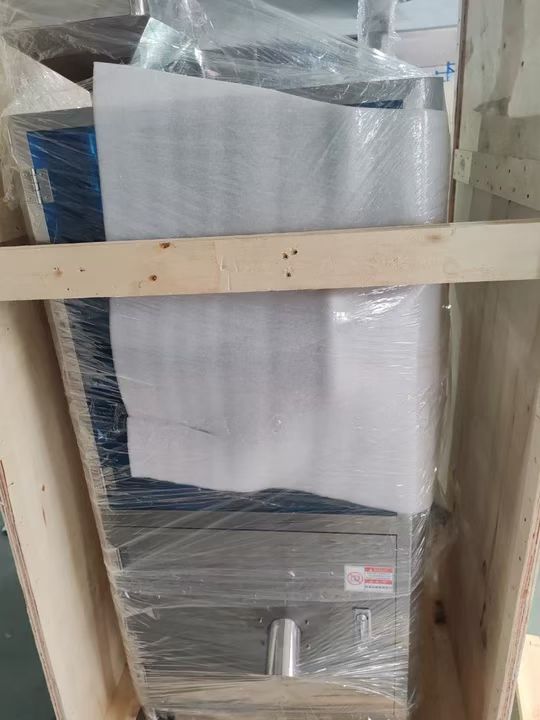

Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
