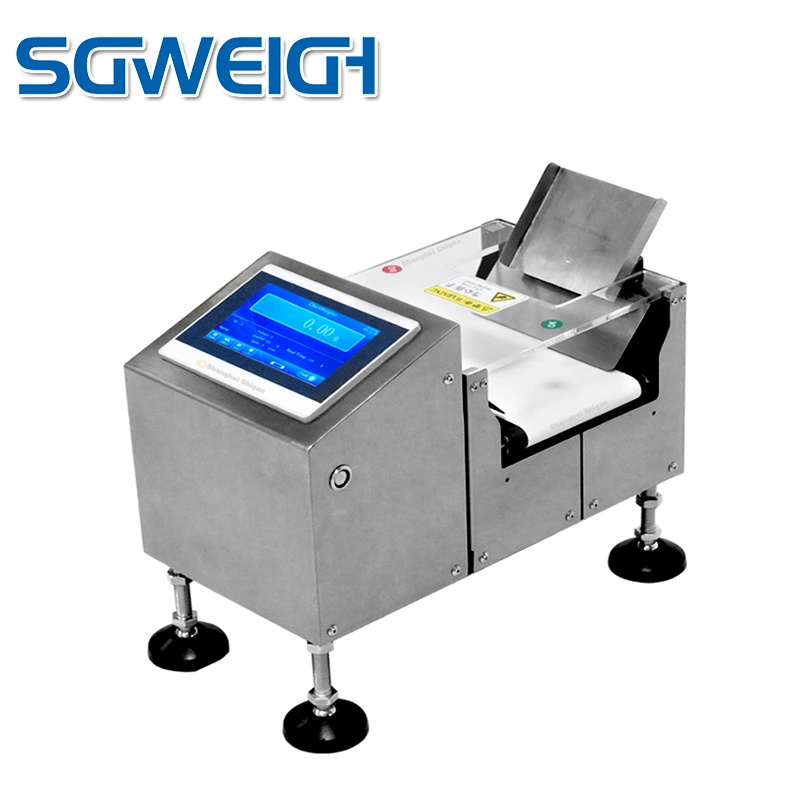

SG-100LR 2-300g Mini Dynamic Precision Customized Check Weigher Machine is designed for fully automated packaging lines, when find the overweight and ultra-light products the conveyor belt will stop and alarm, the screen will display the weight. If you are interested in Left And Right Weighing Sorting Machine,please contact us !
Model:SG-100LR （CUSTOMIZED）
Weighing Capacity:2-300g (or custom-made)
Minimum Scale:0.01g
Conveyor Speed:0～90m/min (or custom-made)
Max Speed:60 pcs/min
Weighing Belt Size:L 200mm*W100mm (or custom-made)
Power:AC220V±10% 50Hz(60Hz)
Display:inch Touch Screen
Material:304 stainless steel surface polishing
Language:Chinese / English
Protection Glass:IP65
Rejection Mode:Swing Arm; Pusher; Air Blow; Flap Gate (Optional or Customzied)
Remark:Provide Customization to Your Specifications, as Per Your Real Applications
◪ EASY:LCD touch screen display, Chinese and English interface.
◪ PRECISON:High-precision sensor with high detection accuracy and fast detection speed.
◪ REAL TIME:The graph shows the statistical distribution of the sorting results and grasps the sorting dynamics in real time.
◪ MEMORY:100 kinds of product sorting parameters can be preset, and different products can be quickly switched.
◪ ACCURACY:The photoelectric check weighing trigger method is adopted to effectively improve the accuracy of the equipment.
◪ REMOVE:Multiple removal methods are optional, which can remove overweight or underweight products.
It is widely applied in various industries:
● All manner of small packaged products
● Snack foods
● Candy and confectionery
● Pharmaceutical products

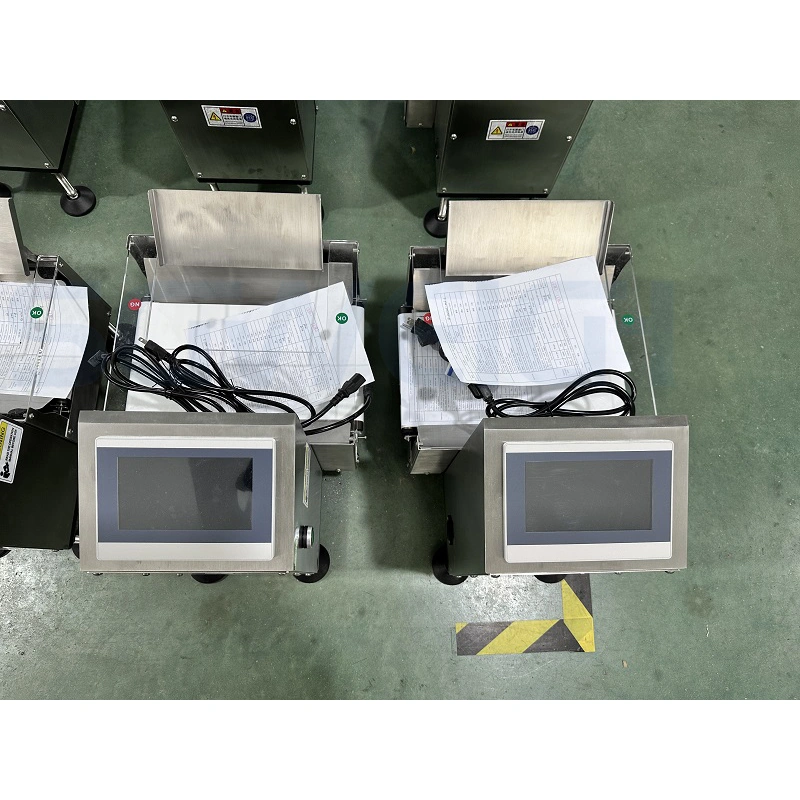

1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
