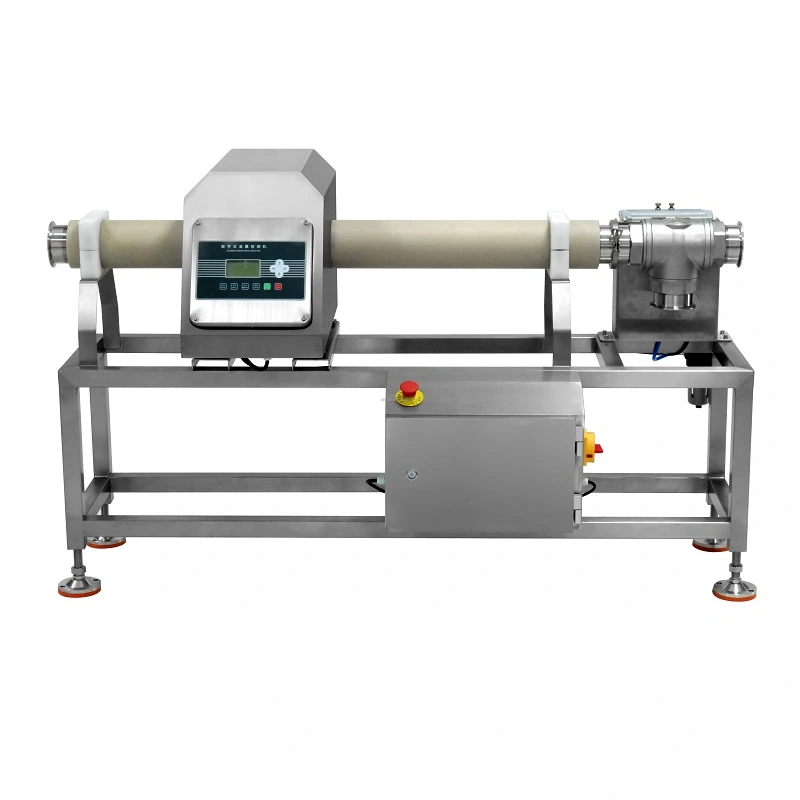

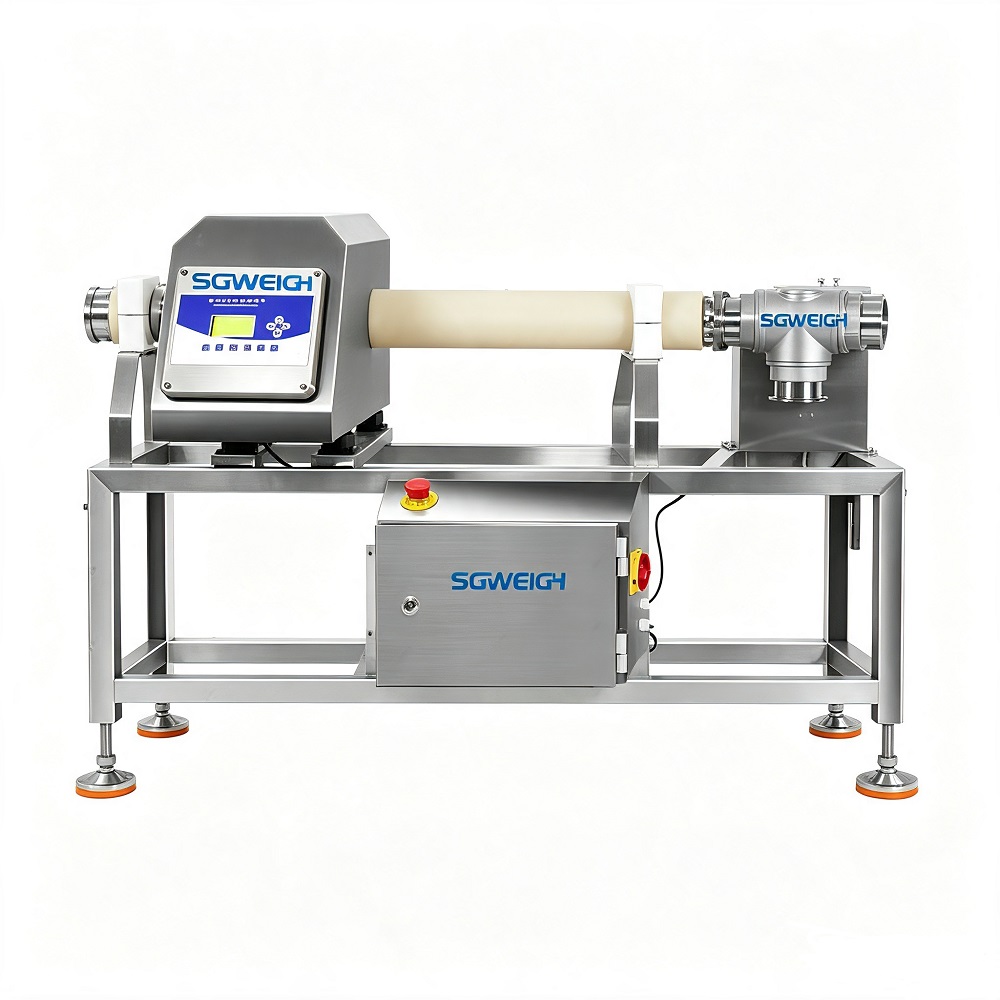

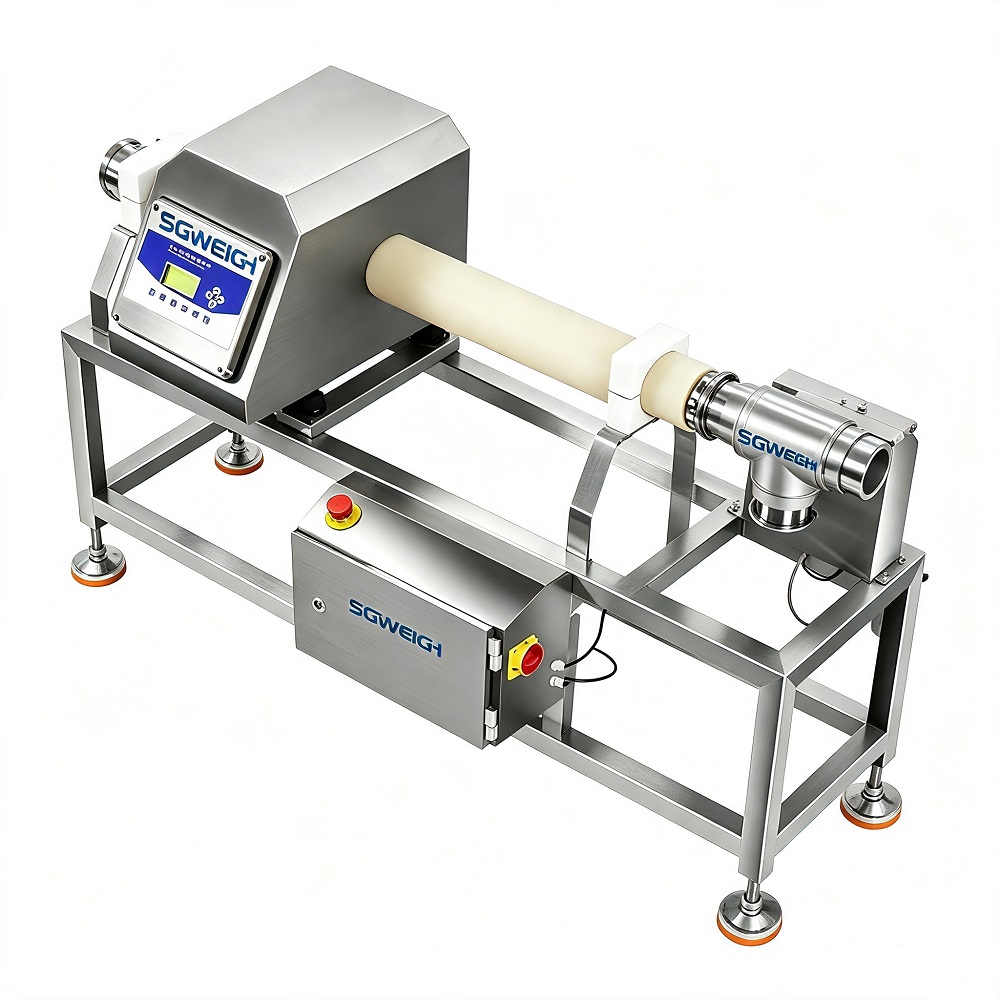

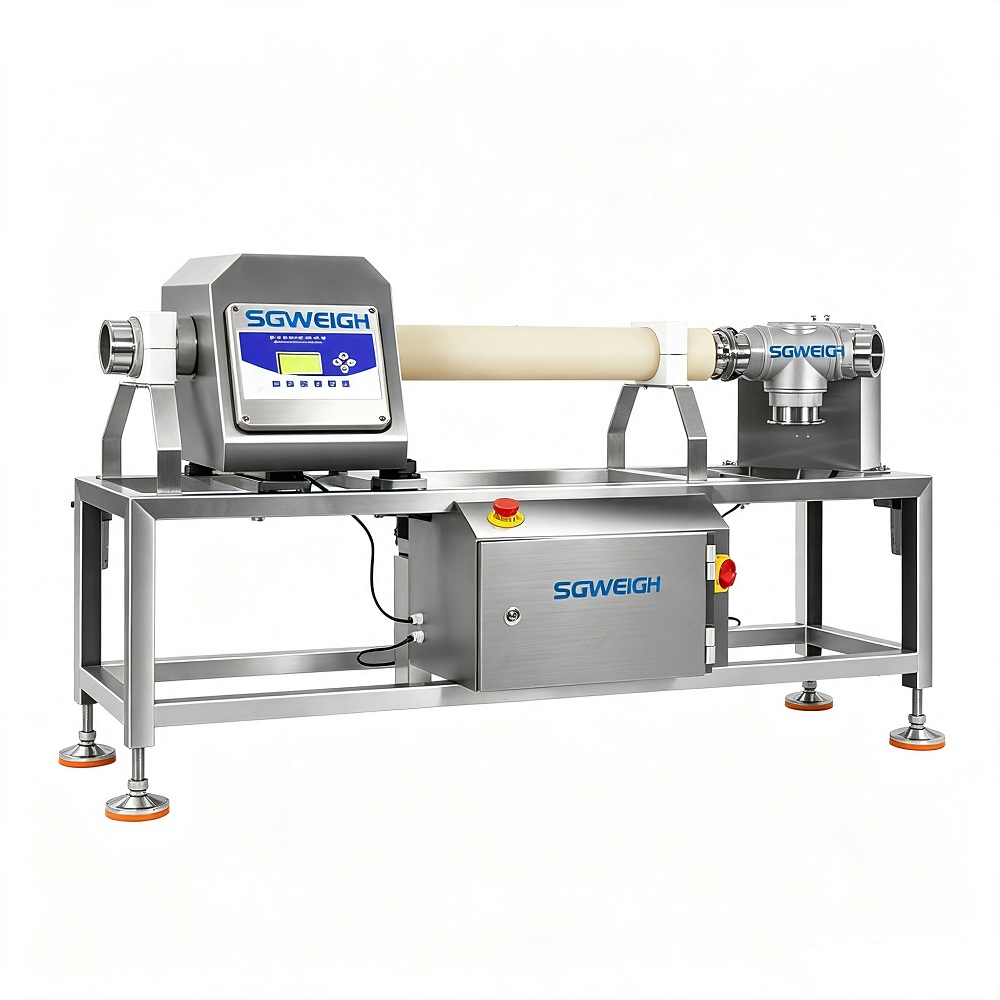

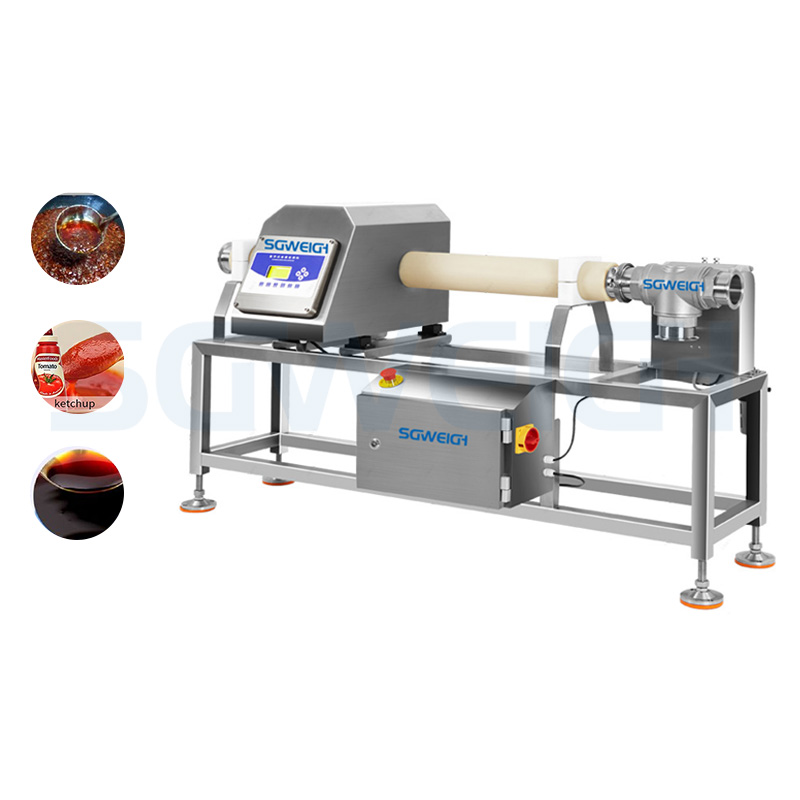

SG-ML80 Liquid/Powder Pipeline Metal Detector is a specialized device designed to detect and locate metal contaminants in liquid pipelines.Pipeline Metal Detector are crucial in industries such as food and beverage, pharmaceuticals, chemicals, and oil and gas, where the presence of metal contaminants in liquids can have serious consequences.Welcome to consult for quotation information!
Model: SG-ML80/SG-ML100/SG-ML150/SG-ML200
Tube inner diameter: 80/100/150/200
Detection sensitivity: Fe (Φ)-0.6/0.8/1.0/1.0
SUS304 (Φ): 1.2/1.5/1.5/2.0
Pipeline flow (t/h): 2/4/8/15
Machine weight: 120kg/140kg/160kg/180kg
Power supply: AC220V (optional)
Product preset quantity: 100 kinds

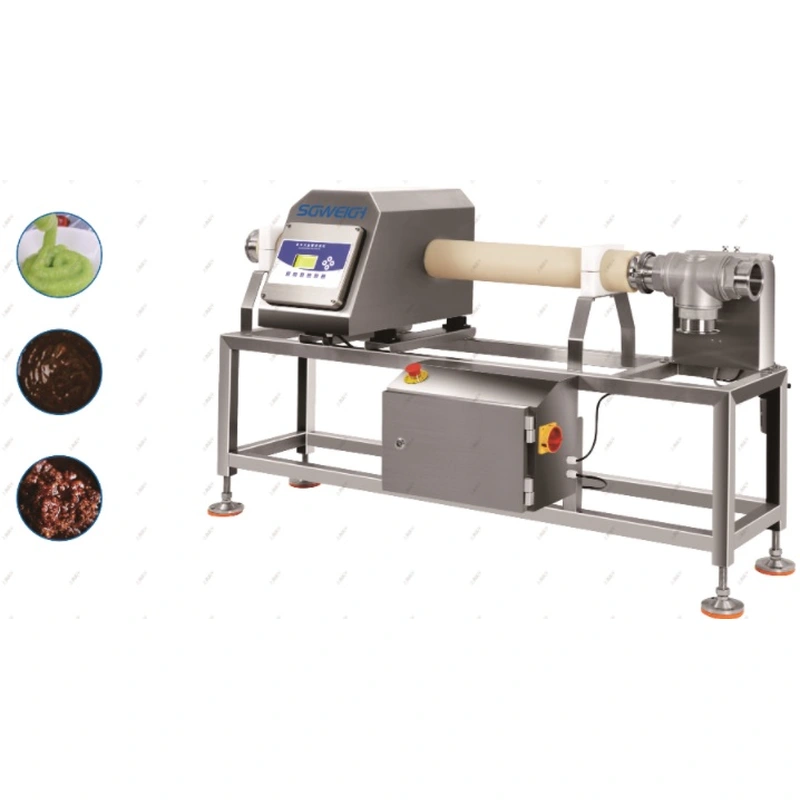

Detected product form: powder, small particles, liquid, paste

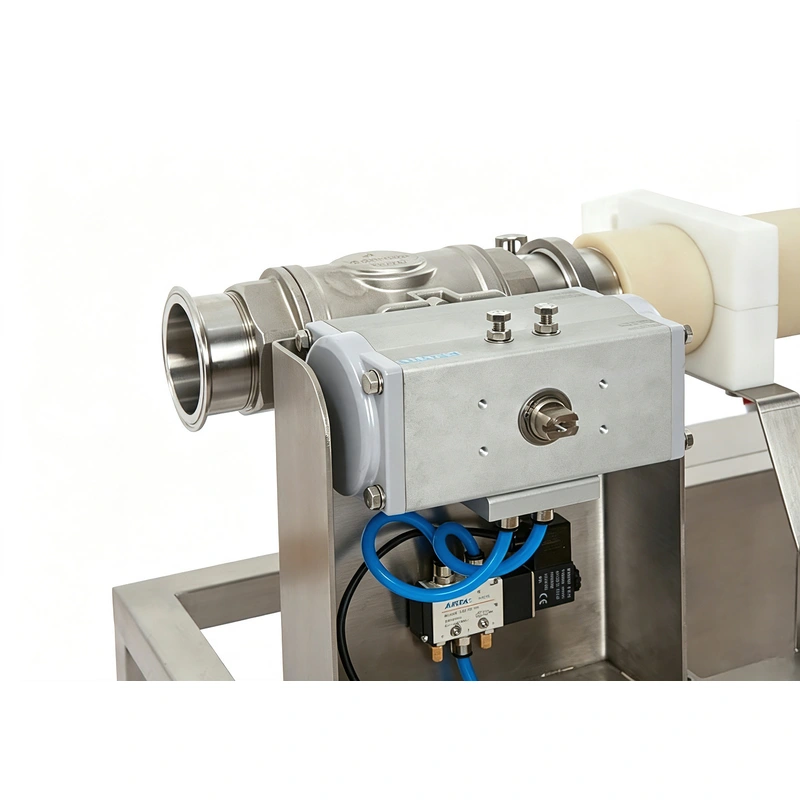

Air source requirement: ≥0.5MPA

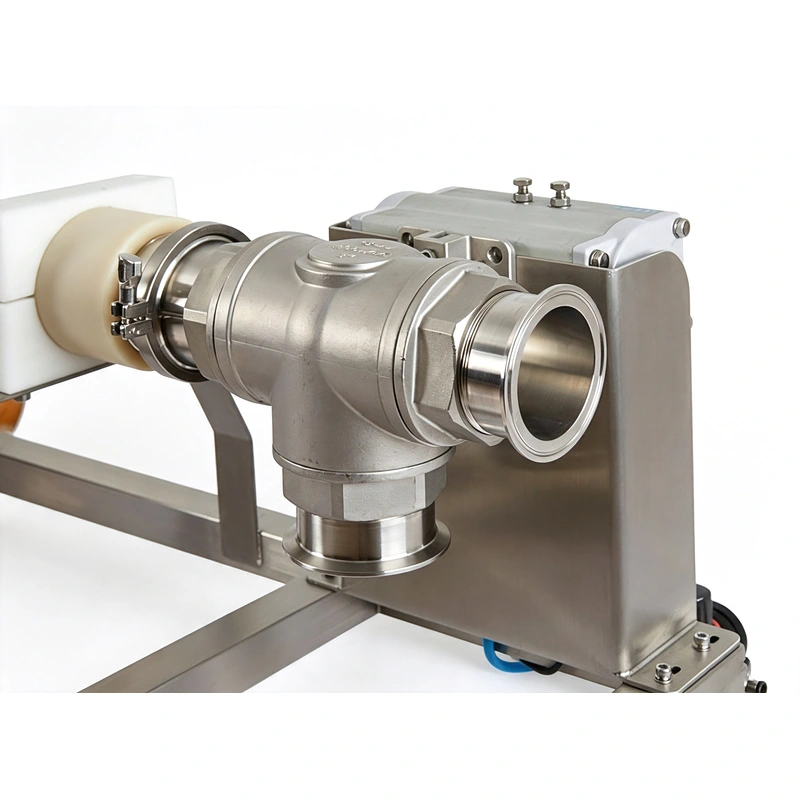

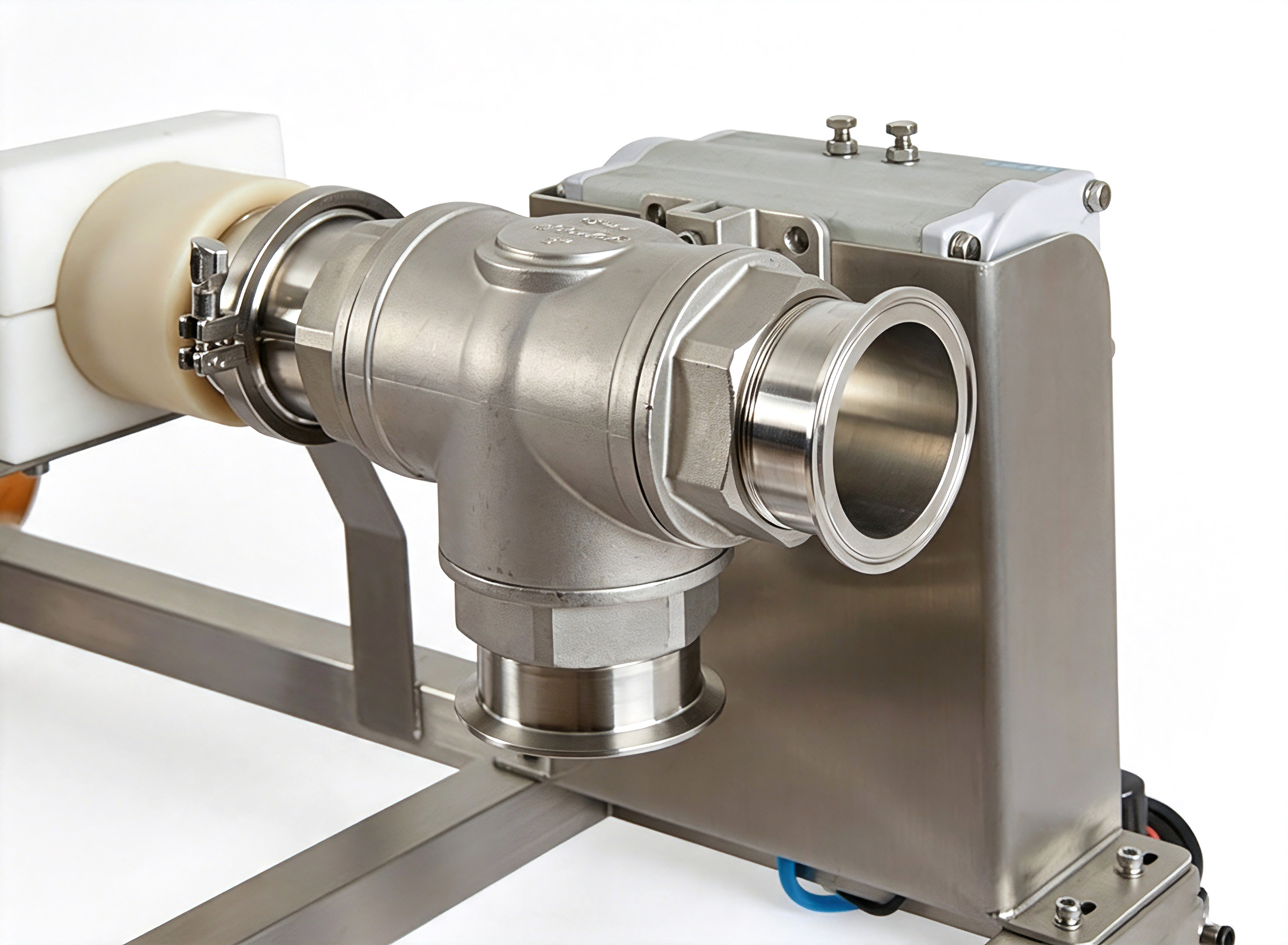

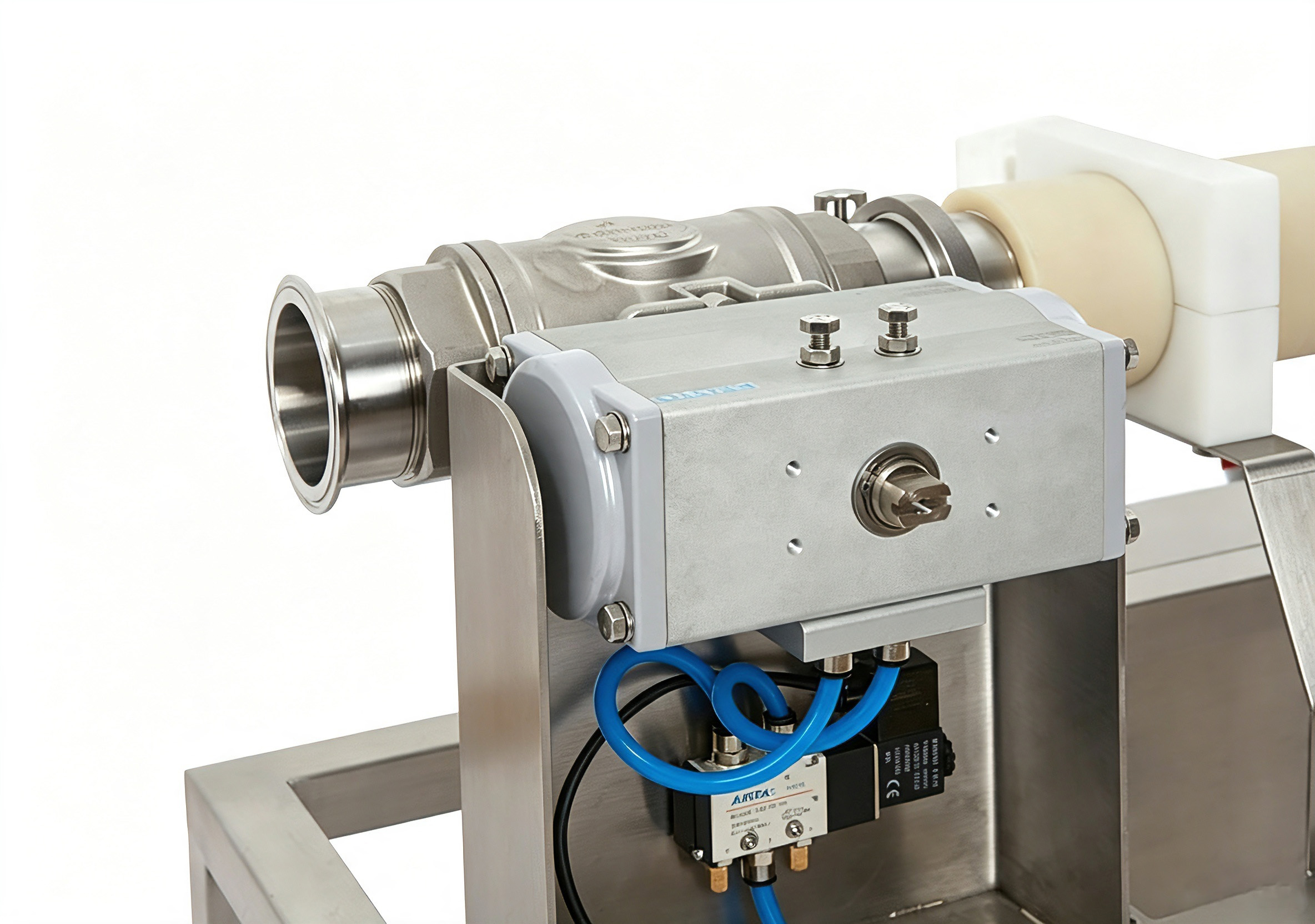

Alarm mode: detect metal, alarm and automatically remove
Main material: SUS304
Pipe material: PP
1. Use advanced DSP technology and leading intelligent algorithms to improve detection capabilities. Improve sensitivity and promote machine stability.
2. Designed to detect and separate metal contaminants in pumped, liquid and pasty products.
3. LCD display, English operation menu.
4. The automatic learning function helps automatically select appropriate working parameters according to different products.
5. Use quick calculation values according to different product characteristics to ensure reliable removal of pollutants.
6..Easy to integrate into piping systems via quick connectors.
7. High sensitivity.
8. Made of stainless steel, with good waterproof performance.
9. Through compact structural design, it has the advantage of small space occupation, which is conducive to integration in narrow sites.

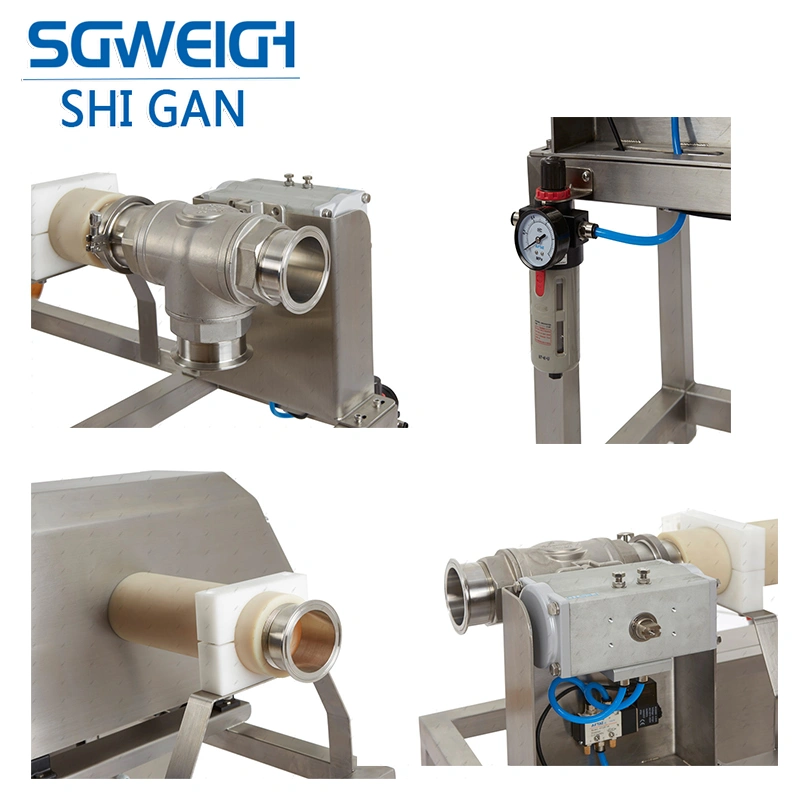

3. The clamp is used to connect the front and rear production lines, and it can be quickly installed into any existing pipeline system of the production enterprise, which is convenient and fast.
6. Made of stainless steel (SUS304) material, simple structural design, hygienic, easy to clean, corrosion-resistant, and in line with HACCP, FDA and other requirements.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
★Pre-sales
project design,performance introduction,technical agreement,contract signing,production testing and we can customized production according to your requirements.
★In-sales
we will provide you with the latest process in the product assembly,packing and transportation.
★Installation
◎We provide videos and instruction manual to show the process of installation.
◎We provide training for installation for free in our factory.
◎We can send technician to buyer's factory to install the machine and provide training service.
★After-sales
◎ For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.
◎We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours.If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts.
