Slurry/Shampoo/Liquid Pipeline Automatic Metal Detector Separator

Slurry/Shampoo/Liquid Pipeline Automatic Metal Detector Separator are essential in industries such as oil,petrochemicals,water treatment,and others,where the presence of metal contaminants can lead to operational issues or compromise product quality.

Description

Product Introduction

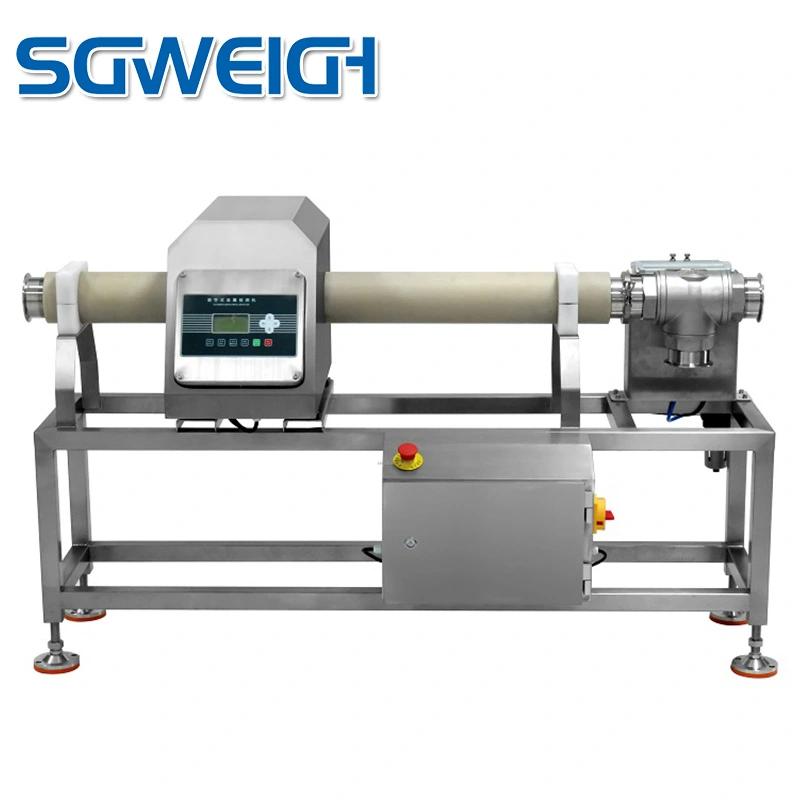

Slurry/Shampoo/Liquid Pipeline Automatic Metal Detector Separator,often referred to as a pipeline metal detector,is a device designed to identify the presence of metallic objects in liquid pipelines.These detectors are essential in industries such as oil,petrochemicals,water treatment,and others,where the presence of metal contaminants can lead to operational issues or compromise product quality.Welcome to consult for quotation information!


Slurry/Shampoo/Liquid Pipeline Automatic Metal Detector Separator

Technical Parameters

Model: SG-ML80/SG-ML100/SG-ML150/SG-ML200

Tube inner diameter: 80/100/150/200

Detection sensitivity: Fe (Φ)-0.6/0.8/1.0/1.0

SUS304 (Φ): 1.2/1.5/1.5/2.0

Pipeline flow (t/h): 2/4/8/15

Machine weight: 120kg/140kg/160kg/180kg

Power supply: AC220V (optional)

Product preset quantity: 100 kinds

Detected product form: powder, small particles, liquid, paste

Air source requirement: ≥0.5MPA

Alarm mode: detect metal, alarm and automatically remove

Main material: SUS304

Pipe material: PP

For reference only, please consult for details!

Contact us to recommend a product that is suitable for you!


Slurry/Shampoo/Liquid Pipeline Automatic Metal Detector Separator


Main Features

1. Our metal detectors are very easy to integrate into piping systems due to the use of quick-lock joints.

2. Due to their practical, sturdy and hygienic stainless steel design and high protection level, they are particularly easy to clean.

3.They have high sensitivity to all metals.

4. With self-monitoring, self-calibration and temperature compensation functions.

5. Use advanced DSP technology and leading intelligent algorithms to improve detection capabilities. Improve sensitivity and promote machine stability.

6. Designed to detect and separate metal contaminants in pumped, liquid and pasty products.

7. Through compact structural design, it has the advantage of small space occupation, which is conducive to integration in narrow sites.

Slurry/Shampoo/Liquid Pipeline Automatic Metal Detector Separator


Application



Our Company


about us.jpg


Our Customers




Our Exhibitions


Package & Shipping

1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.

2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.

Packing Detail:

1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
