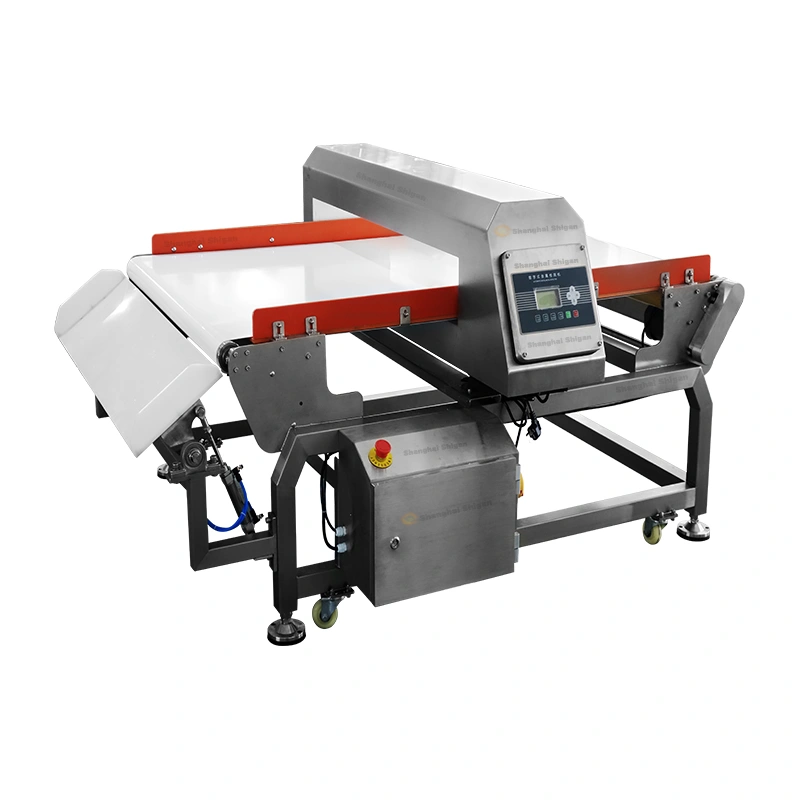

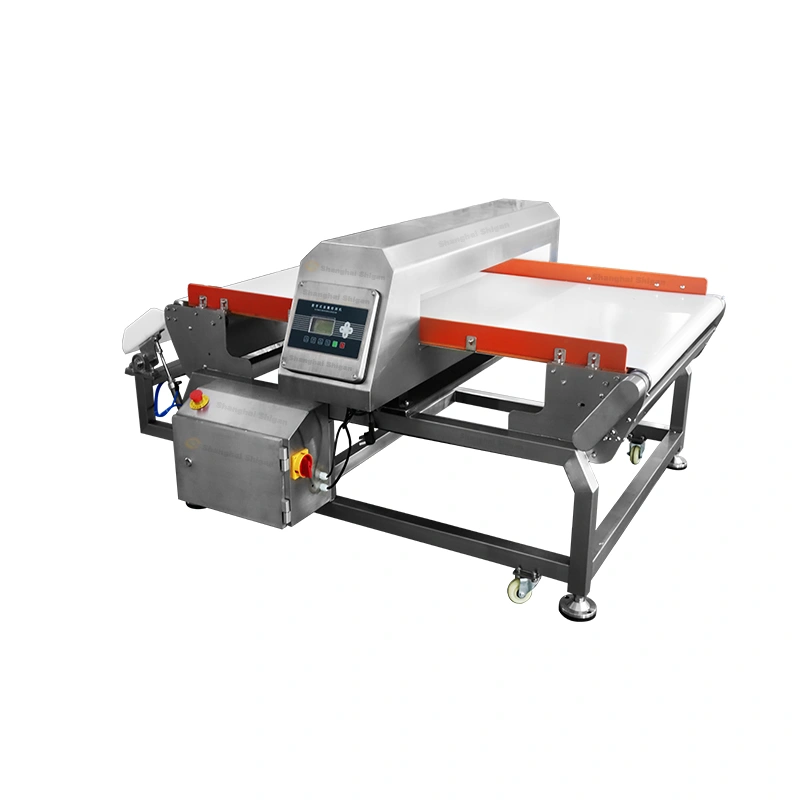

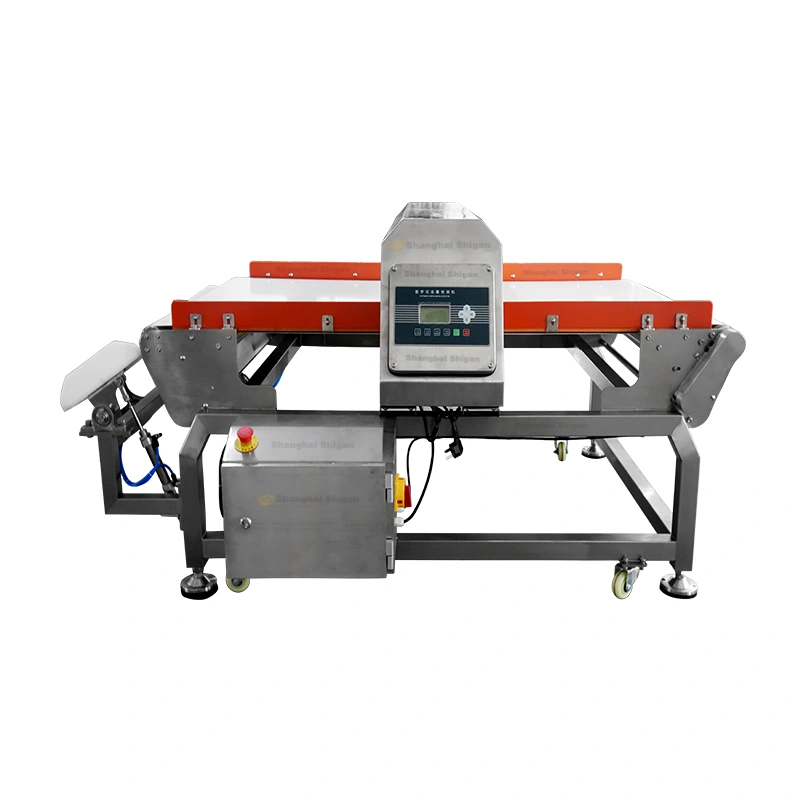

Ultra-Wide Belt-Type Metal Detector Machine uses high-speed digital signal processing devices and intelligent algorithms to detect metals in various foods.Automatic Alarm Food Custom Metal Detector Machine can improve detection accuracy and stability. It has high detection sensitivity for metal foreign matter mixed in products, and can easily detect common metal impurities mixed in products.
SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal
Dimensions: about L1500×W850×H950mm
1. Stable and high detection accuracy, mature digital phase modulation technology, effectively suppressing product effects, making the system have stable and high detection accuracy.
2. Automatic setting function, parameter setting is simple and fast.
3. User level management function, for different positions, set passwords suitable for different user levels, clarify permissions and responsibilities, and facilitate management.
4. Database function, product database, automatic counting database, detection information record database, which can quickly realize product switching and historical data review.
5. Humanized design, equipped with intelligent operating system, 7-inch LCD color touch screen, simple screen, simple and intuitive operation, which can easily realize human-computer dialogue.
6. Printer interface: The system has a printer interface, which can print detection information in real time through the printer, and the data viewing is intuitive and clear.
7. Support the function of exporting data through U disk.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
A. Pre -sale:
1. In accordance with the customer's requirements, the customer quotes the customer, and the customer has special requirements for timely recording feedback;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide free warranty for one year, lifelong maintenance service, and be responsible for debugging the product before delivery;
B. After -sales:
1. If the customer's product fails, the problem will be solved for you as soon as possible
2. During the warranty period, the product maintenance is free. It exceeds the warranty period and can also provide maintenance. If the accessories are replaced, the product accessories are provided at the cost price.
