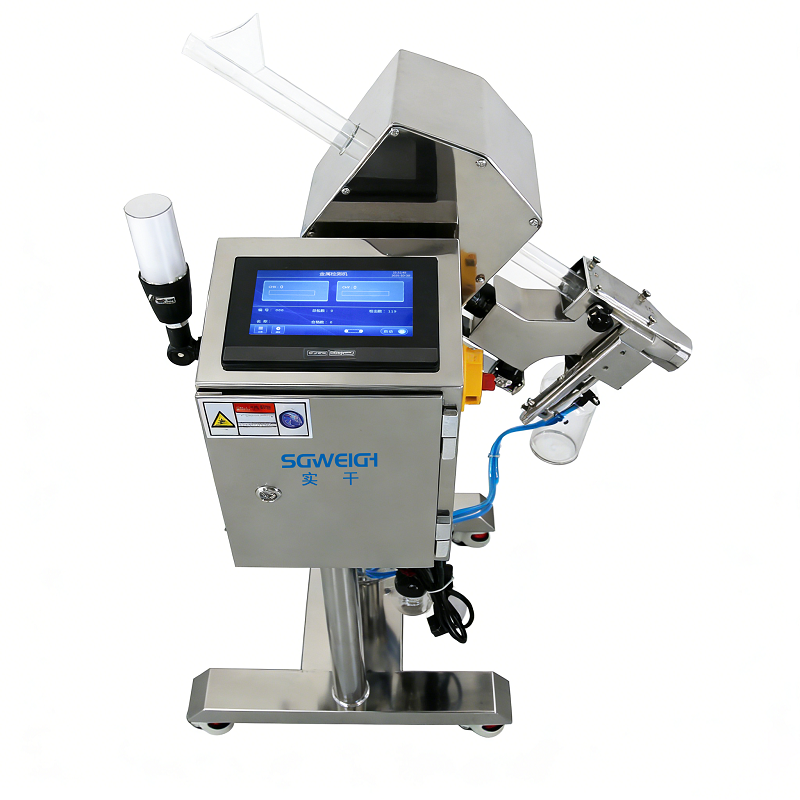

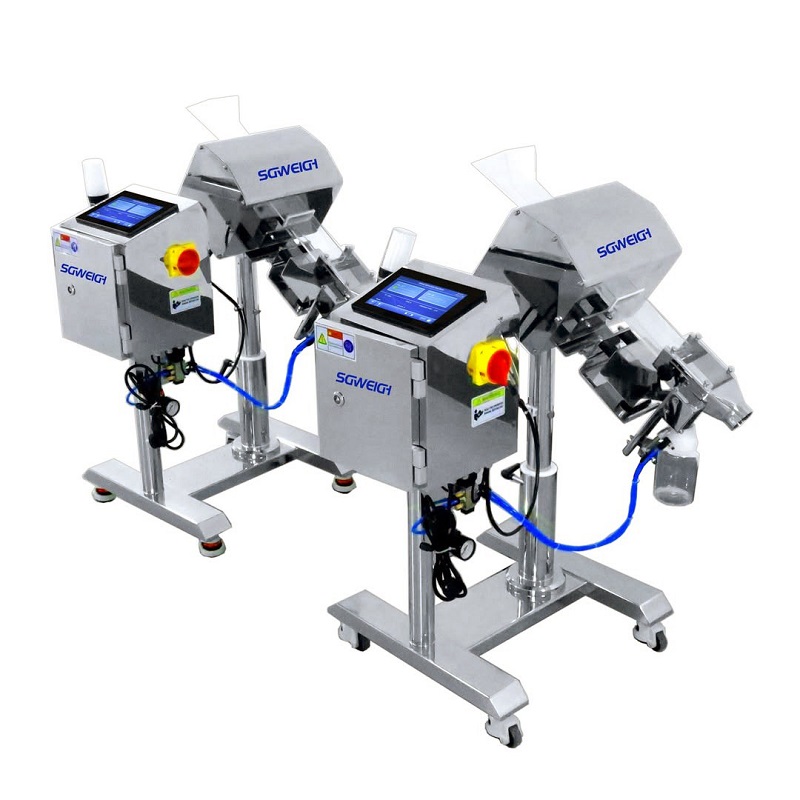

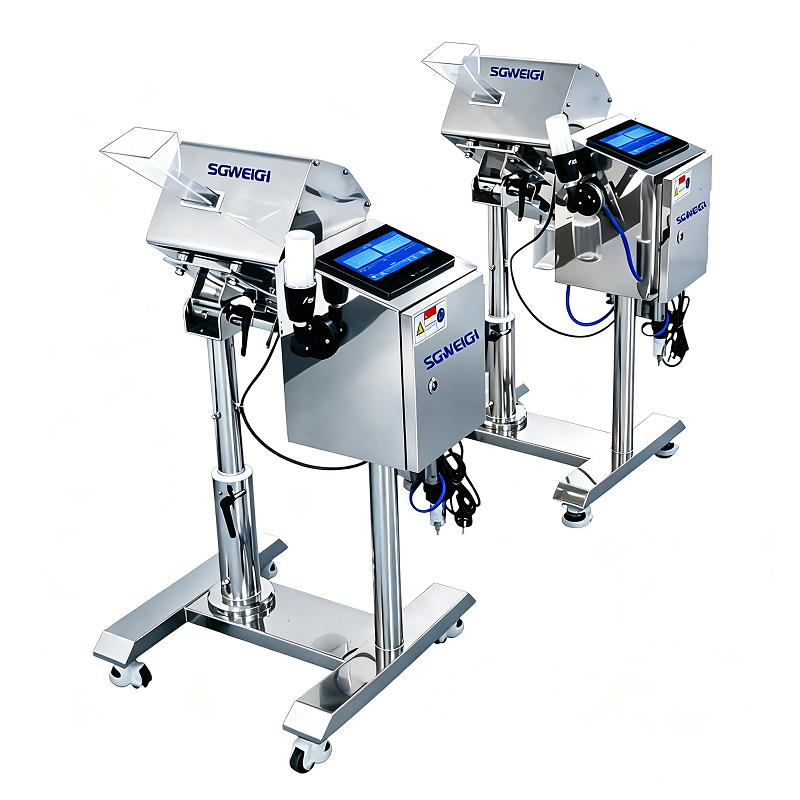

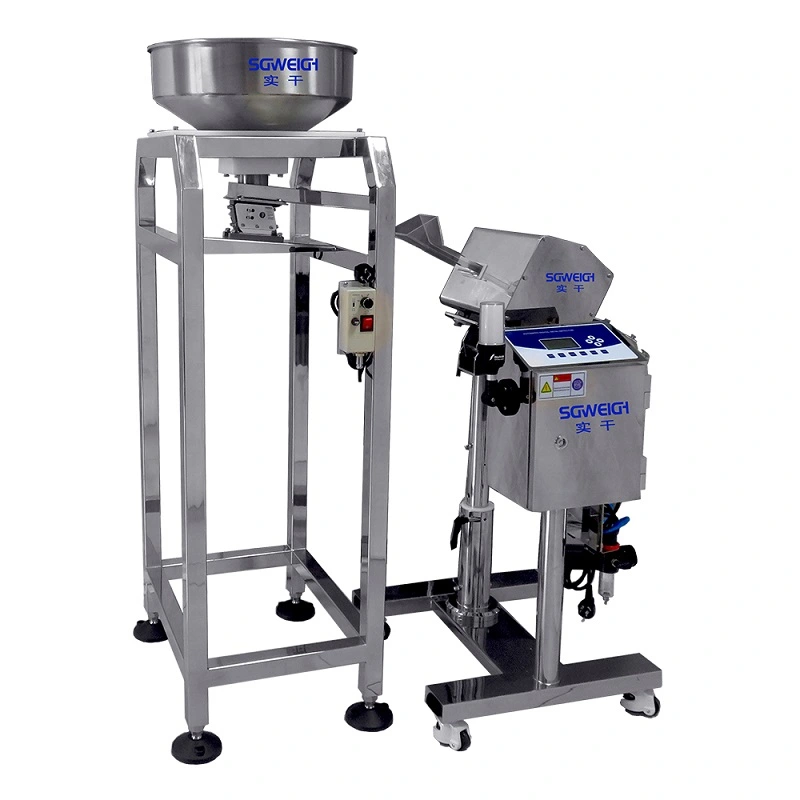

Vertical Bulk Tablet Metal Detectors are high-sensitivity metal contamination inspection systems specifically designed for the inline detection of loose tablets and similar free-falling products. Installed vertically in the production process, the system allows bulk tablets to pass through the detection chamber by gravity, providing fast and continuous inspection without interrupting product flow.
The Capsule Metal Detector can detect ferrous (Fe), non-ferrous (Non-Fe), and stainless steel (SUS) contaminants that may enter the product during processing or handling. Once metal contamination is detected, a high-speed rejection mechanism automatically separates the contaminated product from the qualified product stream.
SG-MC70
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour

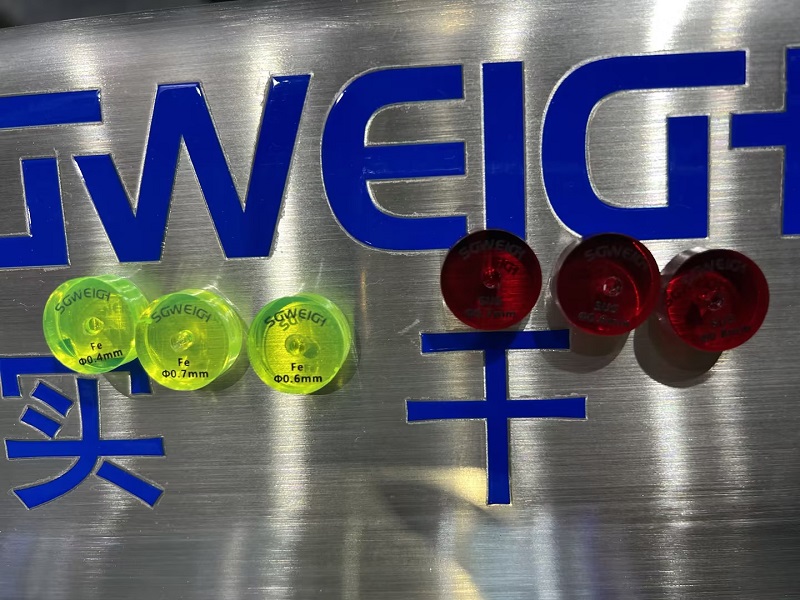

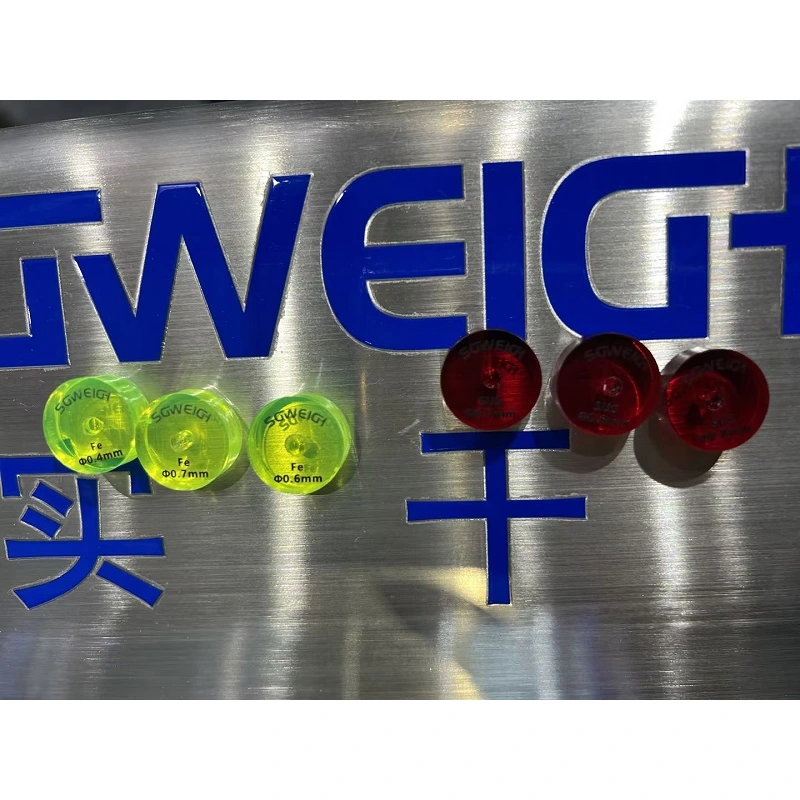

Detection sensitivity: Fe: 0.3mm, stainless steel: 0.5mm
Machine weight: 75kg

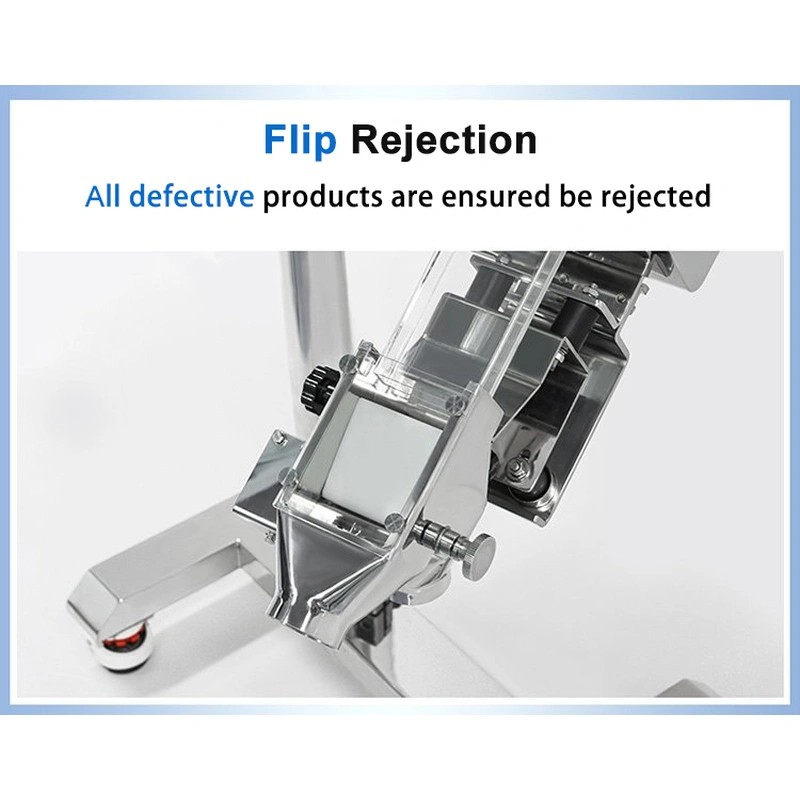

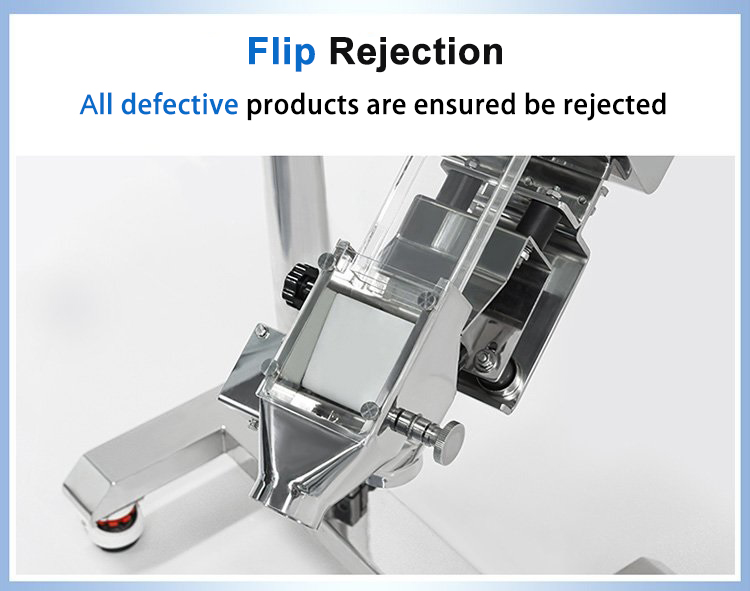

Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!

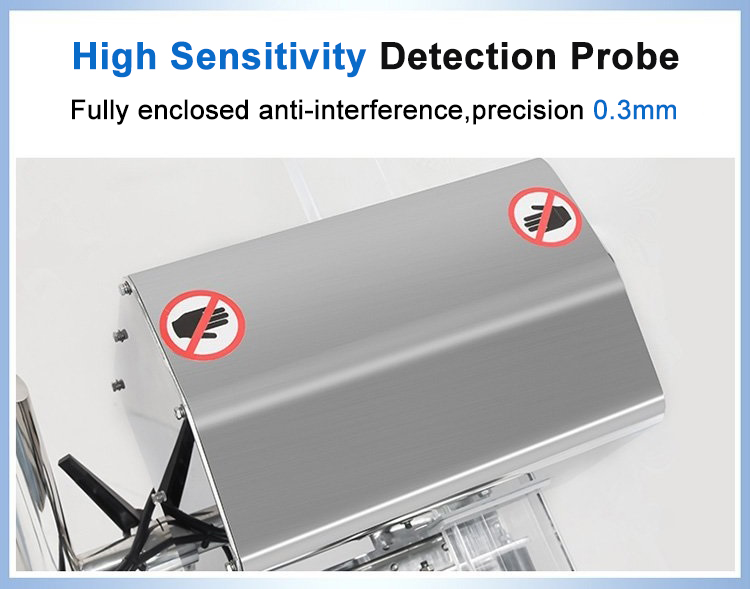

1.High-Sensitivity Metal Detection – Detects ferrous, non-ferrous, and stainless steel contaminants in bulk tablets.

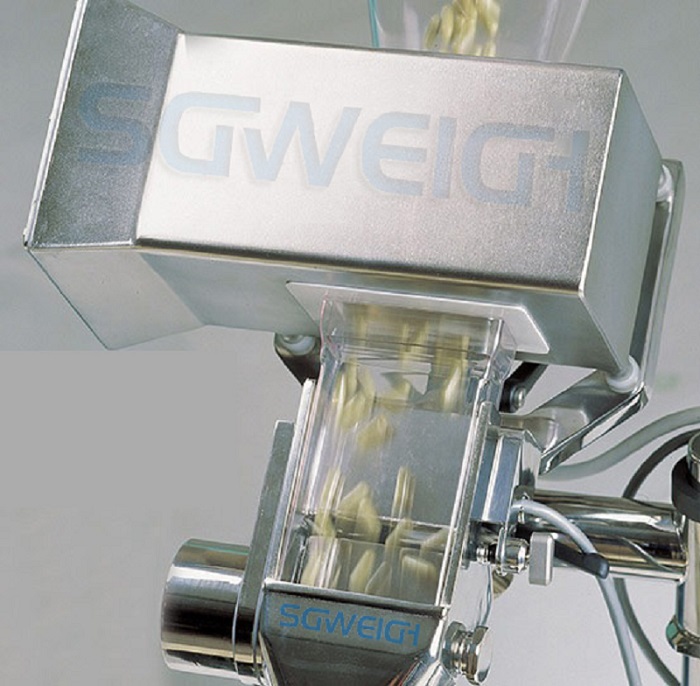

2.Gravity-Fall Inspection – Uses a vertical product flow design for efficient inspection of loose tablets.
3.Automatic Contaminant Rejection – Quickly removes contaminated products while maintaining continuous production.

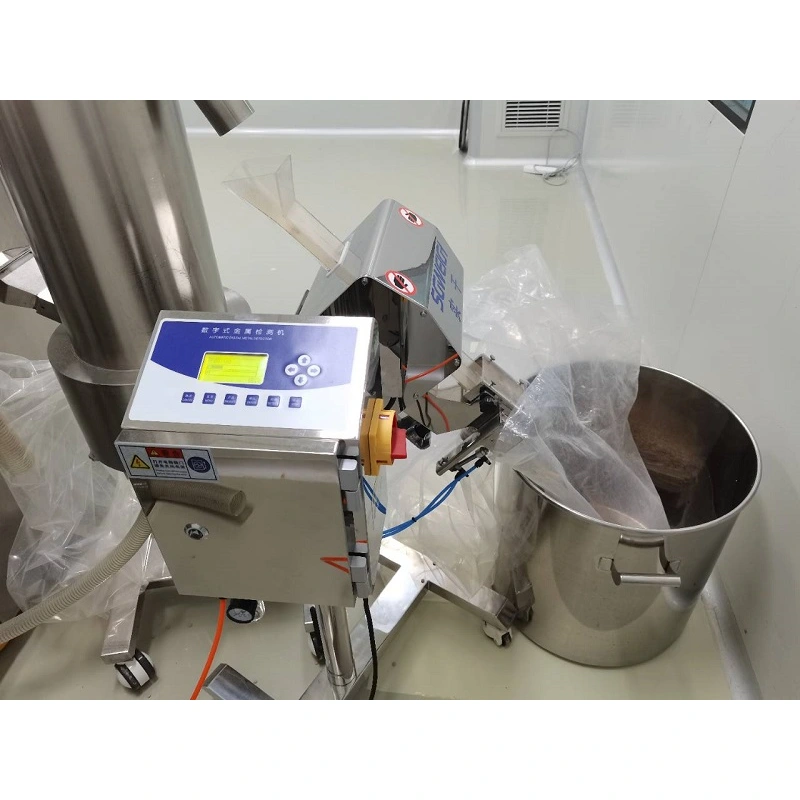

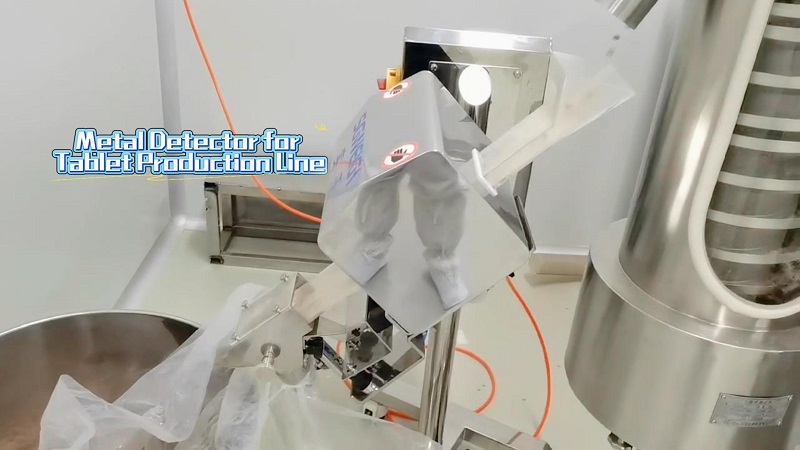

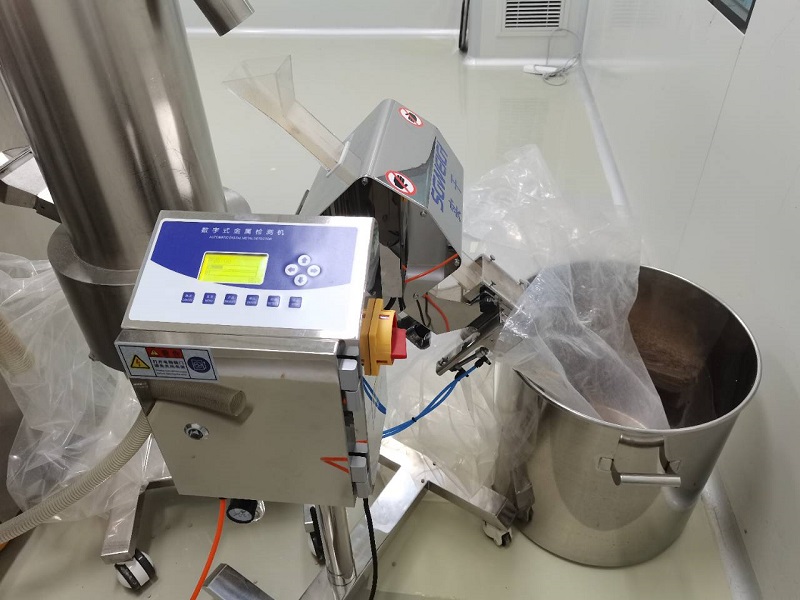

4.Inline Production Integration – Can be connected with tablet presses, dedusters, and downstream collection equipment.
5.Continuous Online Inspection – Provides real-time metal contamination detection during production.
6.Compact Vertical Design – Requires minimal installation space and is suitable for space-limited production areas.
7.Fast Product Flow – Supports high-throughput tablet production with minimal impact on production efficiency.

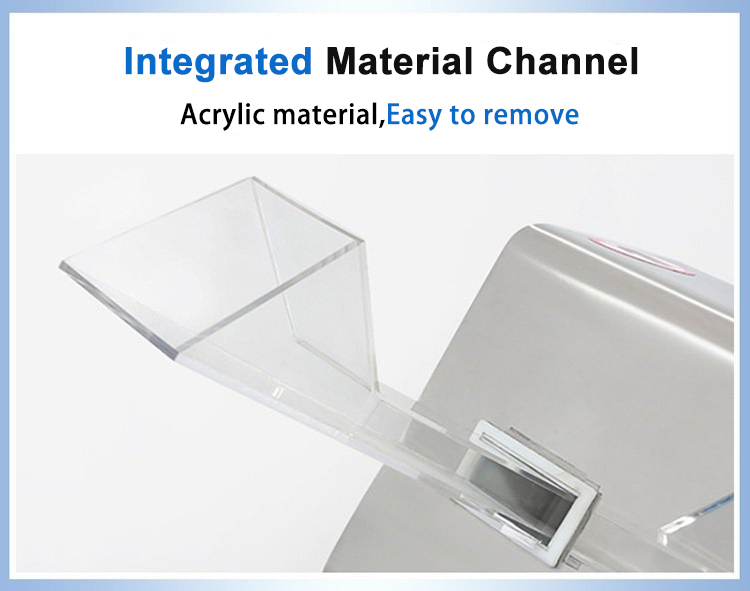

8.Easy Cleaning and Maintenance – The product-contact structure is designed for convenient disassembly, cleaning, and routine maintenance.

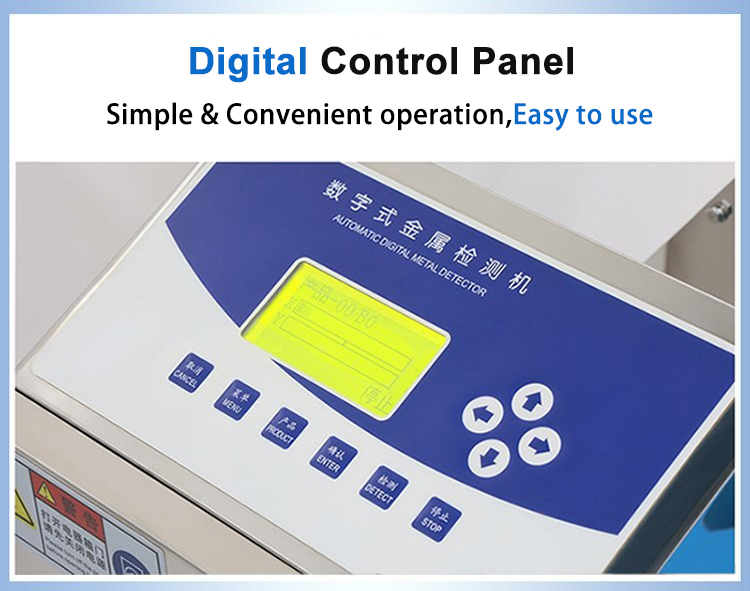

9.User-Friendly Operation – Simple control interface enables fast parameter adjustment and product setup.
10.Customized Configuration – Detection aperture, inlet and outlet dimensions, machine height, and connection interfaces can be customized according to production requirements.
It is applicable to the pharmaceutical industry, such as tablets, capsules, pills, etc.

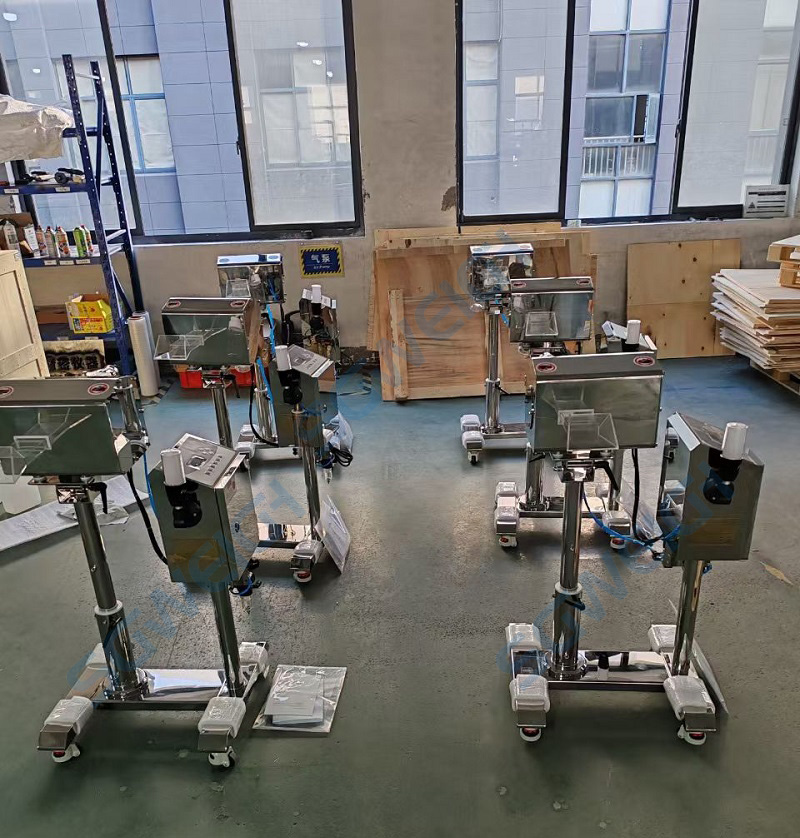

1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.

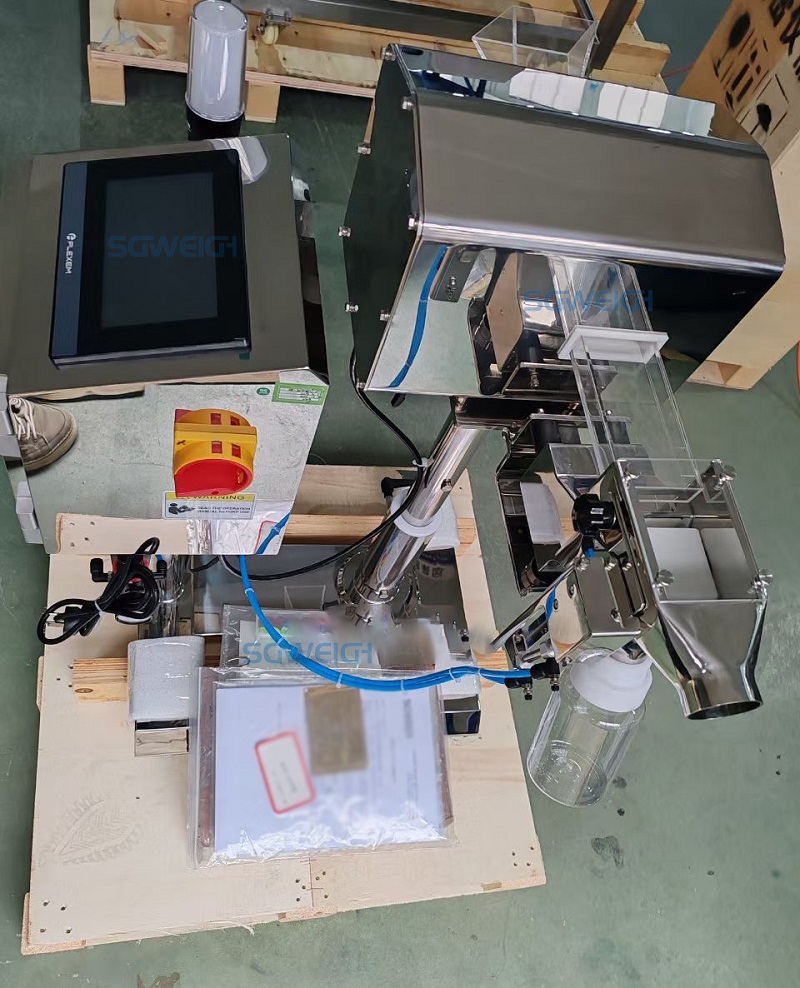

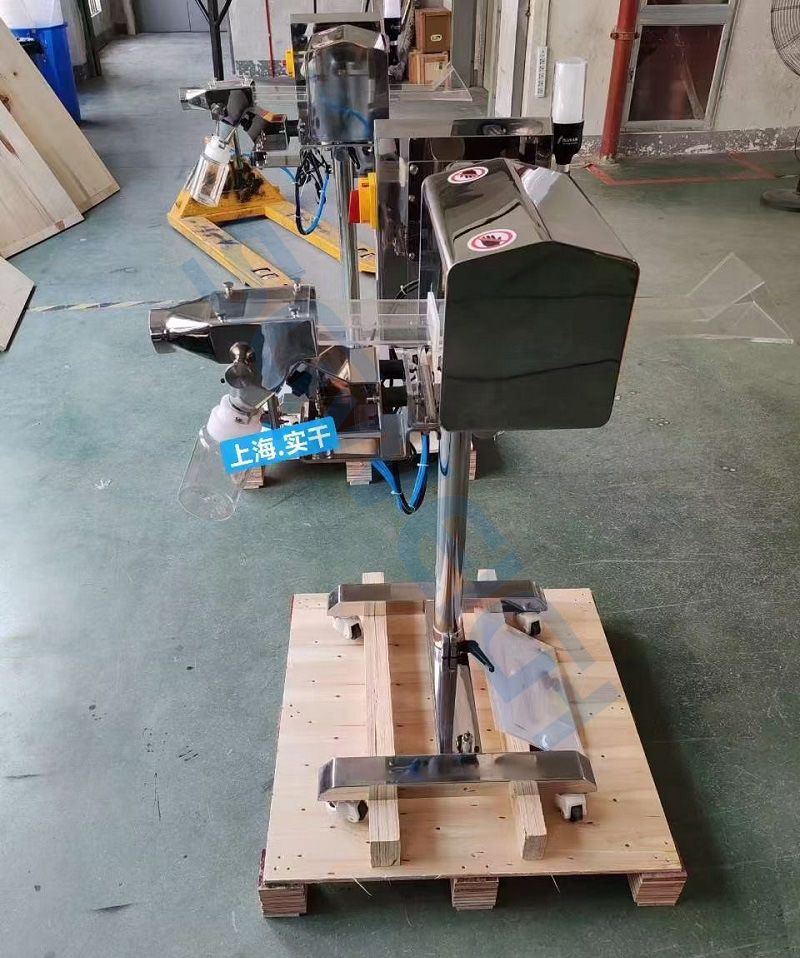

2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
