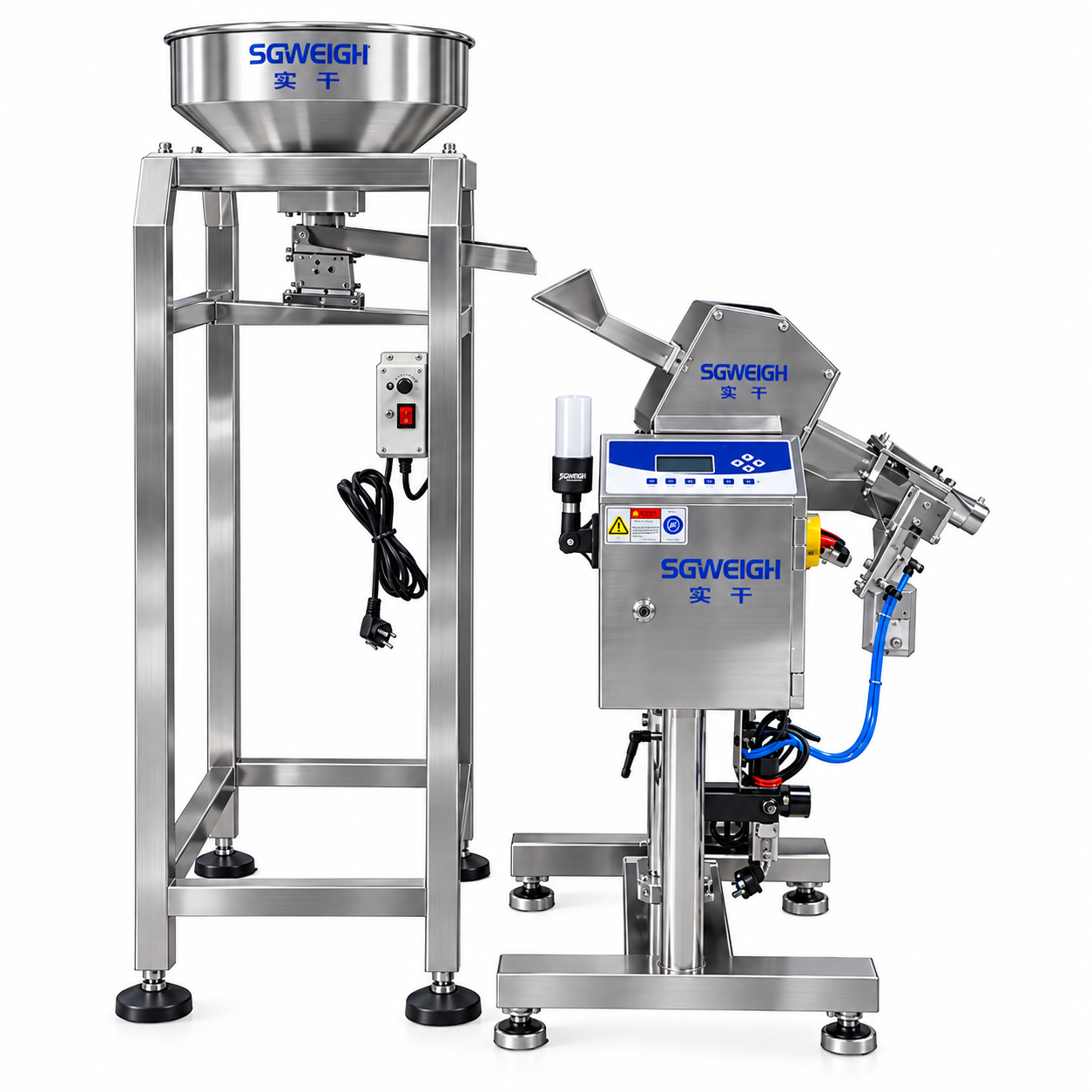

A Pharmaceutical Capsule Metal Detector is specially designed for detecting metal contaminants in empty or filled pharmaceutical capsules during the production process. It helps pharmaceutical manufacturers identify and remove capsules contaminated with ferrous metals, non-ferrous metals, and stainless steel, ensuring product quality and manufacturing safety.
Using high-sensitivity electromagnetic detection technology, the system inspects capsules without damaging the products. It can be integrated into automatic capsule filling and pharmaceutical production lines to provide continuous, reliable, and efficient metal contamination inspection.
Type:SG-M50
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
1.One-button intelligent operation, simple and convenient operation;
2.High-end products, with high precision, high sensitivity,Used to separate magnetic and non-magnetic metals from free-falling bulk materials.
3.It can handle various types of medicines. In order to save space, a more compact rack design is adopted.
4.For health and safety, the metal detector is made of food-grade SUS304 stainless steel;
5.Can automatically recognize product characteristics and effectively eliminate product effects;
6.The height of the probe is adjustable, and it can be customized for higher height.
7.Able to detect ferrous, non-ferrous or stainless steel, even in tiny quantities.
8.Fully FDA compliant, with in-built security and data control.

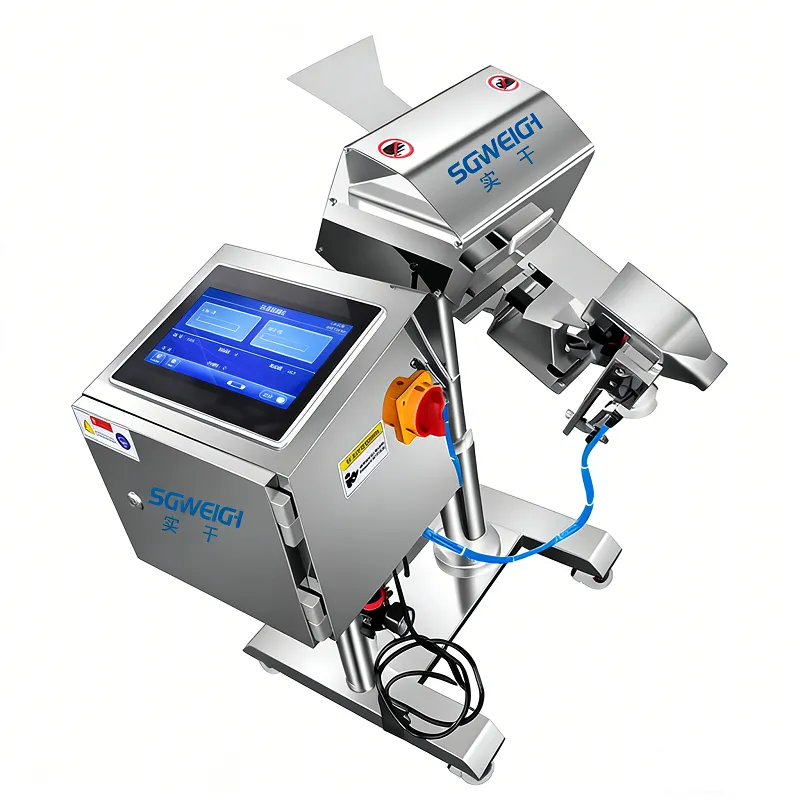

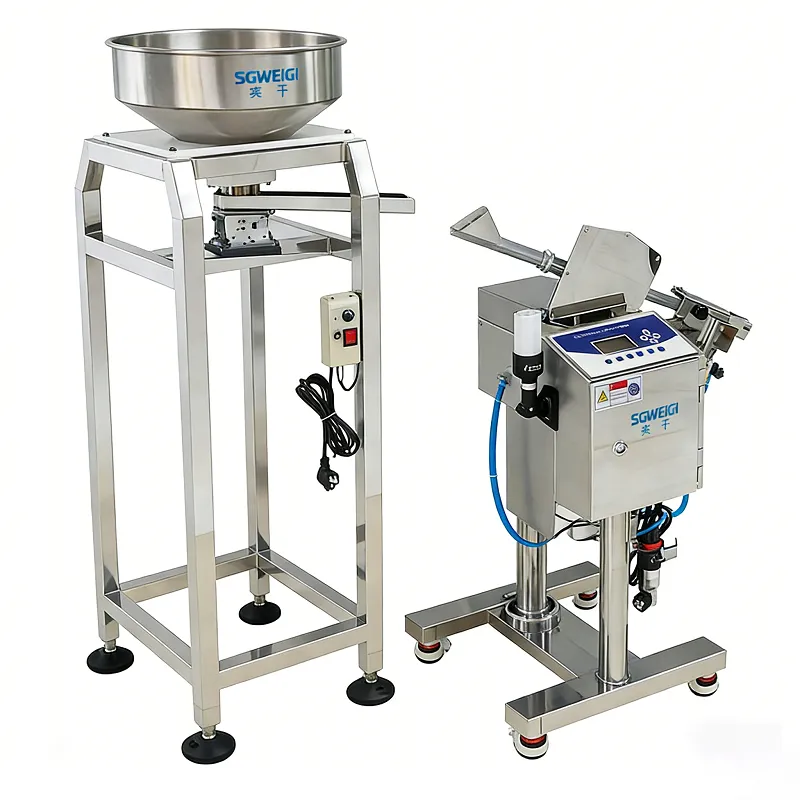

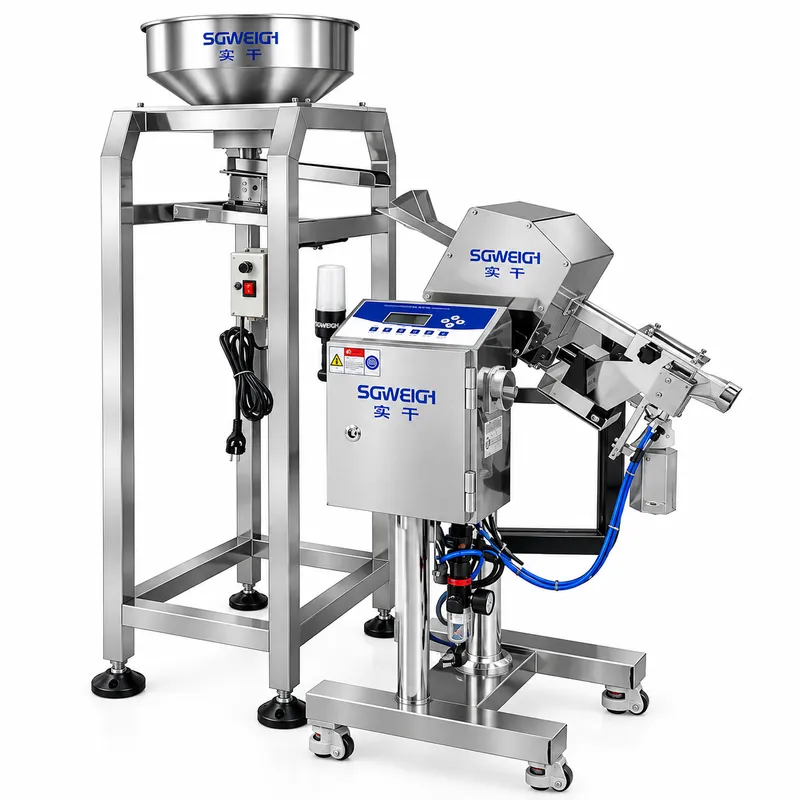

Gravity Drop Tablet Capsule Vertical Metal Detector Machine with Reject System is applicable to the pharmaceutical industry, such as tablets, capsules, powder, pills, etc.

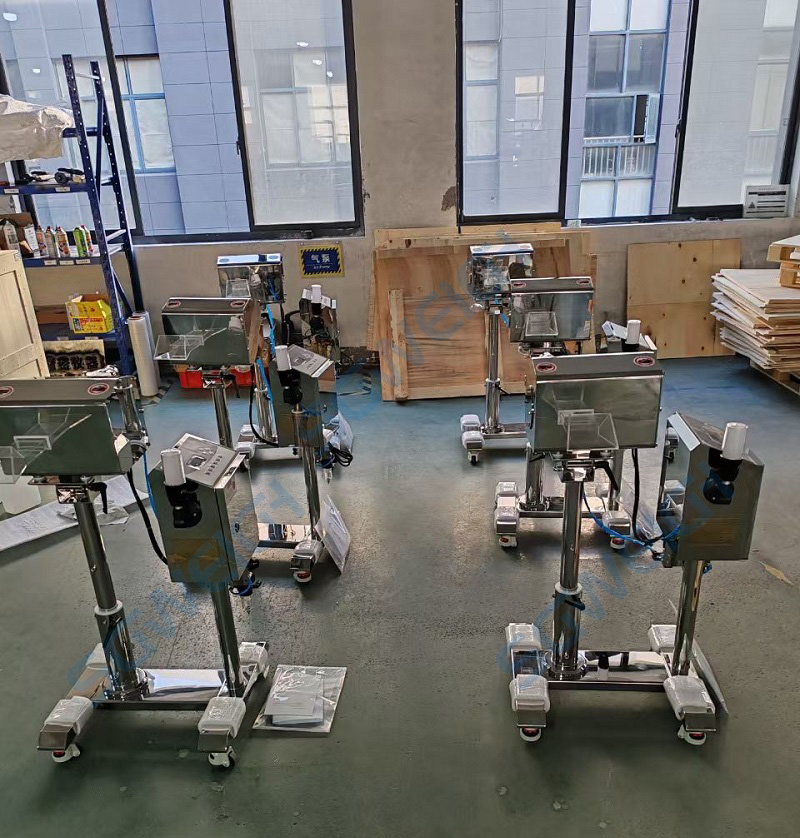

1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
