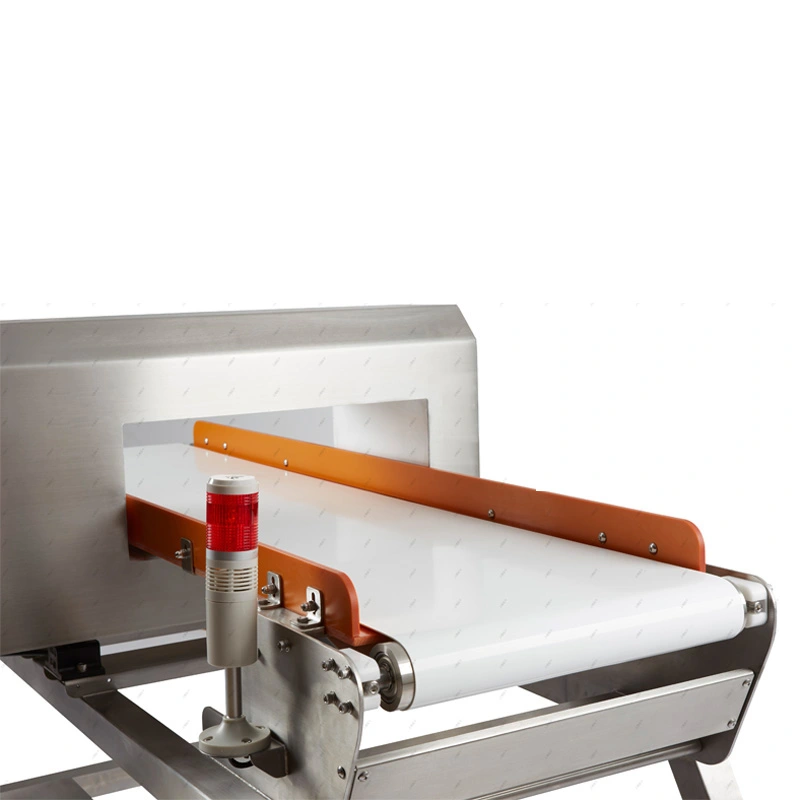

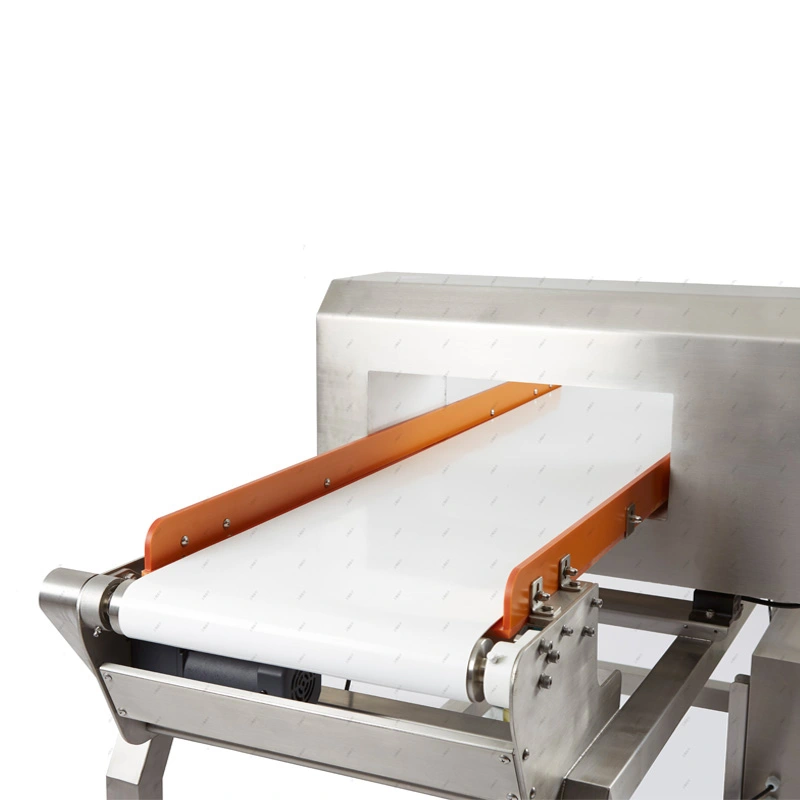

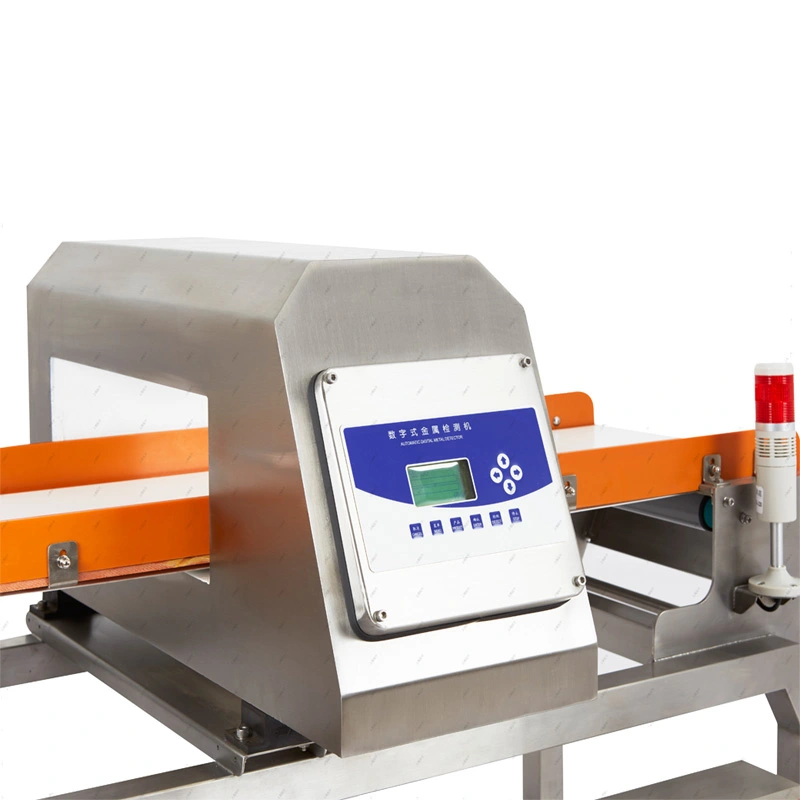

Industrial Metal Detectors are machines that detect any metal contamination present in different types of products.Conveyor Belt Industrial Metal Detector for End-of-line Inspection System use innovative technologies to identify even the smallest metal particles.The size,stability,and sensitivity of the sensors make this an ideal inspection solution for any application.Welcome to consult for quotation information !
The information below is for a generalised machine, each metal detector order can be made bespoke to the customer requirements.
SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal
Dimensions: about L1500×W850×H950mm
For reference only, please consult for details !
Contact us to recommend a product that is suitable for you !
1. Use advanced DSP technology and leading intelligent algorithms to improve detection capabilities. Improve sensitivity and promote machine stability.
2. LCD display, English operation menu.
3. The automatic learning function helps automatically select appropriate working parameters according to different products.
4. High sensitivity.
5. Made of stainless steel, with good waterproof performance.
6. Through compact structural design, it has the advantage of occupying small space and is conducive to integration in narrow sites.
