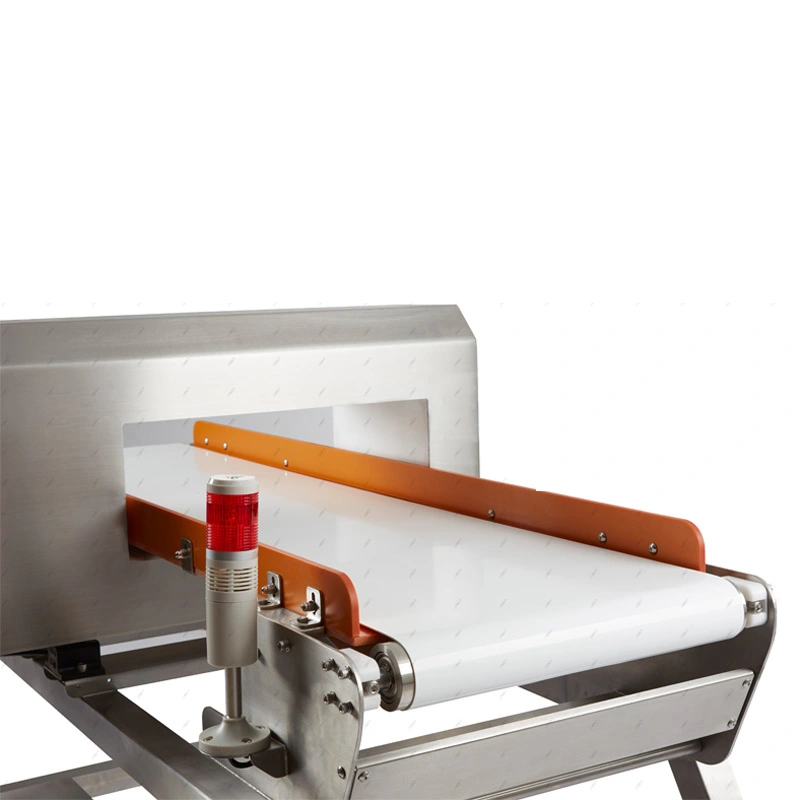

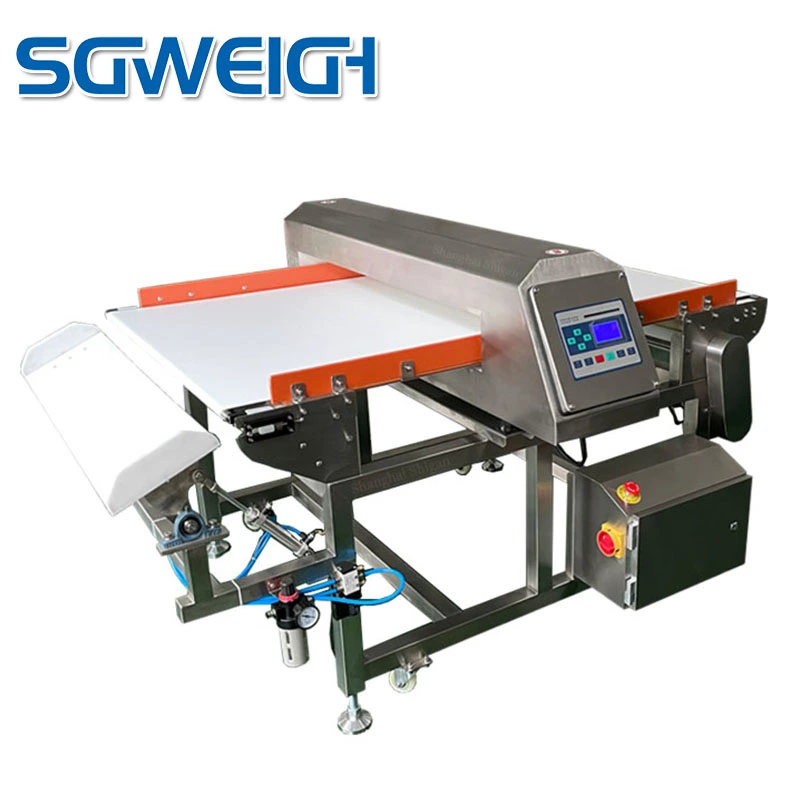

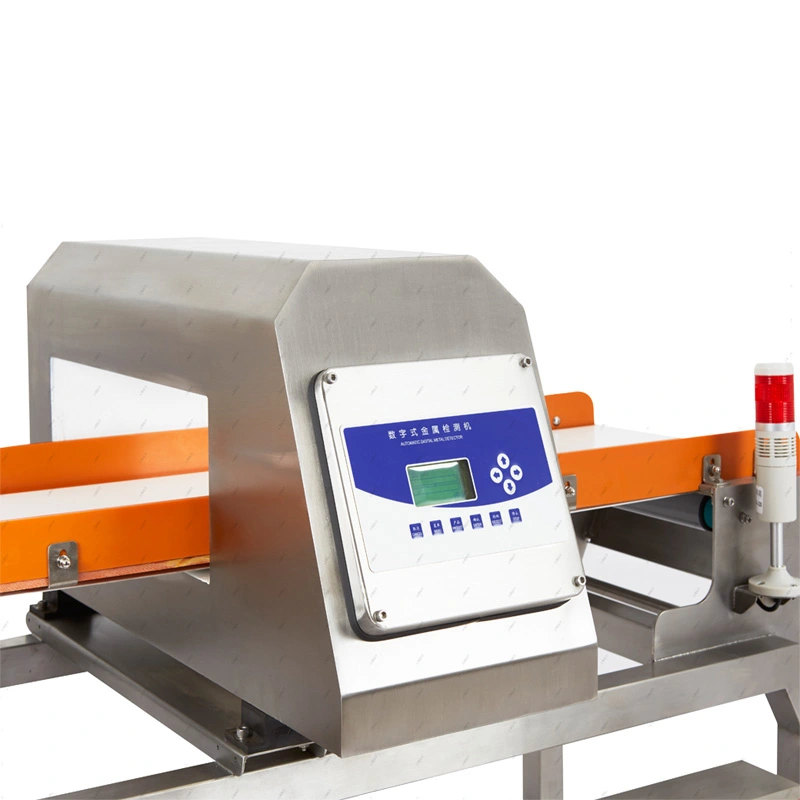

Available in a variety of widths and heights,High-Precision Foreign Matter Conveying Type All-Metal Detector Machine is the ideal device for maximum detection sensitivity and protection for your products.Welcome to consult for quotation information!
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
· Metal foreign matter contamination detection: Detect all types of metal contaminants, including ferrous, non-ferrous, and non-magnetic stainless steel which are extremely difficult to detect.
· Detect more metals Phase adjustment technology effectively suppresses product signals; high-speed digital signal processing technology and intelligent algorithms.
· Meet product applications: Dual-frequency detection takes into account the detection sensitivity of dry/wet products.
· Stable, reliable and advanced automatic compensation technology ensures long-term stable performance.
· Standard specifications can be customized according to different user requirements.
· Efficient operation: automatic settings,quick product switching,historical data,Chinese and English language operating systems, etc.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
