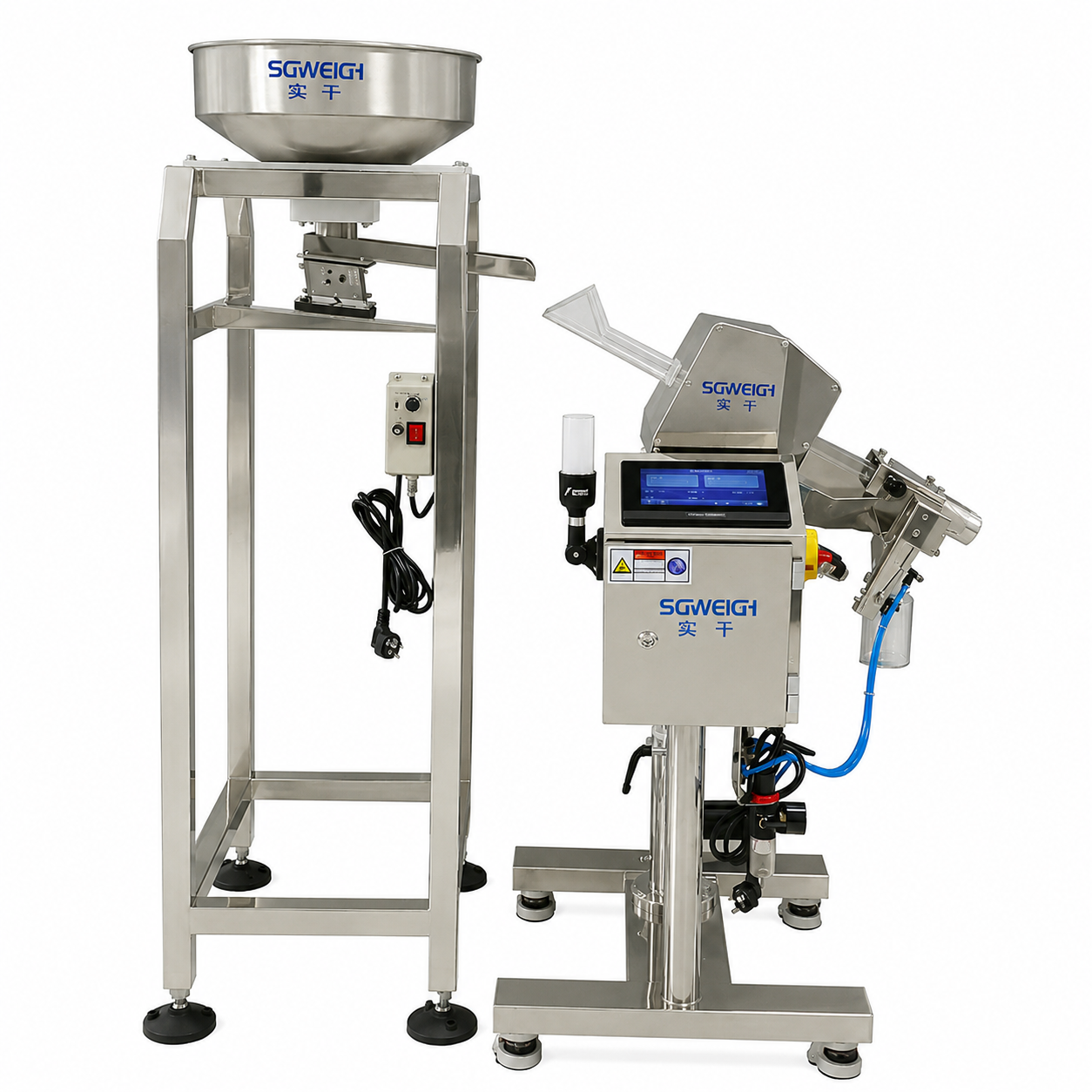

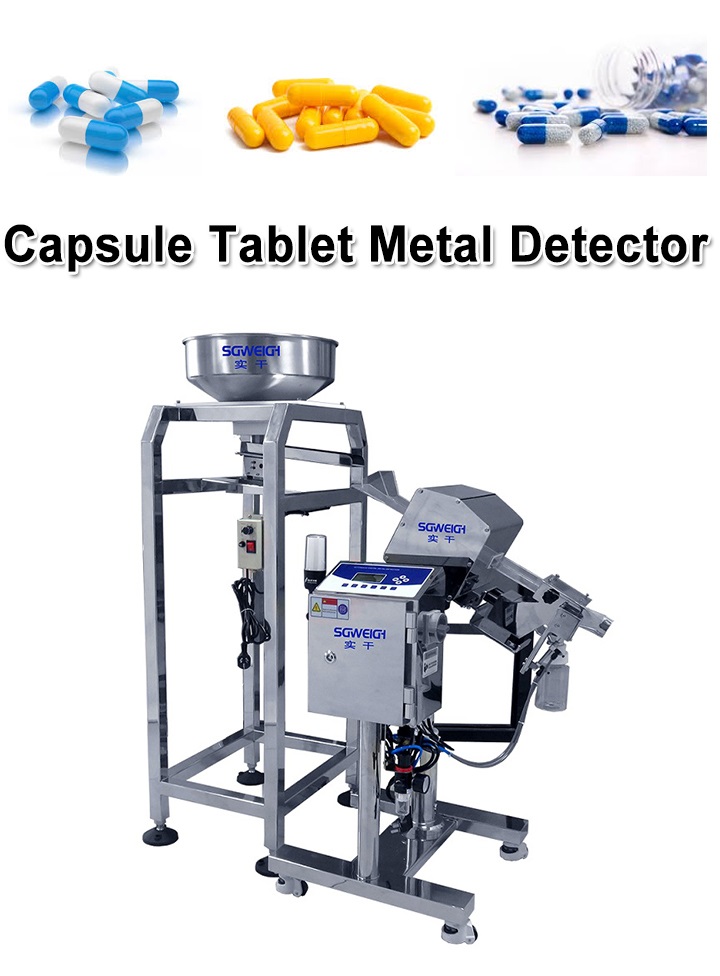

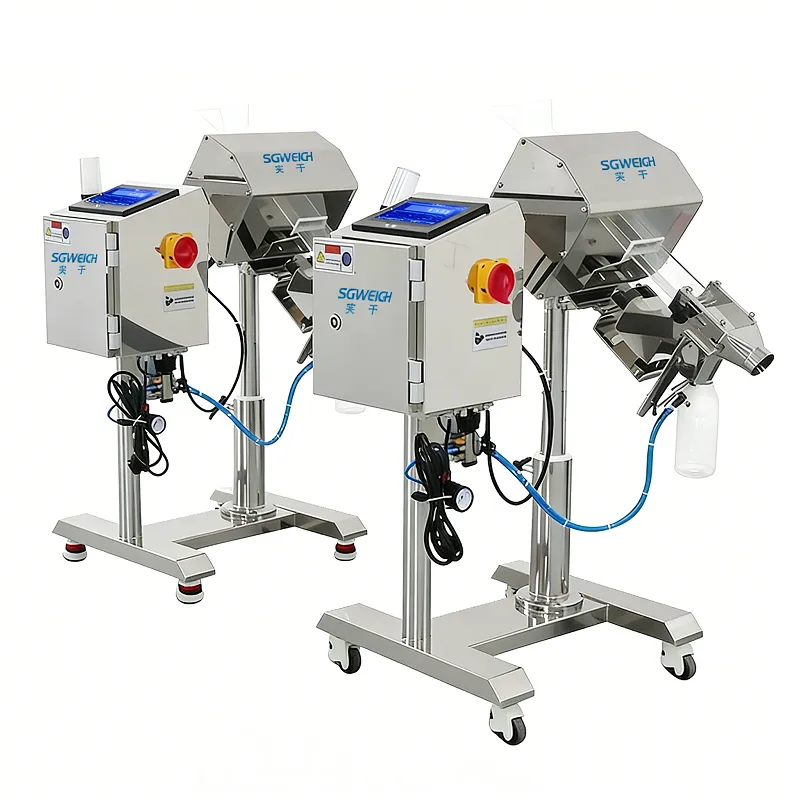

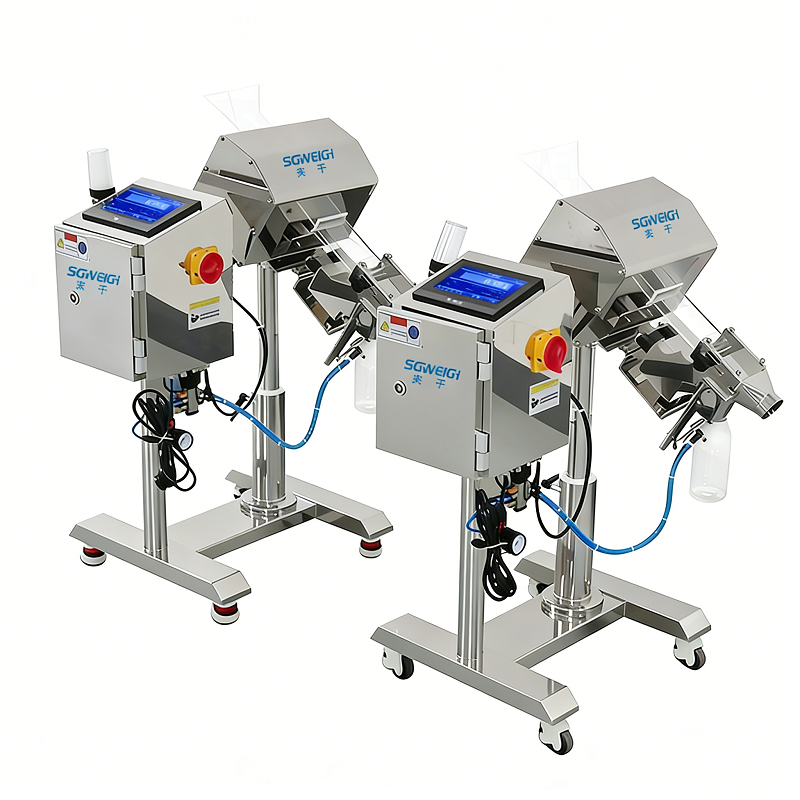

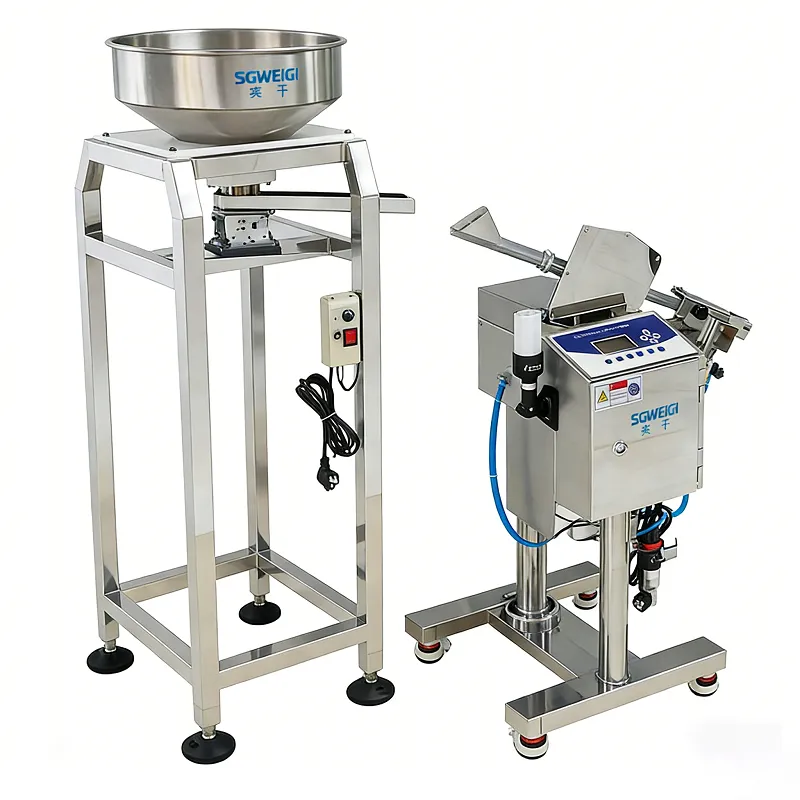

The Metal Detector for Tablets and Capsules is a high-sensitivity inspection system designed to detect and automatically reject metal contaminants in tablets, hard capsules, and other solid products.Pharmaceutical Metal Detector can identify ferrous (Fe), non-ferrous, and stainless steel contaminants during continuous production, helping manufacturers maintain consistent product quality and contamination control.
Designed for integration with tablet presses, capsule filling machines, dedusters, polishing machines, and other processing equipment, the system provides reliable inline metal detection and automatic rejection without interrupting production.
Type:SG-M50
Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.4mm

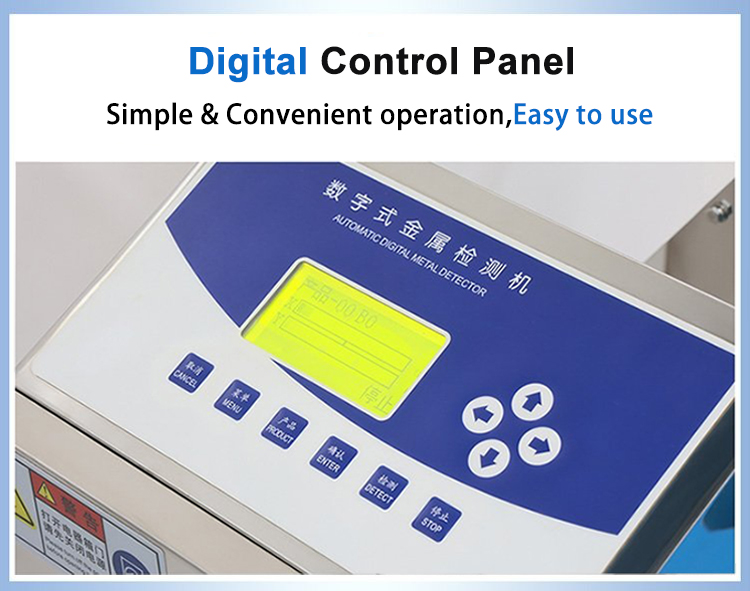

Operation Mode:Touch Screen/LED fast key input
Machine weight: 60kg

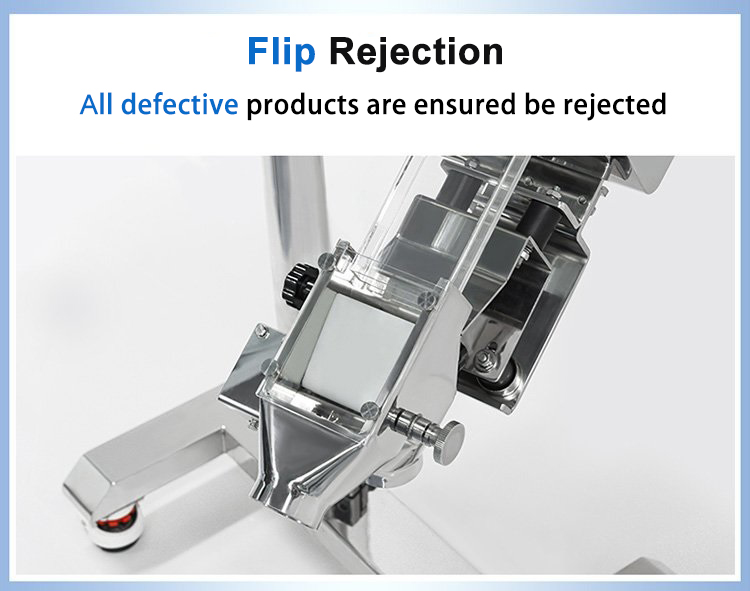

Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ

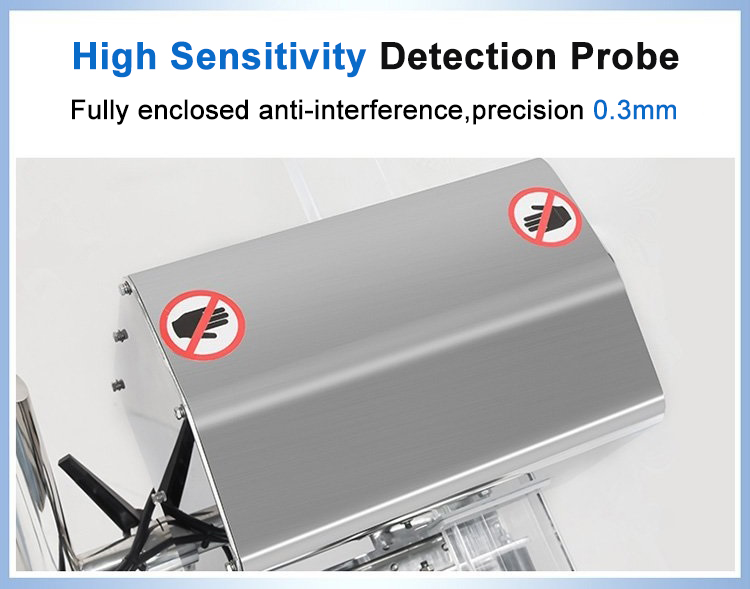

1.High sensitivity: Detects extremely small metal fragments (down to 0.3 mm).
2.Compact design: Fits easily into tablet and capsule production lines.
3.Automatic rejection: Contaminated products are removed via a fast reject mechanism.
4.Compliance: Meets FDA, GMP, and pharmaceutical safety regulations.

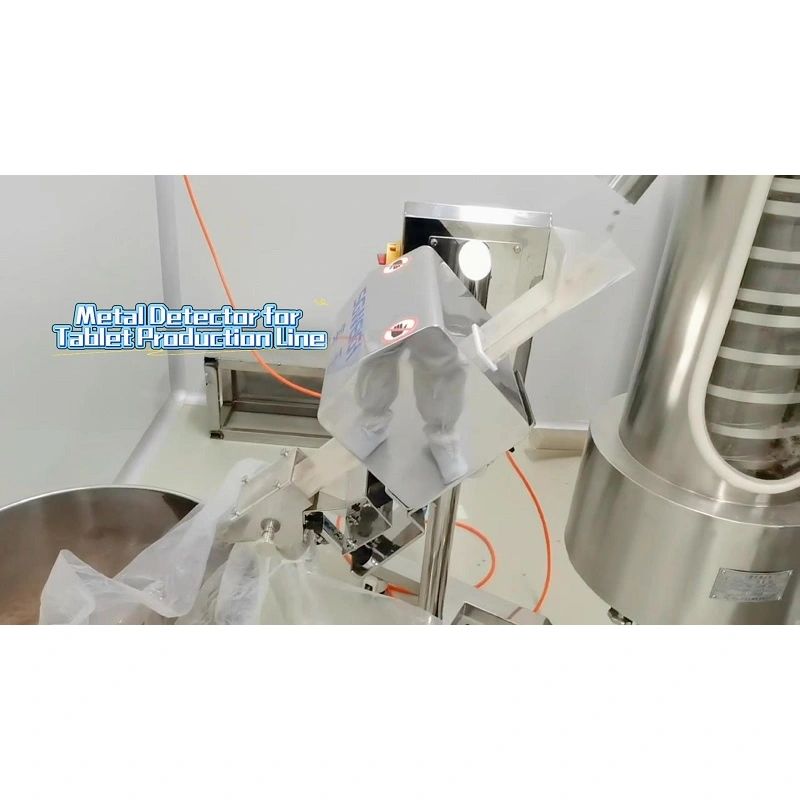

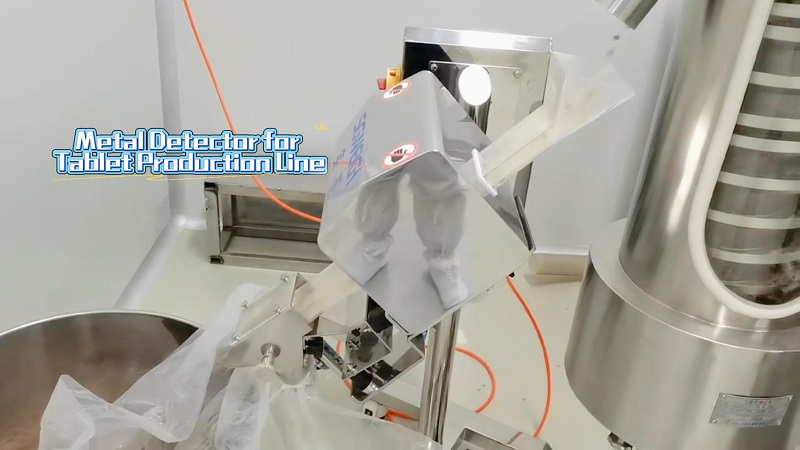

5.Integration: Can be installed after a tablet press, capsule filling machine, or deduster.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
Q1. Are you a manufacturer or trader?
A: We are a manufacturer and we are located in Shanghai,China. We have our own design team for product design.
Q2: Can you explain the whole transaction process?
1. Understand the specific needs of customers and determine the machine details.
2. Sign the contract.
3. Pay the deposit.
4. The factory arranges production.
5. Test and inspect the machine before shipment.
6. Check by customers through online or on-site testing.
7. Shipment and transportation, balance payment.
Q3.How much does Capsule Metal Detector cost?
There is no quick, easy answer to this question.Our machine is specific to the customer, so arriving at 'standard pricing' isn't usually practical. Pricing largely depends upon your unique needs, such as the products you want to detect, the size of the product,the speed you want to achieve,or the complexity of the process. Contact us to get a specific quote.
Q4. What kind of shipping method can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logo and customization?
A: We accept all kinds of customization and logo for our customers for all our products.
Q6. How about the packing for product? Is it easy damaged during transportation?
A: No.We takes of wooden case and it is very safe.
