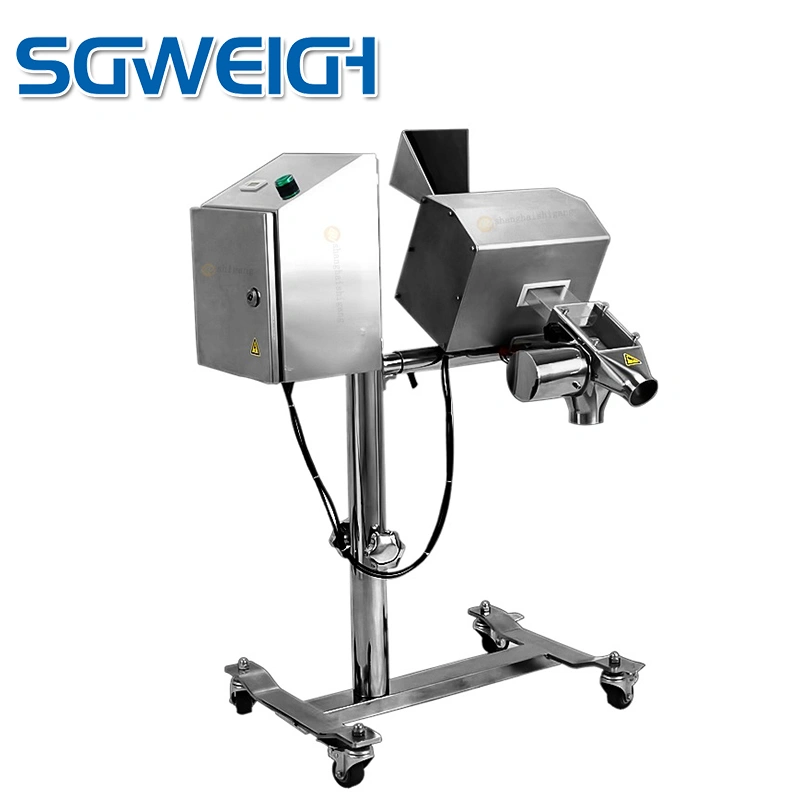

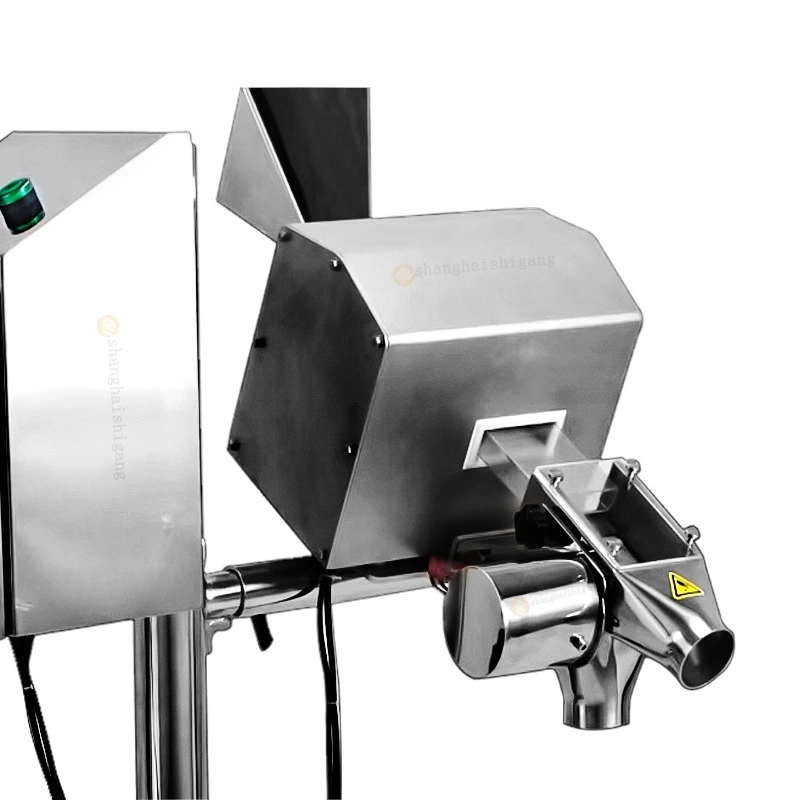

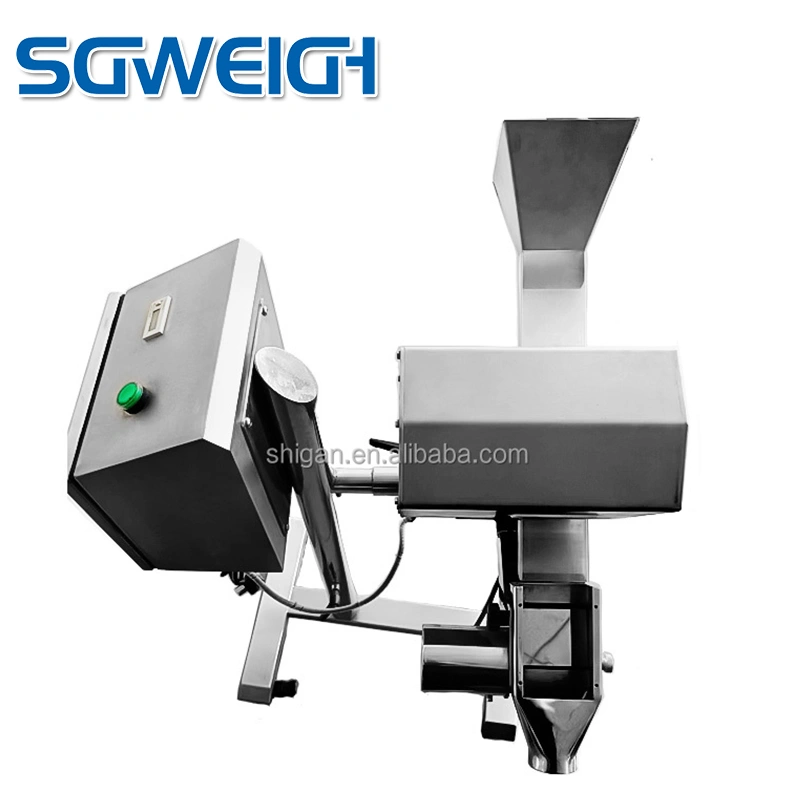

Gravity Drop Tablet Capsule Vertical Metal Detector Machine with Reject System can detect solid particles such as tablets, soft and hard capsules, and pills. Even fine metals embedded in the product can be detected.
The characteristics of high sensitivity, high quality and reliability of Gravity Drop Tablet Capsule Vertical Metal Detector Machine make it the most suitable and effective solution for automatically removing metal contaminants in pharmaceuticals.Vertical Metal Detector Machine with Reject System can detect solid particles such as tablets, soft and hard capsules, and pills. Even fine metals embedded in the product can be detected.Welcome to consult for quotation information !
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
1.One-button intelligent operation, simple and convenient operation;
2.High-end products, with high precision, high sensitivity,Used to separate magnetic and non-magnetic metals from free-falling bulk materials.
3.It can handle various types of medicines. In order to save space, a more compact rack design is adopted.
4.For health and safety, the metal detector is made of food-grade SUS304 stainless steel;
5.Can automatically recognize product characteristics and effectively eliminate product effects;
6.The height of the probe is adjustable, and it can be customized for higher height.
7.Able to detect ferrous, non-ferrous or stainless steel, even in tiny quantities.
8.Fully FDA compliant, with in-built security and data control.
Gravity Drop Tablet Capsule Vertical Metal Detector Machine with Reject System is applicable to the pharmaceutical industry, such as tablets, capsules, powder, pills, etc.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Based on the spirit of pursuing high-quality products and customer satisfaction, Shanghai Shigan Industrial Co,.Ltd solemnly promises you with the principles of preferential prices, considerate service and reliable product quality.
1.Product quality commitment:
(1). The manufacturing and testing of products have quality records and testing data.
(2). For product performance testing, we sincerely invite users to personally check the whole process and performance of the product, and then pack and ship the product after it is confirmed to be qualified.
2. Product price commitment:
Under the same competitive conditions, our company will sincerely provide you with preferential prices on the basis of not reducing product technical performance or changing product components.
3. Delivery time commitment:
Product delivery time: Try to meet user requirements. If there are special requirements, it needs to be completed in advance, and strive to meet user needs.
