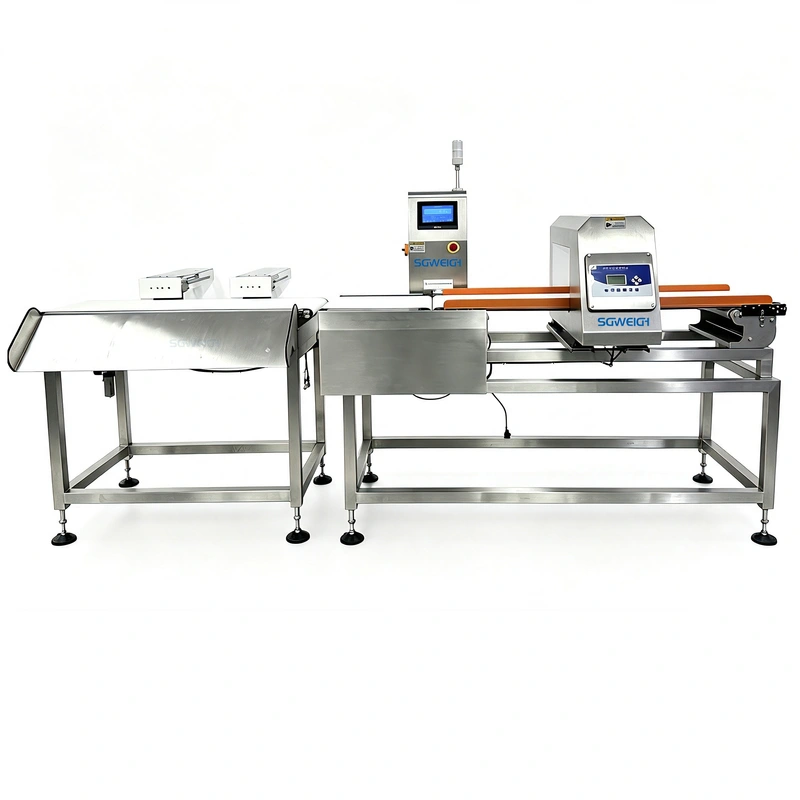

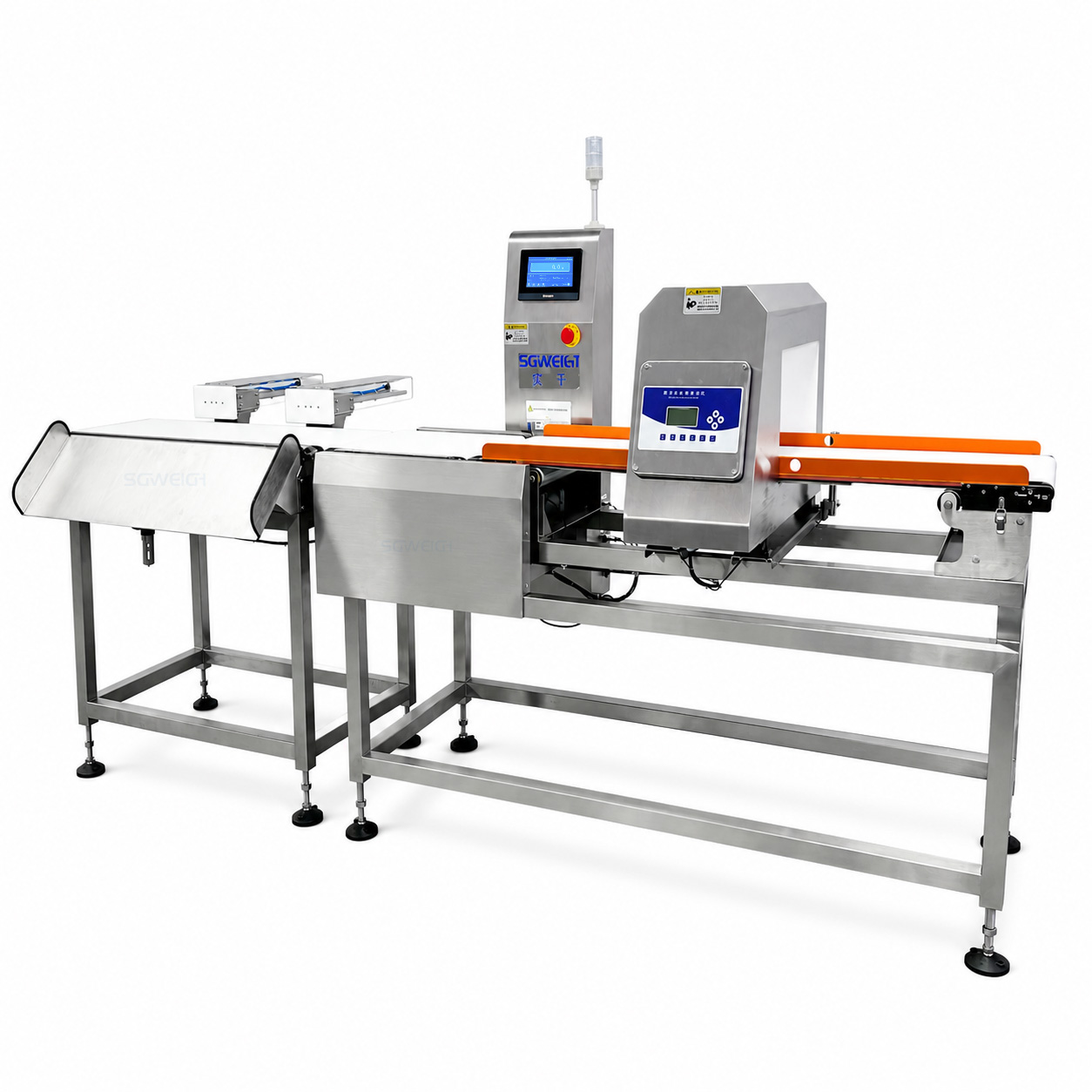

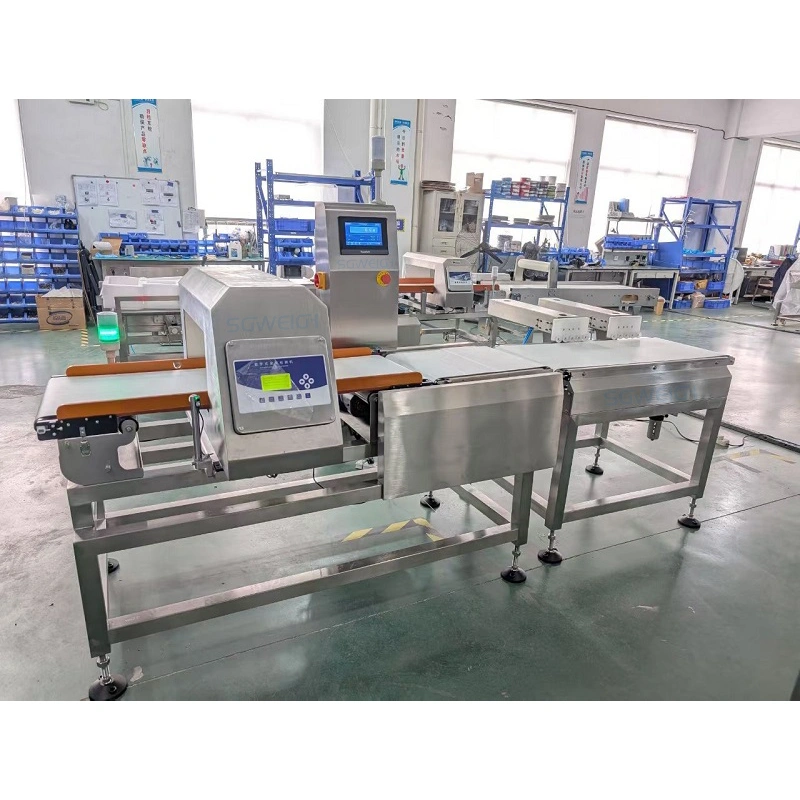

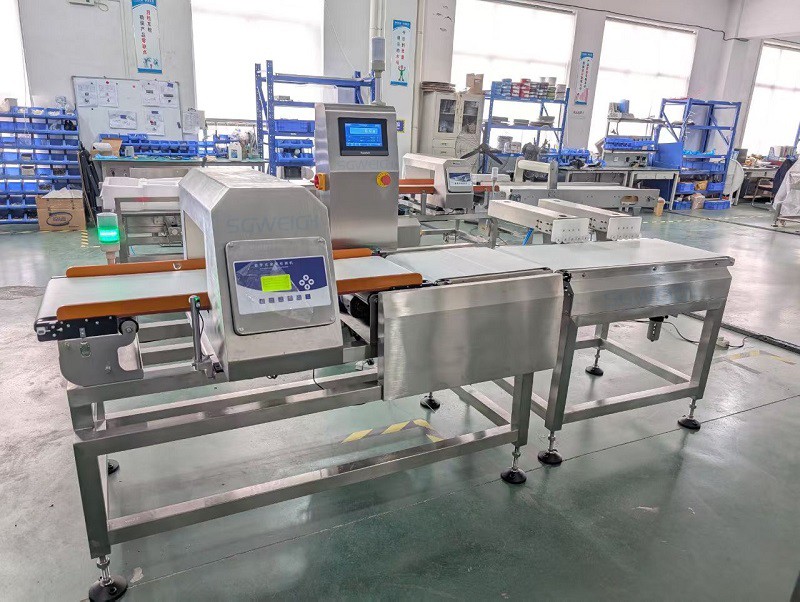

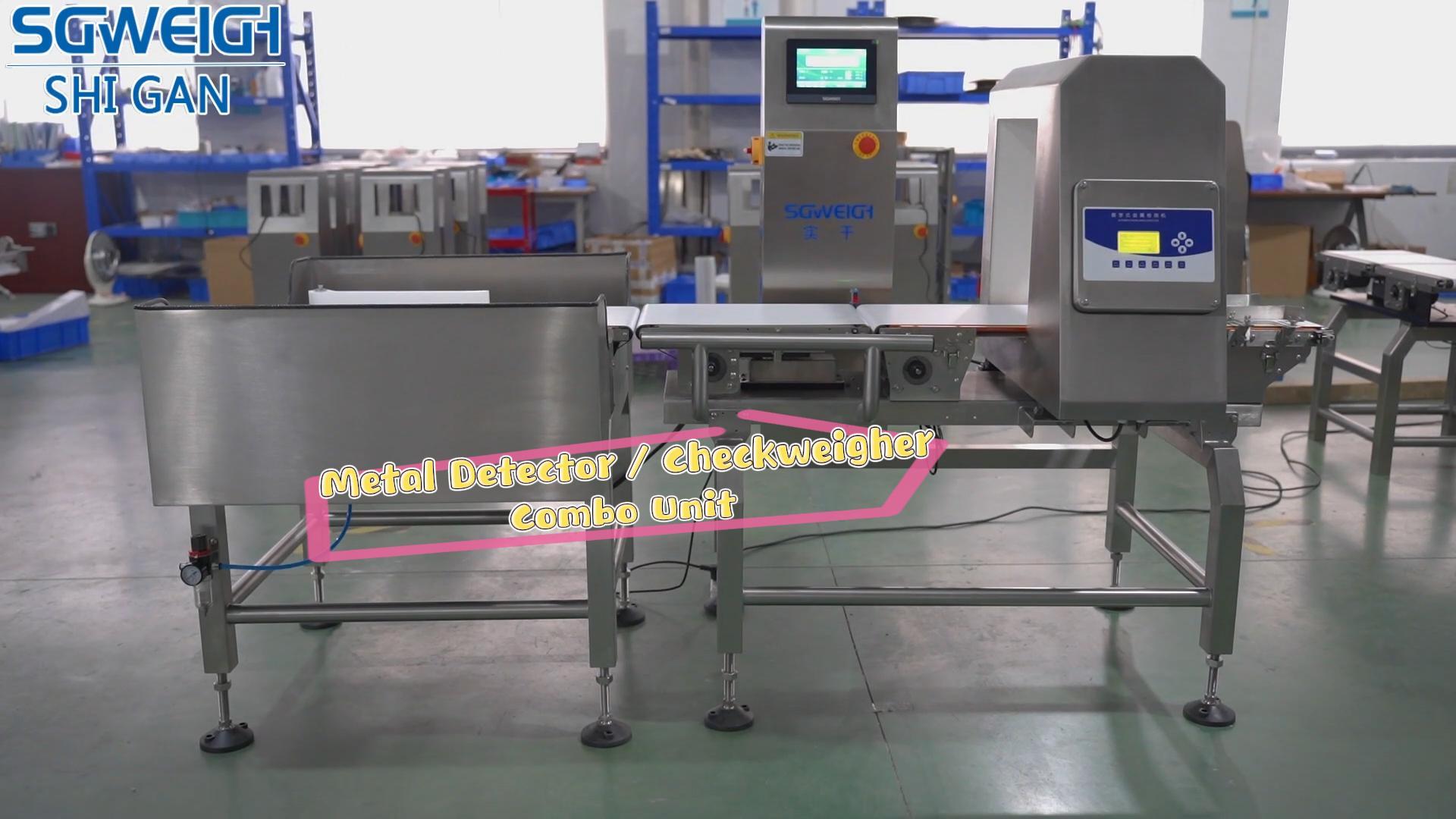

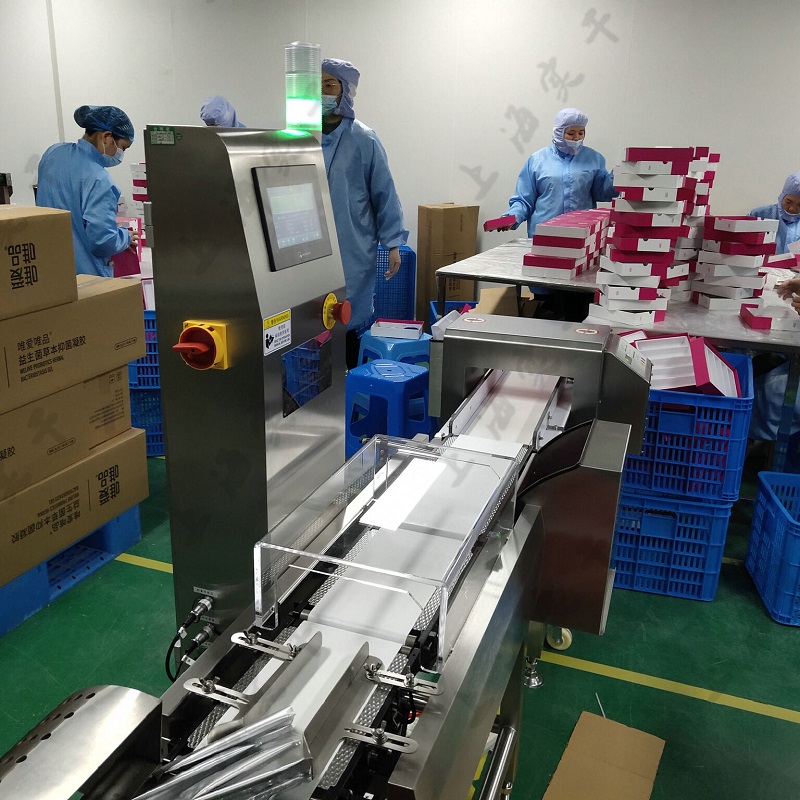

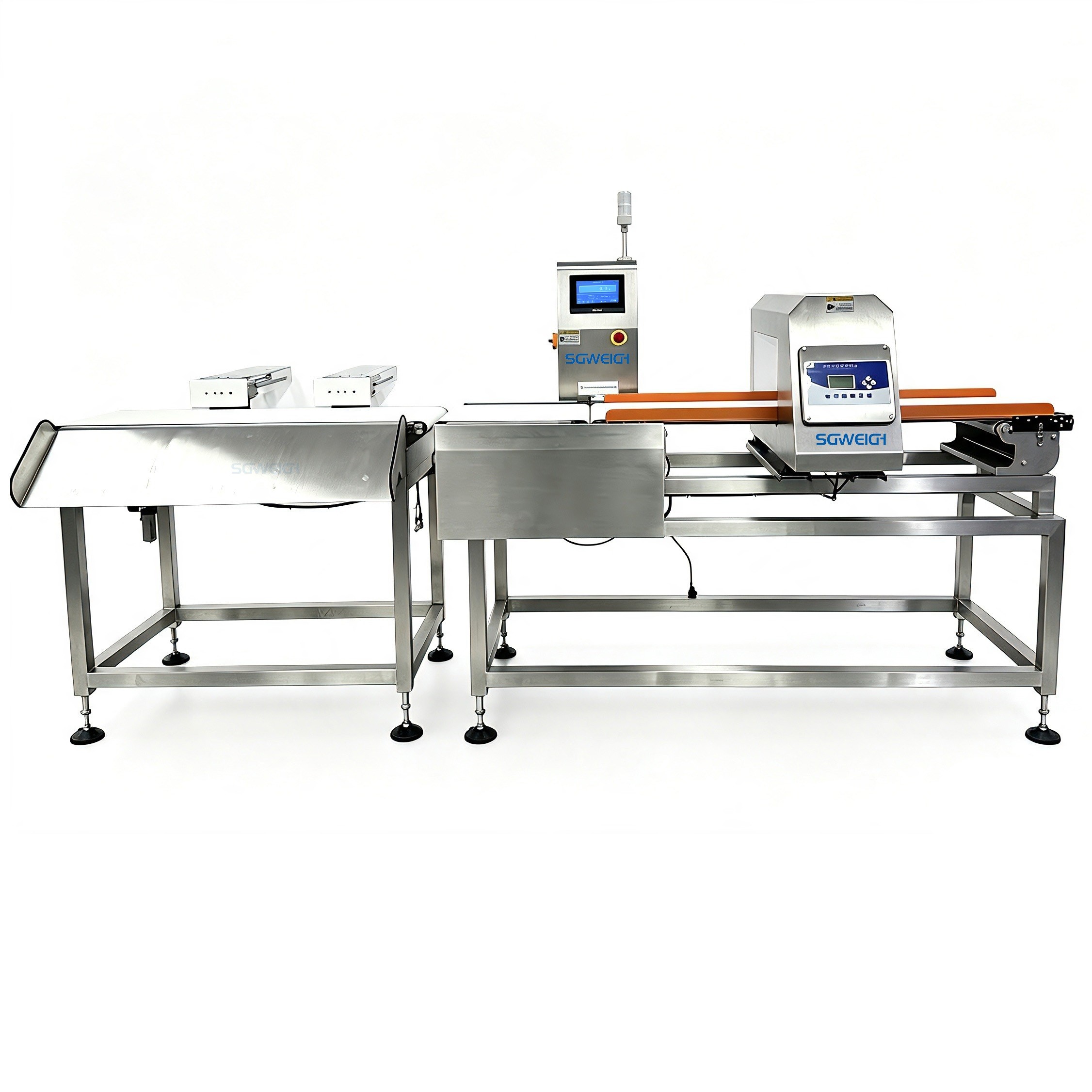

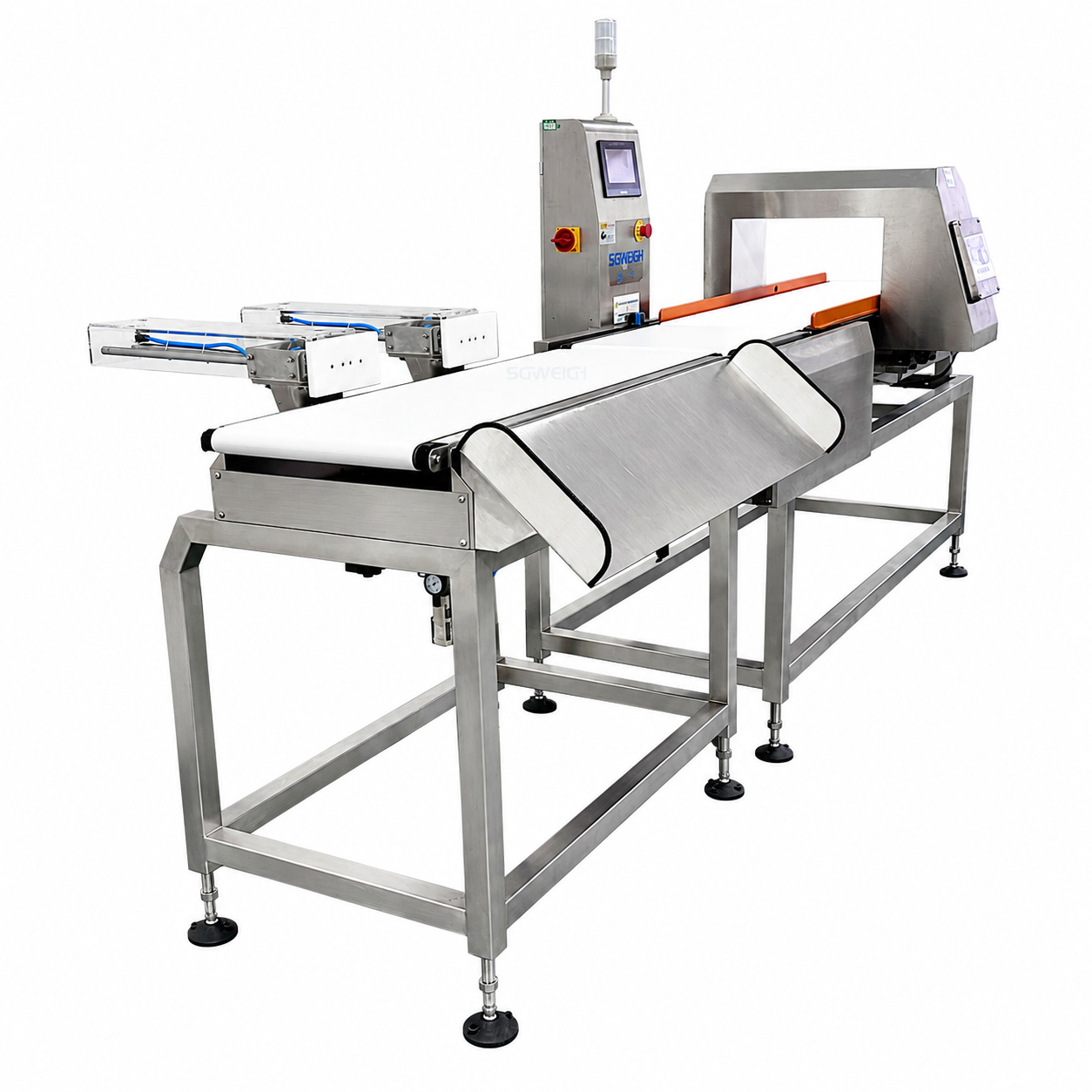

The Combination Systems Checkweigher & Metal Detector integrates an advanced dynamic checkweigher and a high-sensitivity conveyor metal detector into one compact inspection solution. Equipped with two independent reject systems,Inline Checkweigher Metal Detector can separately remove products that fail weight inspection and products contaminated with metal, ensuring maximum inspection accuracy and minimizing false rejects.
Designed for food, beverage, confectionery, bakery, frozen food, dairy, seafood, snacks, pet food, chemical, and daily consumer goods industries.

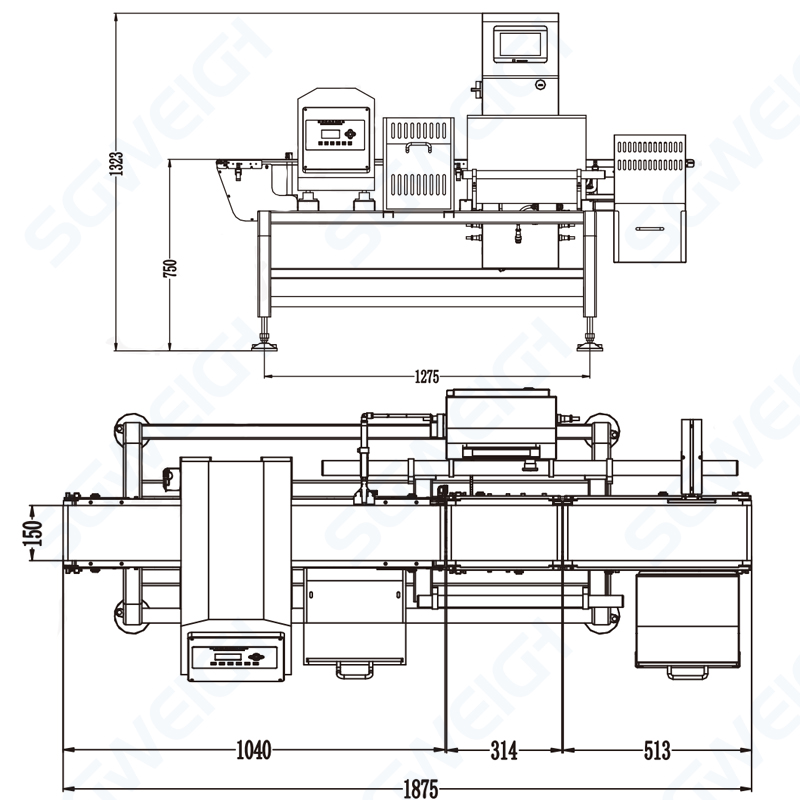

Model: SG-JS150
Detection hole width: 150mm
Detection hole height: 100-200mm
Detection sensitivity:
H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm
H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective detection hole width: 150mm
Effective detection hole height: 100-200mm
Weighing range: 5-500g
Weighing accuracy: ±0.1g(Depends on products)
Conveyor belt height: 750mm (±50mm)
Conveying capacity: 10Kg/time
Delivery direction: from left to right
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED LCD flat button input
Power requirements: AC220V 50HZ
Power: 300W
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!

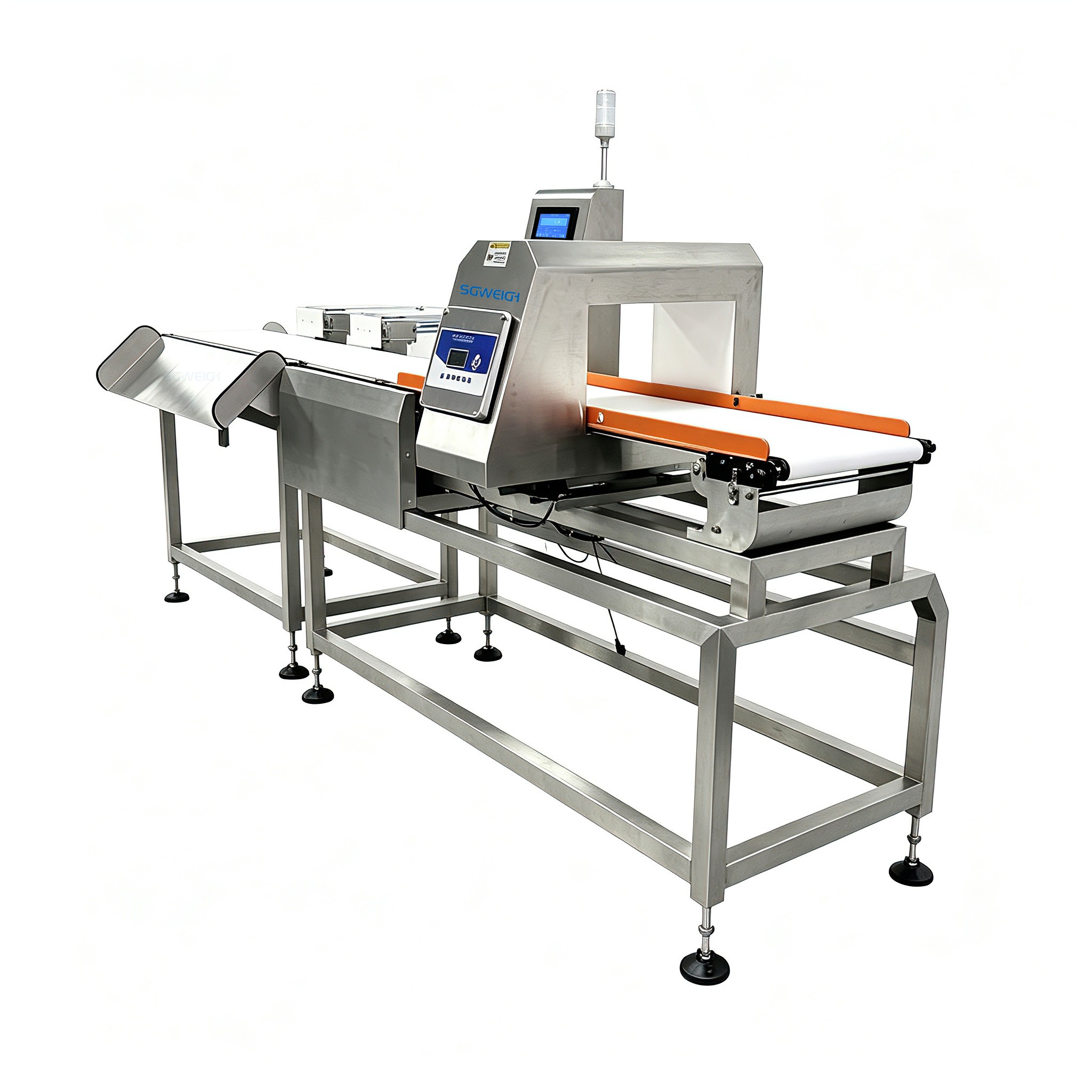

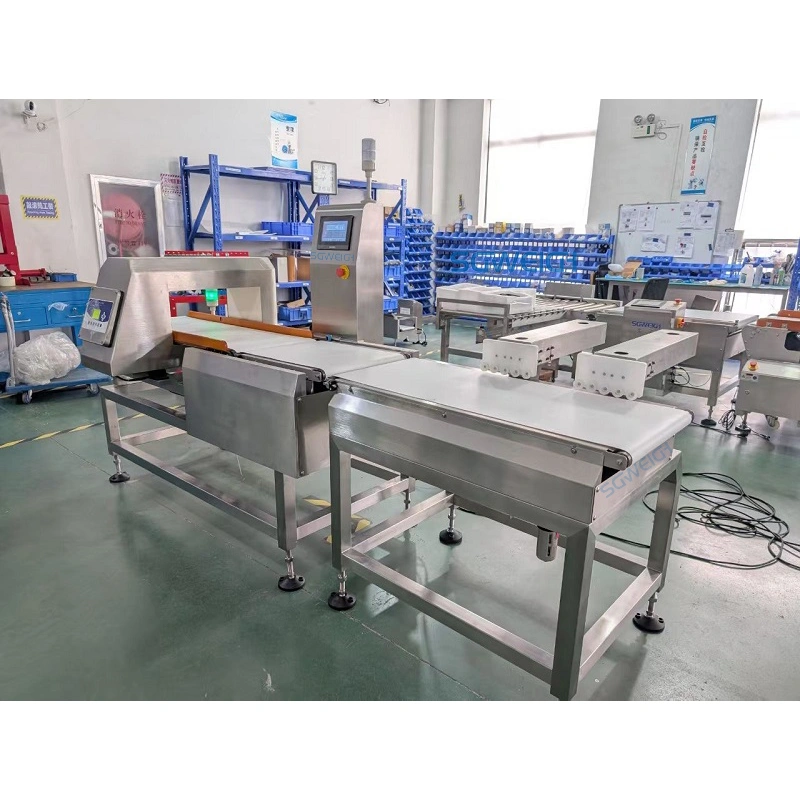

1.Dual Independent Reject Systems for separate rejection of overweight/underweight products and metal-contaminated products.
2.High-Speed Dynamic Checkweighing with precise weight verification during continuous production.
3.High-Sensitivity Metal Detection capable of detecting ferrous, non-ferrous, and stainless steel contaminants.
4.Compact Integrated Design saves valuable factory floor space and reduces installation costs.
5.Automatic Product Learning for fast product changeover and simplified operation.
6.Multi-Product Memory stores hundreds of inspection parameters for quick recipe switching.
7.Real-Time Production Monitoring with statistical reports, alarms, and inspection history.
8.Modular Stainless Steel Construction designed for hygienic production environments.
9.Multiple Reject Options including air blast, pusher, swing arm, drop flap, retracting belt, and dual reject mechanisms.
10.Easy Integration with packaging machines, labeling systems, carton sealers, case packers, and palletizing lines.
11.Data Communication supports Ethernet, USB, RS232, TCP/IP, MES, ERP, and factory automation systems.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
