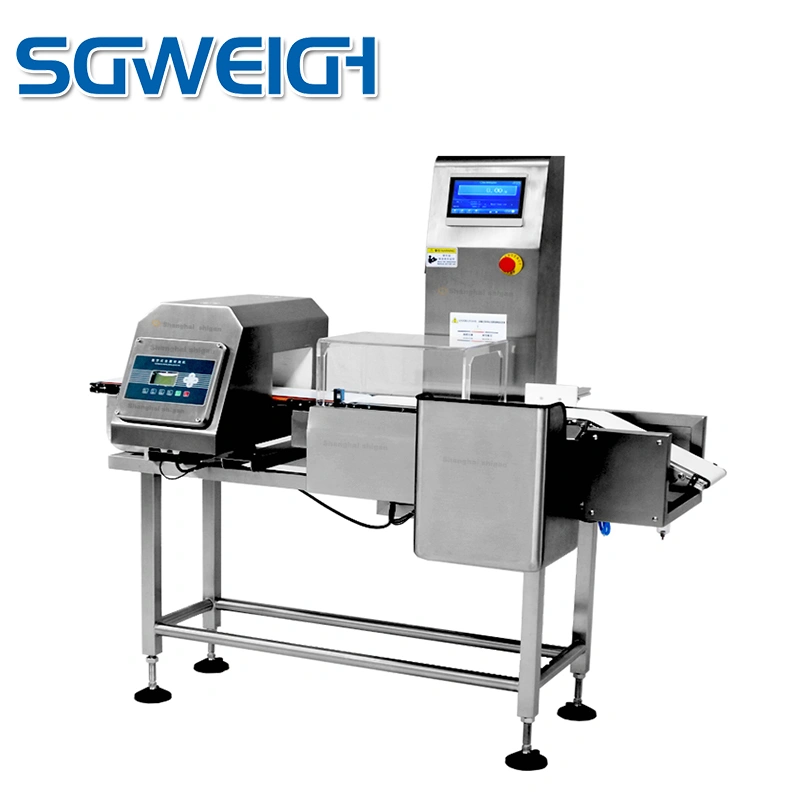

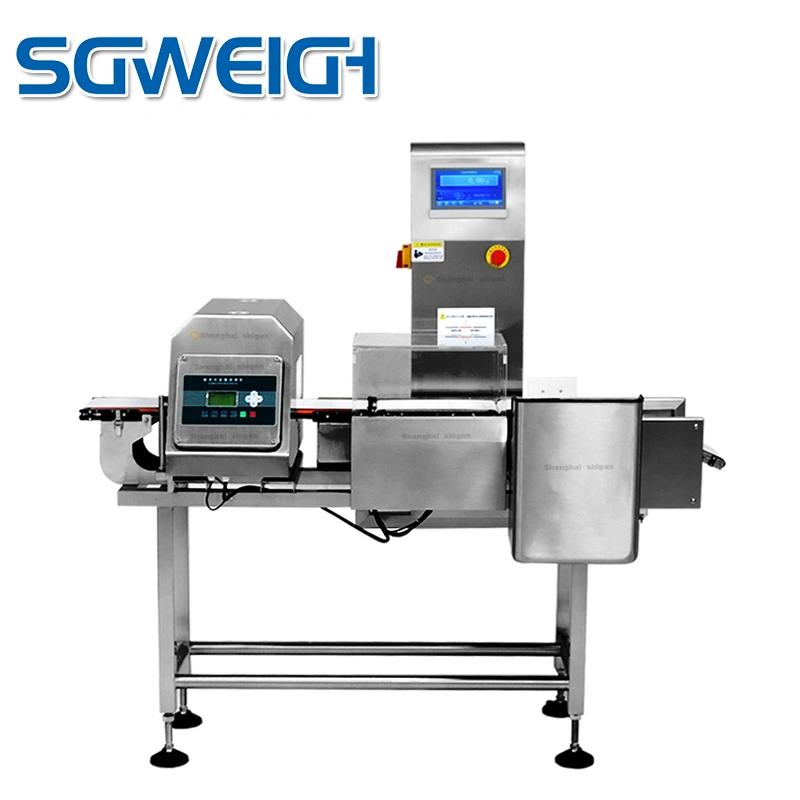

Intelligent Stability Stainless Steel Metal Detection and Weighing Machine is mainly used in various automated assembly lines and aquatic products, food and other industries.Seamlessly connects the rapid weight inspection and metal detection of assembly line products,enabling product switching without stopping the machine.Welcome to consult for quotation information!
Model: SG-JS150
Detection hole width: 150mm
Detection hole height: 100-200mm
Detection sensitivity:
H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm
H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective detection hole width: 150mm
Effective detection hole height: 100-200mm
Weighing range: 5-500g
Weighing accuracy: ±0.1g(Depends on products)
Conveyor belt height: 750mm (±50mm)
Conveying capacity: 10Kg/time
Delivery direction: from left to right
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED LCD flat button input
Machine weight: 240kg
Power requirements: AC220V 50HZ
Power: 300W

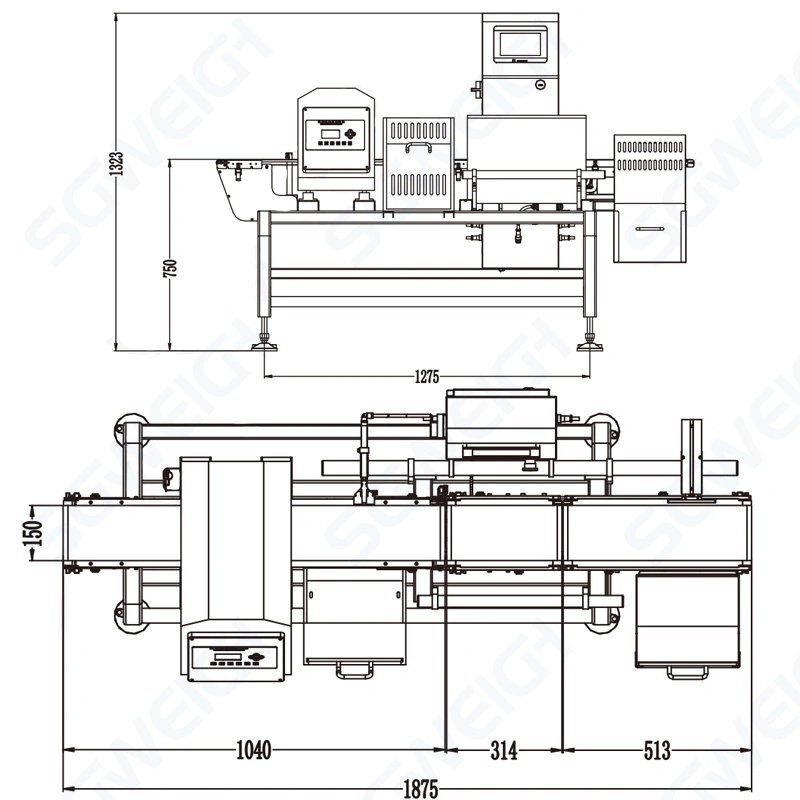

Dimensions: about L2267×W589×H1500mm (final design shall prevail)
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1.It has an ingenious structure, takes up less space, is easy to connect to the production line,has high detection sensitivity and is easy to operate.It can save production line space to the maximum extent and achieve more quality control.
2.Advanced technology, applying the latest multi-frequency detection technology, automatic material effect elimination technology, automatic balancing technology,and adaptive adjustment technology, bringing the equipment the simplest operation, the best environmental suitability and stability in the industry.
3.All stainless steel shock-absorbing structure design and manufacture,to ensure long-term stability and service life.
4.Can record detection parameters suitable for 100 different products, avoiding detection errors due to manual differences and avoiding downtime for product replacement.
5.The low-power design and fully sealed design ensure the protection effect with the body structure,reaching the IP65 protection level and a service life of more than 15 years.
