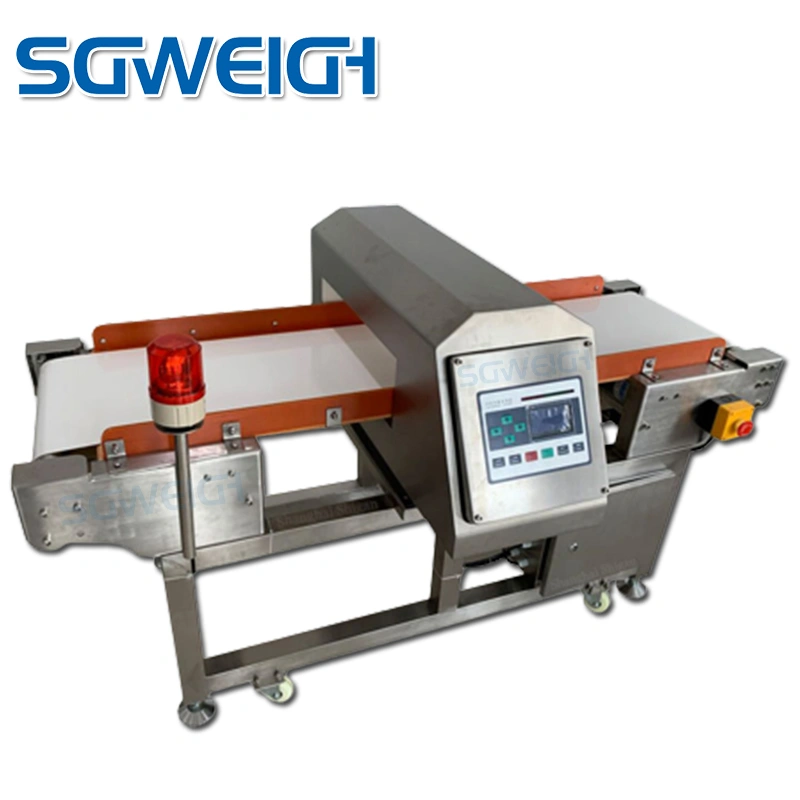

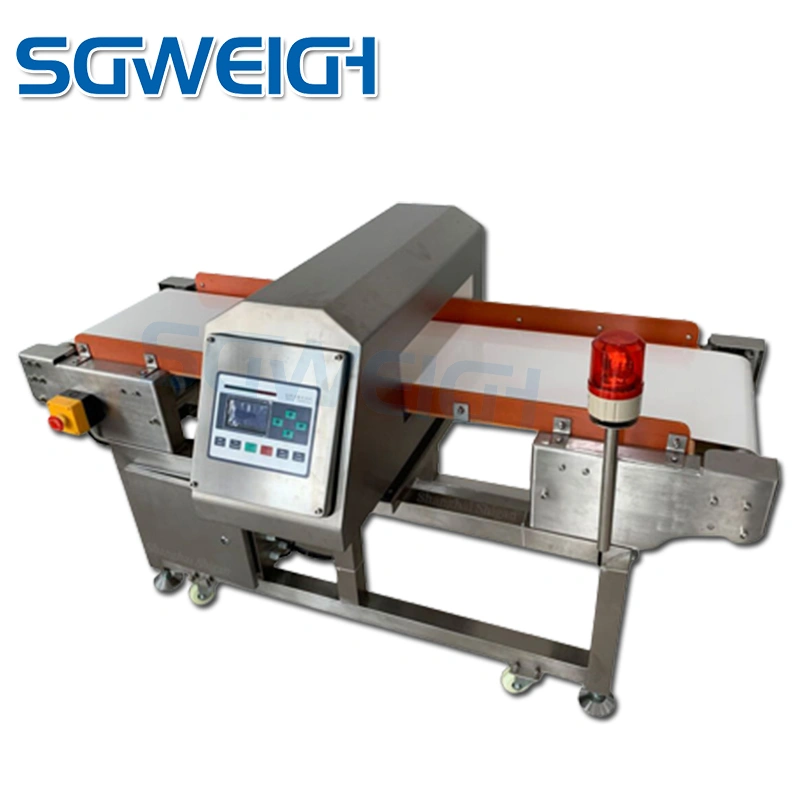

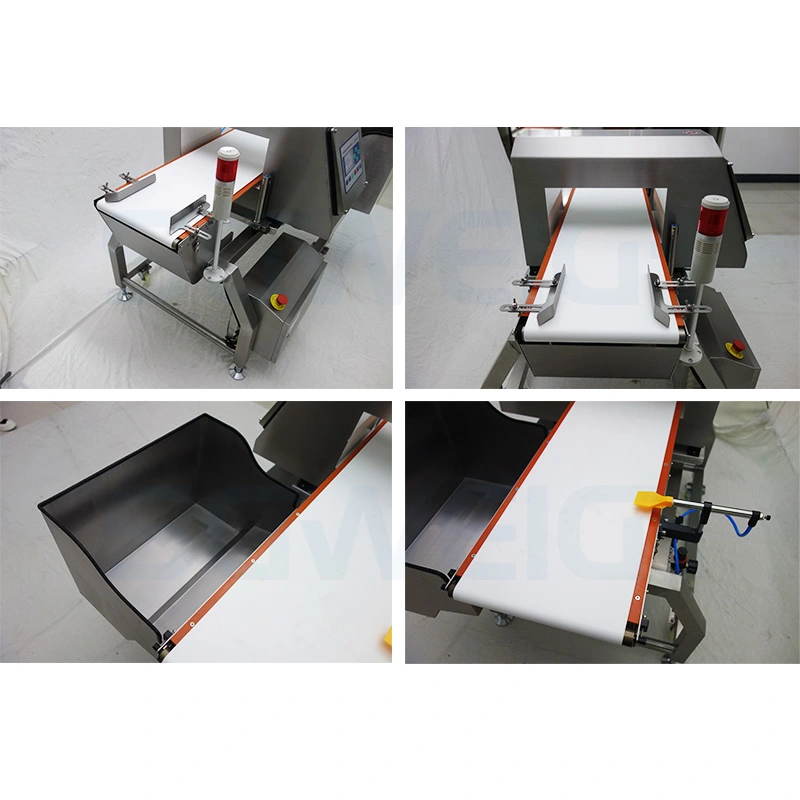

Intelligent Belt Conveyor Type Customized Metal Detector can detect all metal impurities from packaged products or bulk materials,including iron,stainless steel,copper,aluminum,etc.Even fine metals embedded in products can be identified.This Metal Detector For Bulk/Packaged Product is used to detect metal impurities and metal foreign objects in food,bread,steamed buns,dumplings,biscuits and other products,as well as in pharmaceuticals,toys, clothing,shoemaking,chemicals,leather,knitting and other industries.Detect metal impurities mixed into products or raw materials during production and processing.Welcome to consult for quotation information !
SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal
Dimensions: about L1500×W850×H950mm
◆This machine is made of all stainless steel 304 mirror, and the conveyor belt is a standard white non-toxic food-grade hygienic conveyor belt.
◆The new digital machine is fully functional and has a memory function. Can store 100 product testing parameters.
◆LCD screen display, Chinese and English menu screen, easy to operate.
◆Adopting German professional detection technology and balanced principle, the detection accuracy is high and the working performance is more stable and reliable.
◆Complementing the shortcomings of the analog machine, DSP and microcontroller are combined to perform data sampling and data processing on the detection signal, which improves the detection effect.
◆New circuit design, with extremely high detection sensitivity and phase adjustment technology, can adjust the product and effectively suppress product effects.
◆Can detect iron, non-iron, stainless steel, copper, aluminum and non-ferrous metals and other materials.
◆It has self-learning ability, detects a wide range of materials, and has super anti-interference and shock-proof capabilities.
◆Support 24-hour uninterrupted work.
◆Good waterproof performance, suitable for humid, cold storage and other environments.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Based on the spirit of pursuing high-quality products and customer satisfaction, Shanghai Shigan Industrial Co,.Ltd solemnly promises you with the principles of preferential prices, considerate service and reliable product quality.
1.Product quality commitment:
(1). The manufacturing and testing of products have quality records and testing data.
(2). For product performance testing, we sincerely invite users to personally check the whole process and performance of the product, and then pack and ship the product after it is confirmed to be qualified.
2. Product price commitment:
Under the same competitive conditions, our company will sincerely provide you with preferential prices on the basis of not reducing product technical performance or changing product components.
3. Delivery time commitment:
Product delivery time: Try to meet user requirements. If there are special requirements, it needs to be completed in advance, and strive to meet user needs.
