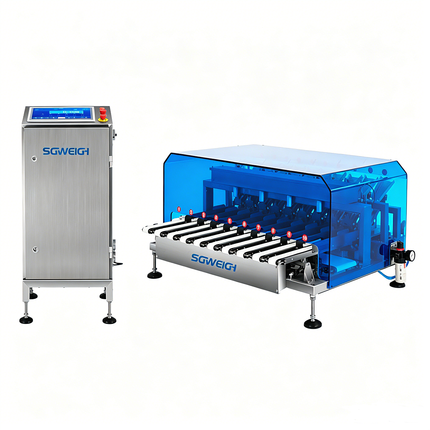

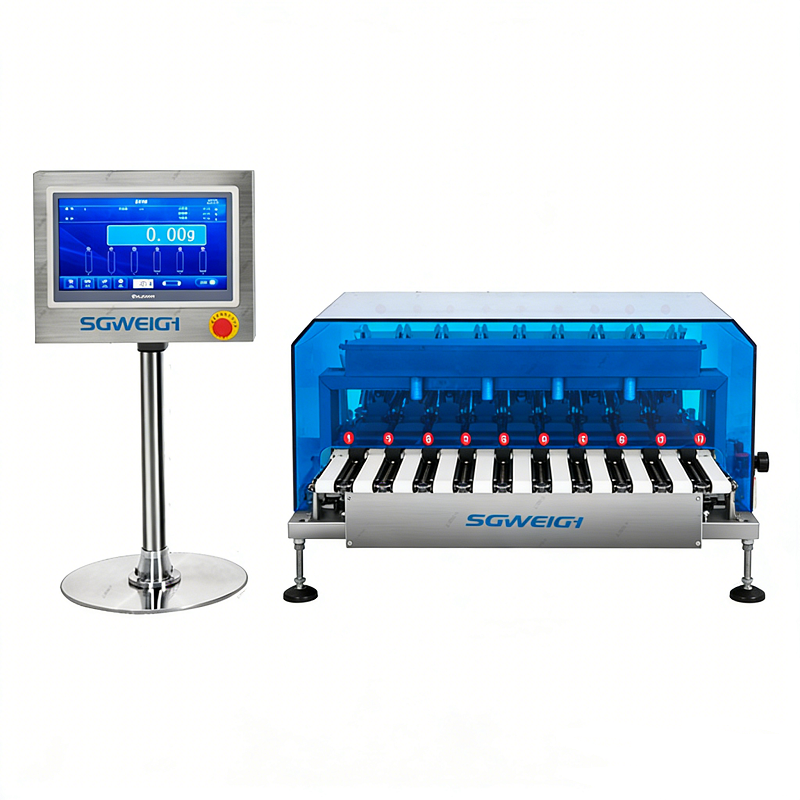

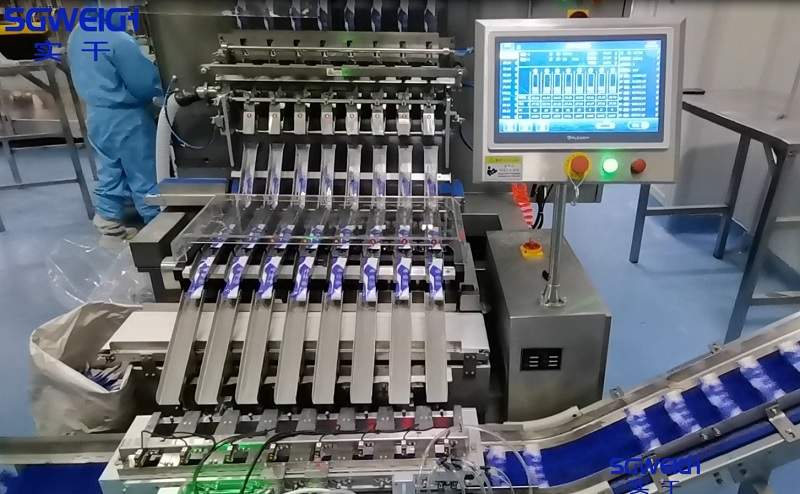

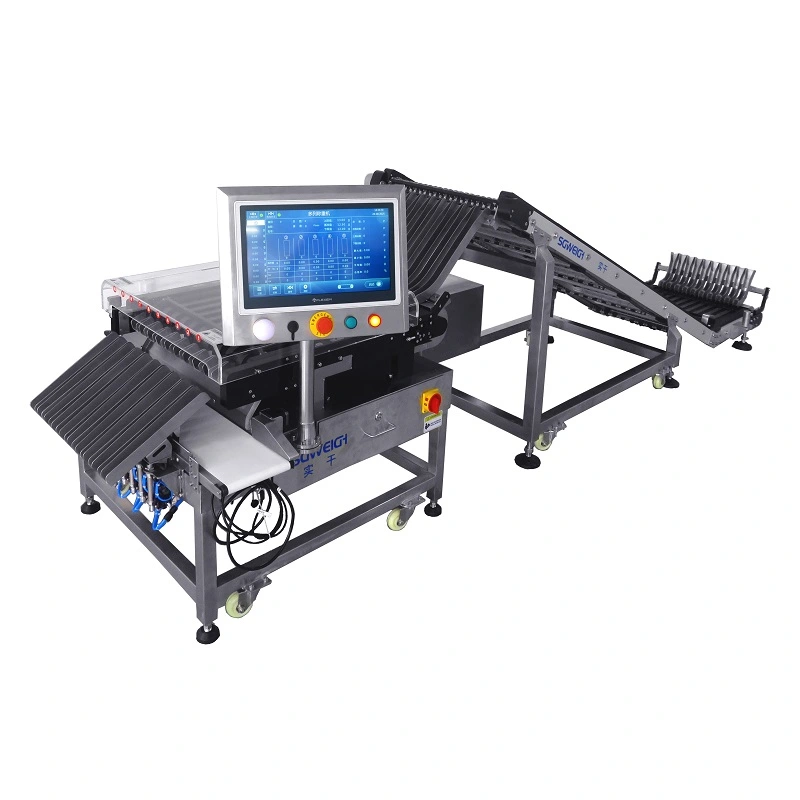

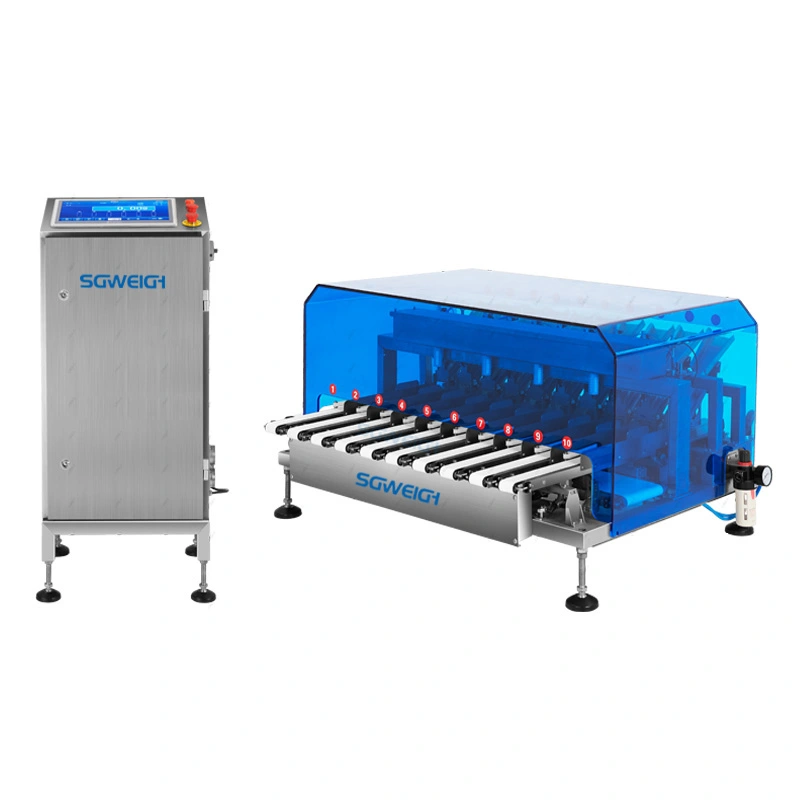

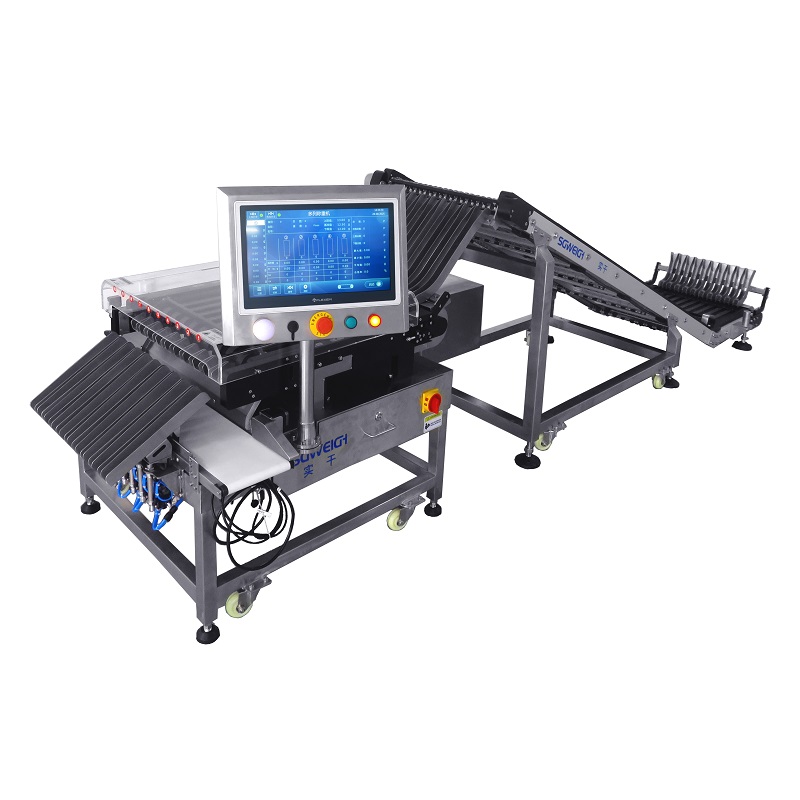

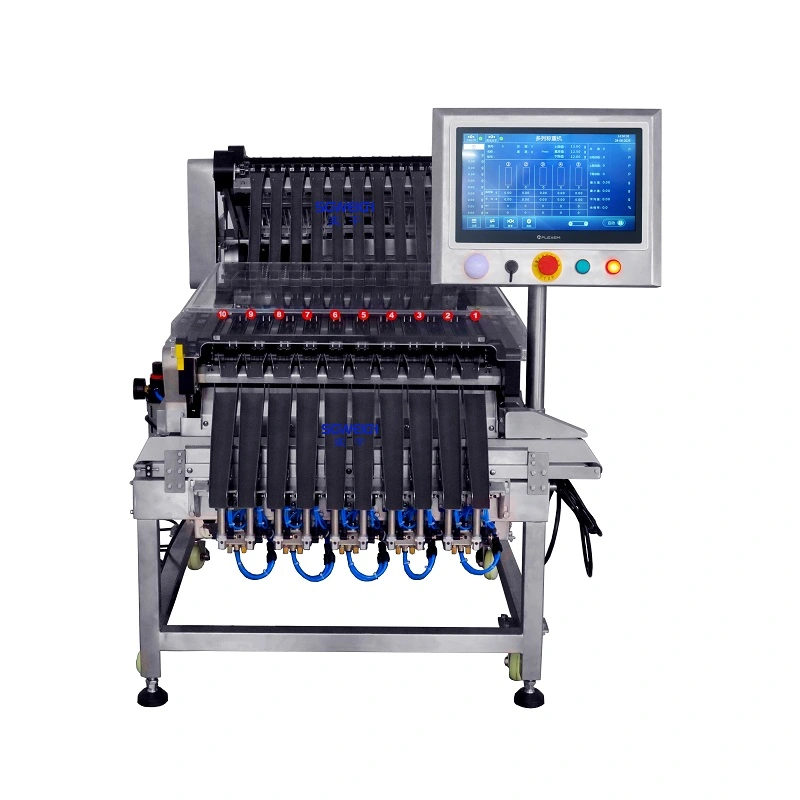

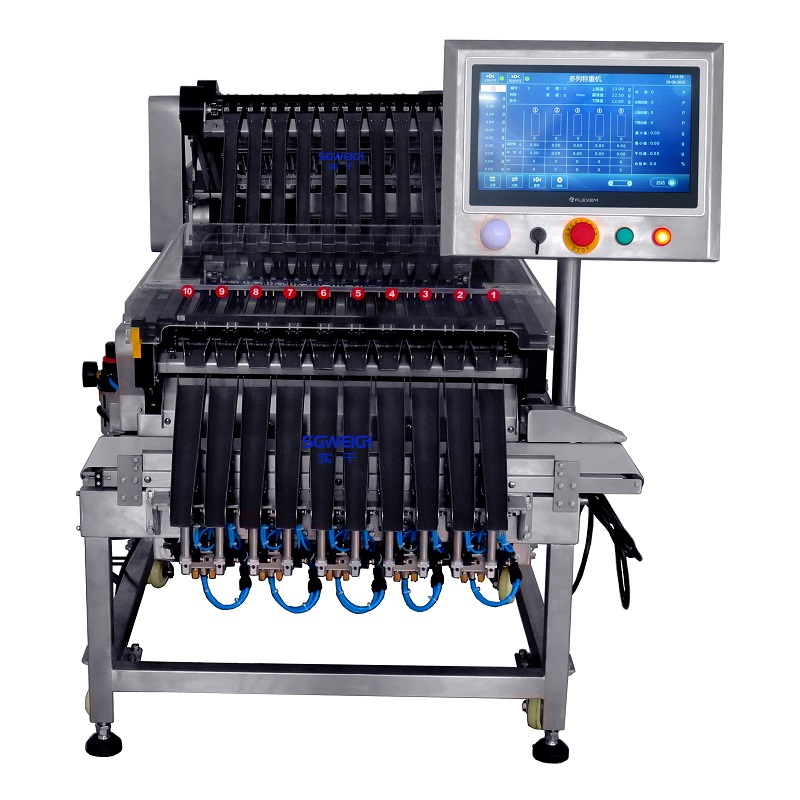

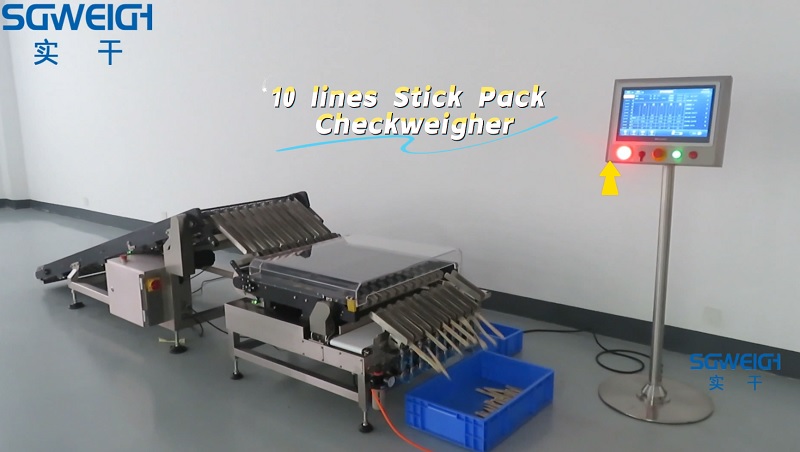

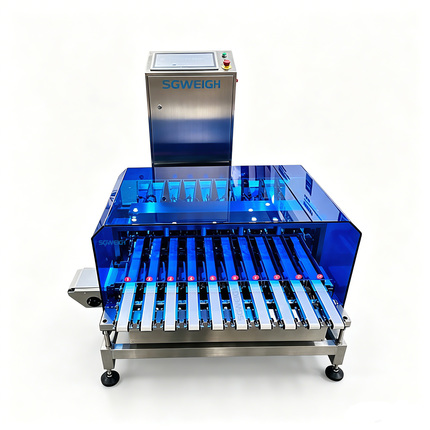

The 10-Lane Sachet Checkweigher is a high-speed, multi-lane dynamic weighing system specifically engineered for 10-lane sachet packaging machines.Multi-Lane Pouch Checkweigher performs simultaneous inline weight inspection across ten independent lanes, ensuring every sachet meets the specified weight tolerance before leaving the production line.
Designed with high-precision load cells, independent weighing channels, and an intelligent rejection system, the 10-lane sachet checkweigher delivers reliable weighing accuracy even at high production speeds.
Type:SG-10XM
Weighing scope:2-300g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Highest speed:70pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
Multi-channel passing products to improve production efficiency (the number of channels can be customized)
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1.Simultaneous weighing of 10 independent packaging lanes.
2.High-speed dynamic weighing with excellent repeatability.
3.High-precision digital load cell technology.
4.Individual lane monitoring and data recording.
5.Automatic rejection of underweight and overweight sachets.
6.Compatible with stick pack and sachet packaging machines.
7.Stainless steel SUS304 hygienic construction.

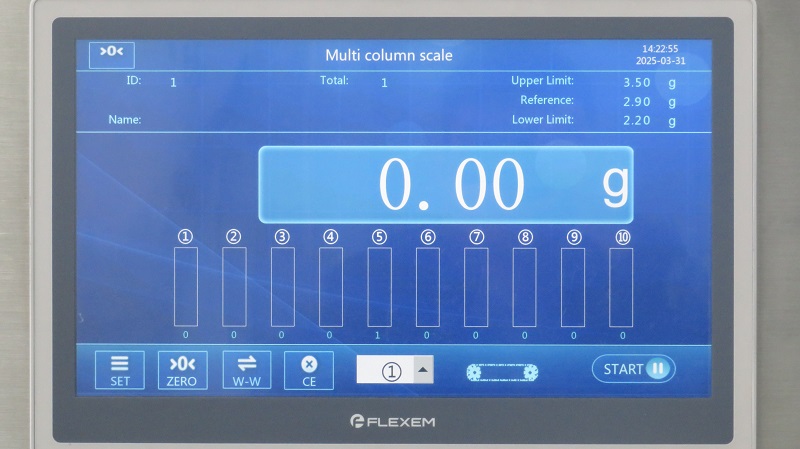

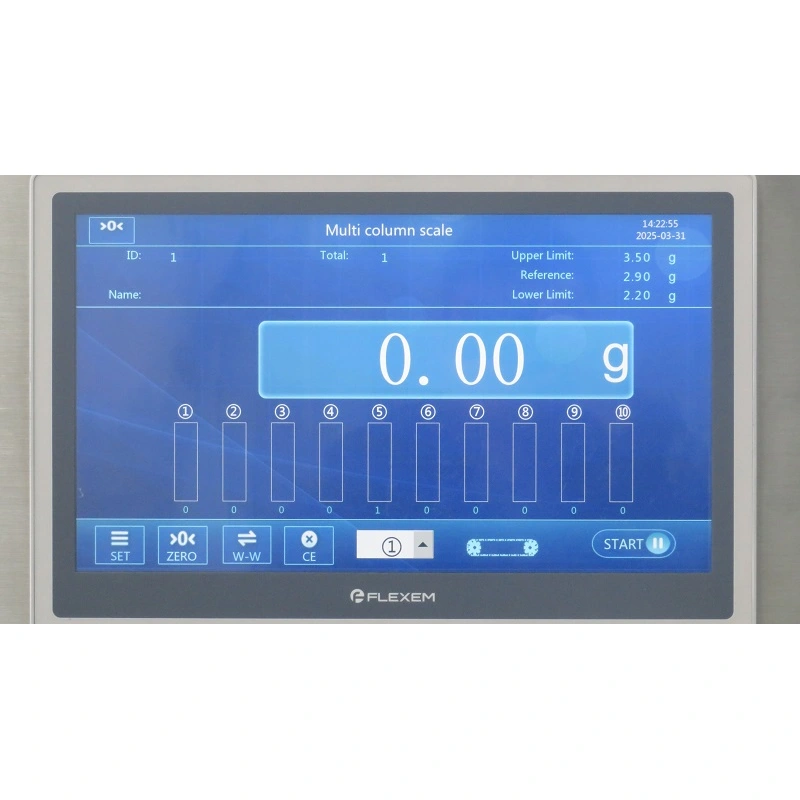

8.User-friendly color touchscreen with recipe storage.
9.Production statistics and weight trend analysis.
10.Supports USB, Ethernet, RS232 and PLC communication.
11.Easy cleaning and low-maintenance modular design.
12.Customizable lane width and conveyor configuration.
13.Optional barcode, printer, MES and ERP integration.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
