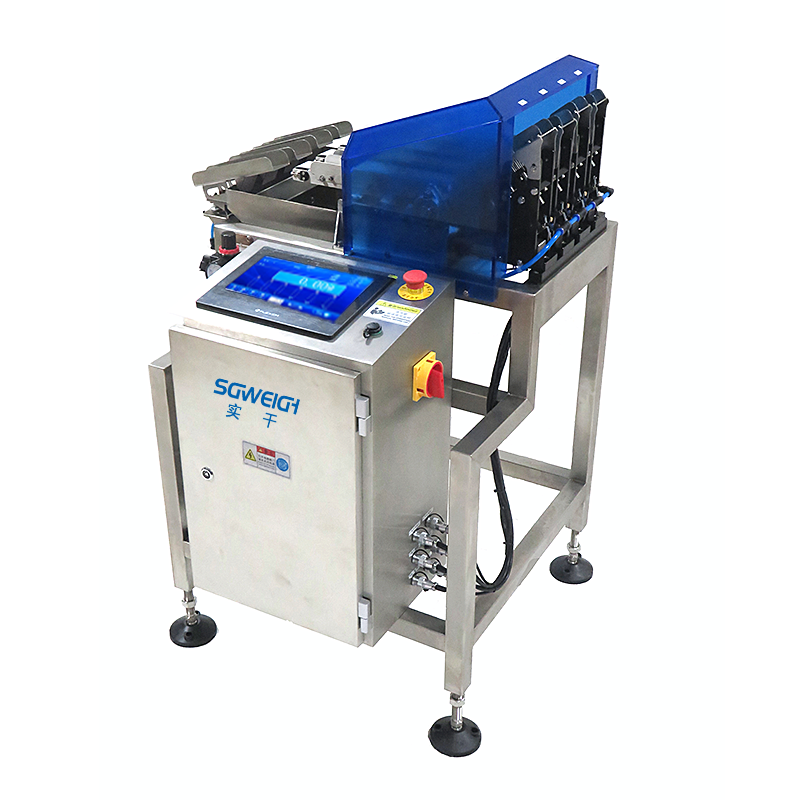

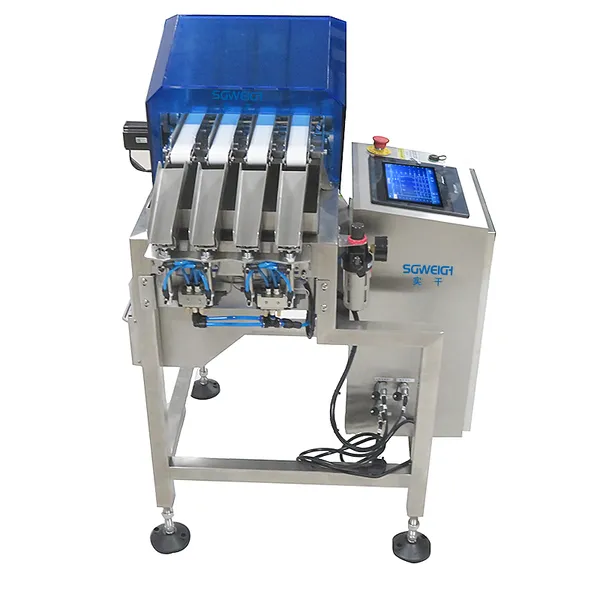

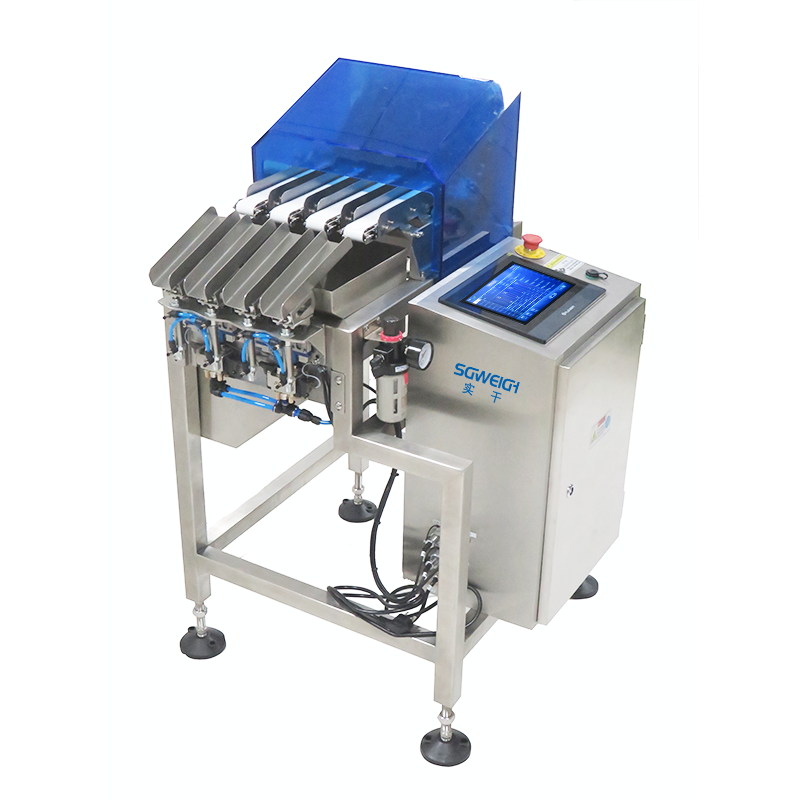

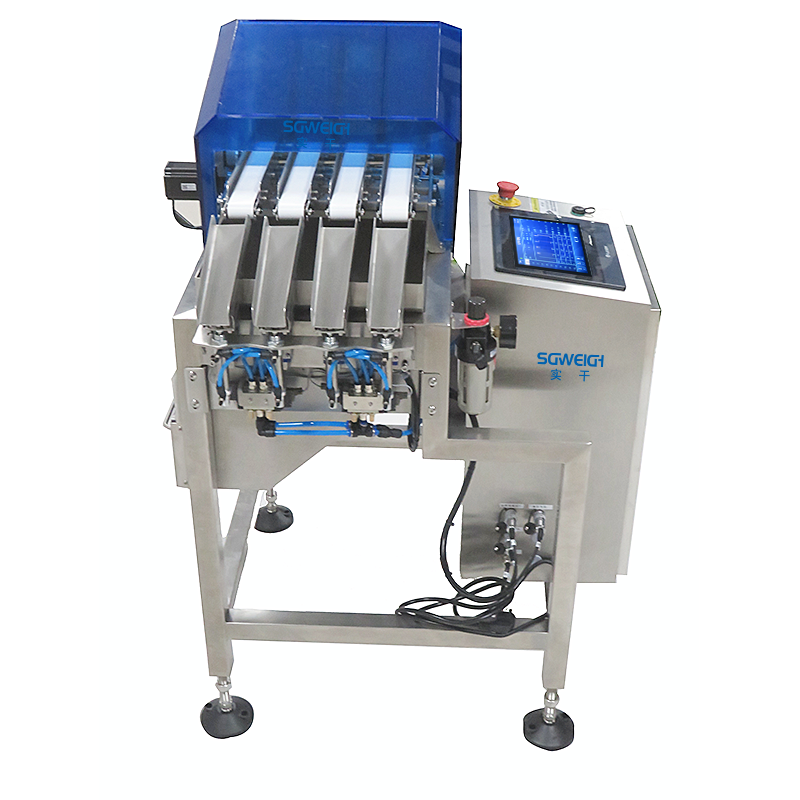

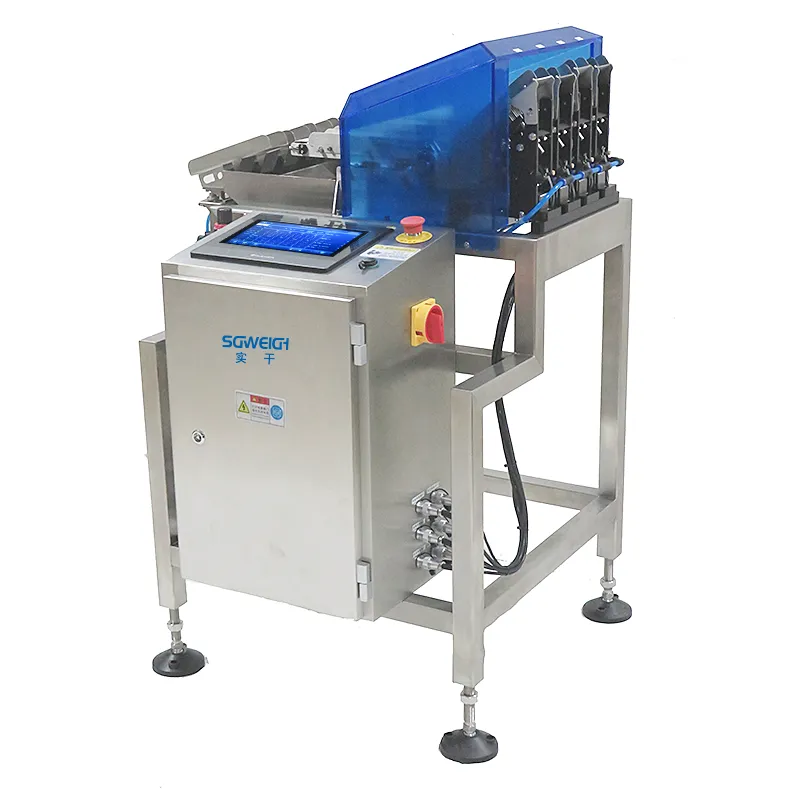

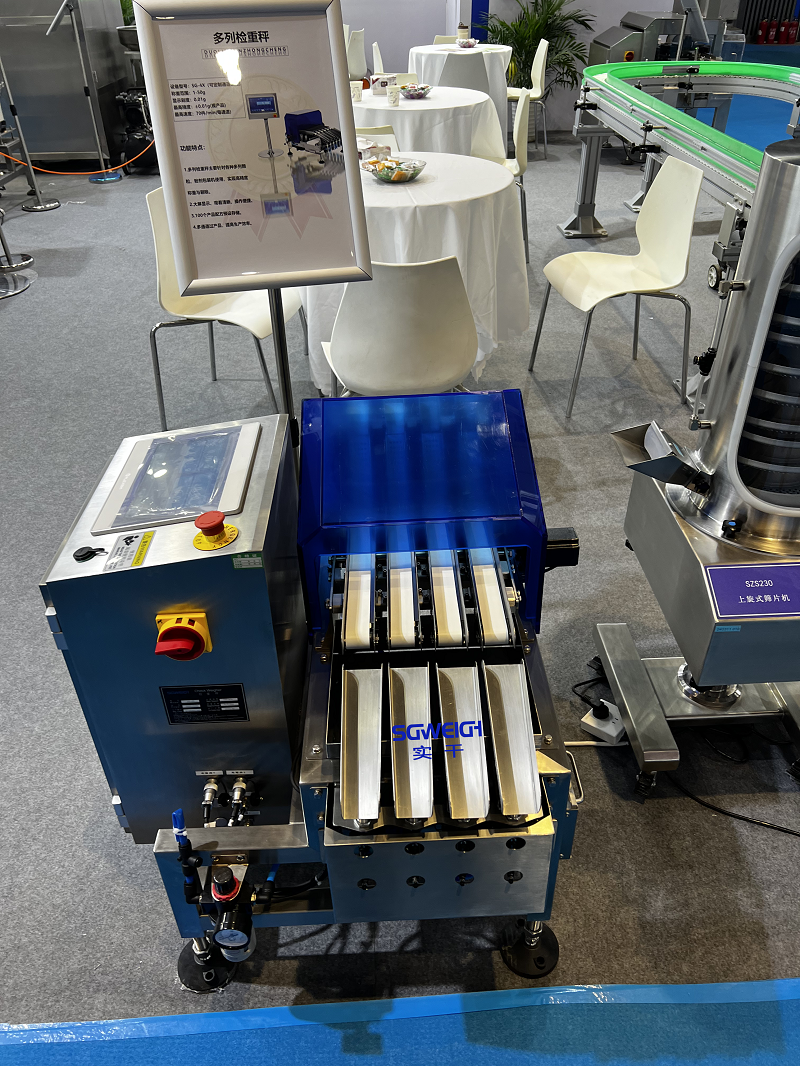

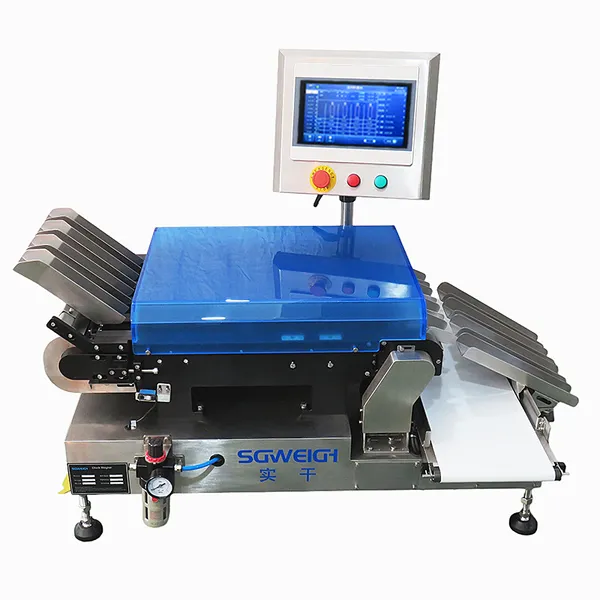

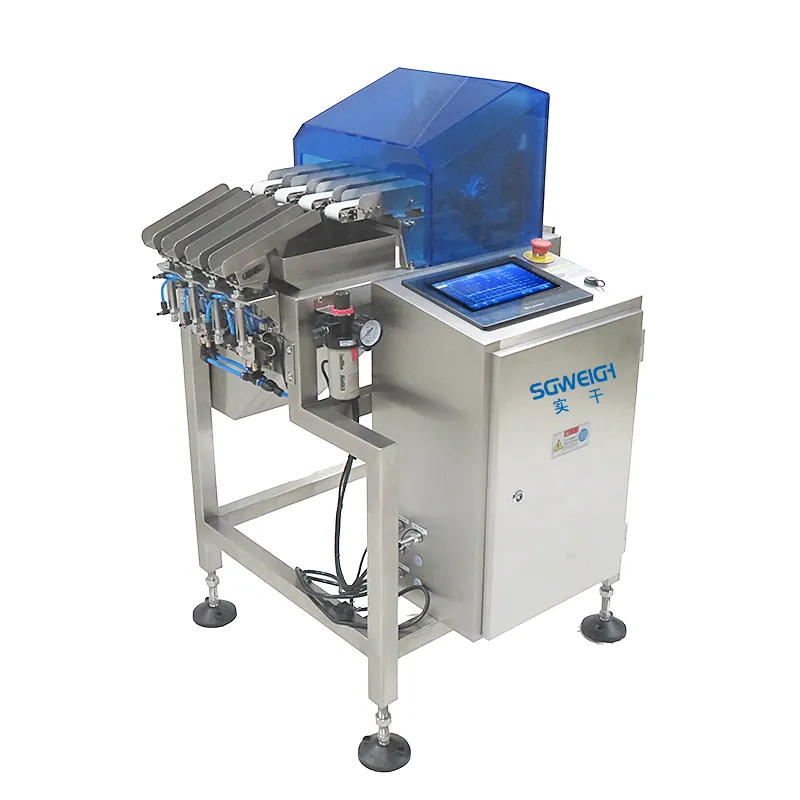

The SG-4X Multi-Track Stick Check Weigher is weighed in a static way. When the product falls to the weighing end through the slideway, there is a blocking mechanism in front of the weighing end.After the weighing is completed, the blocking mechanism rises and the product weight is qualified.The product slides all the way to the end.When the weight of the product is unqualified,the rejecting device is turned up,the product falls into the unqualified area, and is output from the side by the conveyor.
Model:SG-4X
Weighing range:0.5-100g
Accuracy:0.01g (Depends on products)
Weighing speed:The single-lane speed can reach up to 40-60 pcs/min (depending on the length of the product)
Restrictions of product:L:180 W:40 H:2-20(mm)
Operation way:Touch screen
Operation screen:12 inch screen
Material:Stainless steel（SUS304）
Power supply:220V 50-60HZ
Power:About 200W

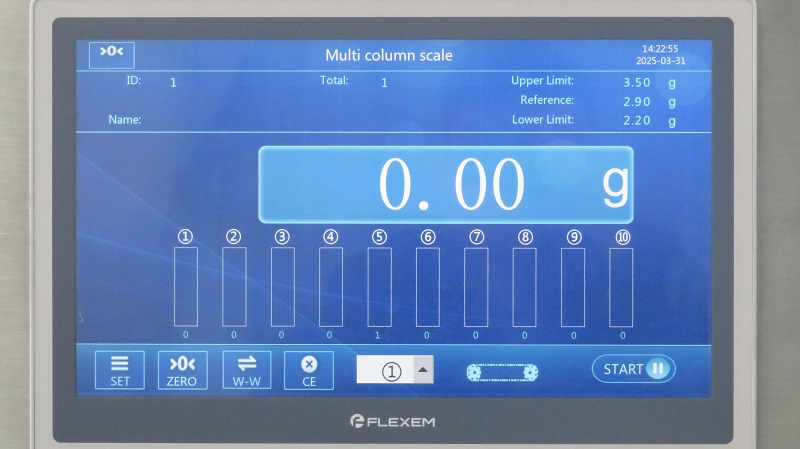

1.Large-size color LCD touch screen interface,simple operation and intuitive display.
2.Support multi-language languages: customized languages, the default is Chinese and English.
3.It can store 100 kinds of product test data and facilitate user .
4.USB data storage interface can transfer report data to PC for analysis and printing.
5.Set password protection for parameters and only manage personnel operation.
6.Automatic zero tracking system to ensure reliable detectiondata.
7.Data external communication interface, which can connect other equipment in production line(eg: labeling machine and printer) (customer customization).
8.Mechanical structure is simple, easy to disassemble and clean maintenance.
1.Used for automatic weight detection, upper and lower limit discrimination or weight grading ofvarious automatic assembly lines and logistics delivery systems,
2.Widely used for online testing in pharmaceutical, food, toy, hardware and chemical industries.
3.In addition, the artificial weighing can be replaced directly, thus improving the production efficiency and weighing consistency and reliability.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.

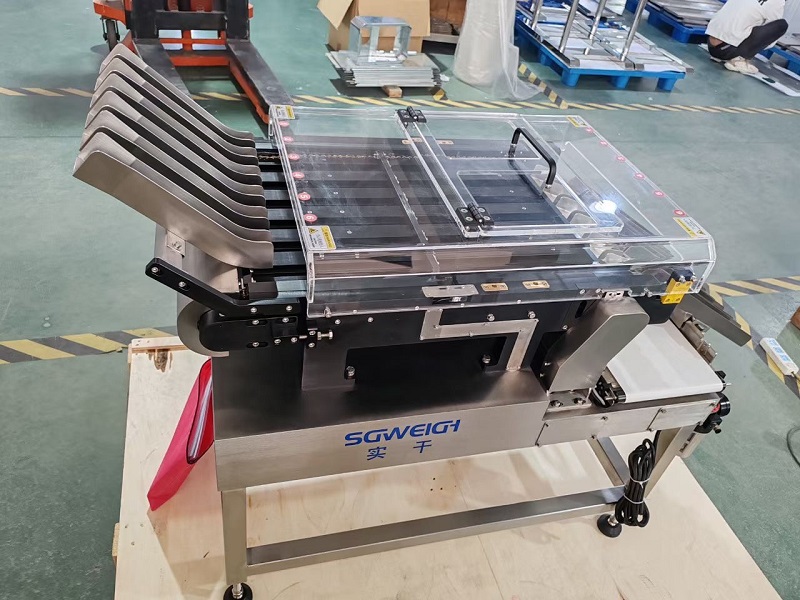

2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
