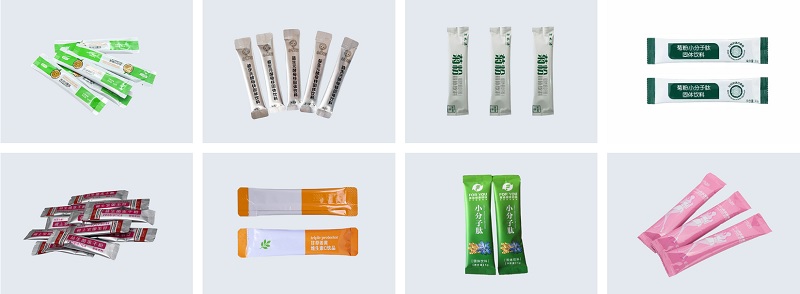

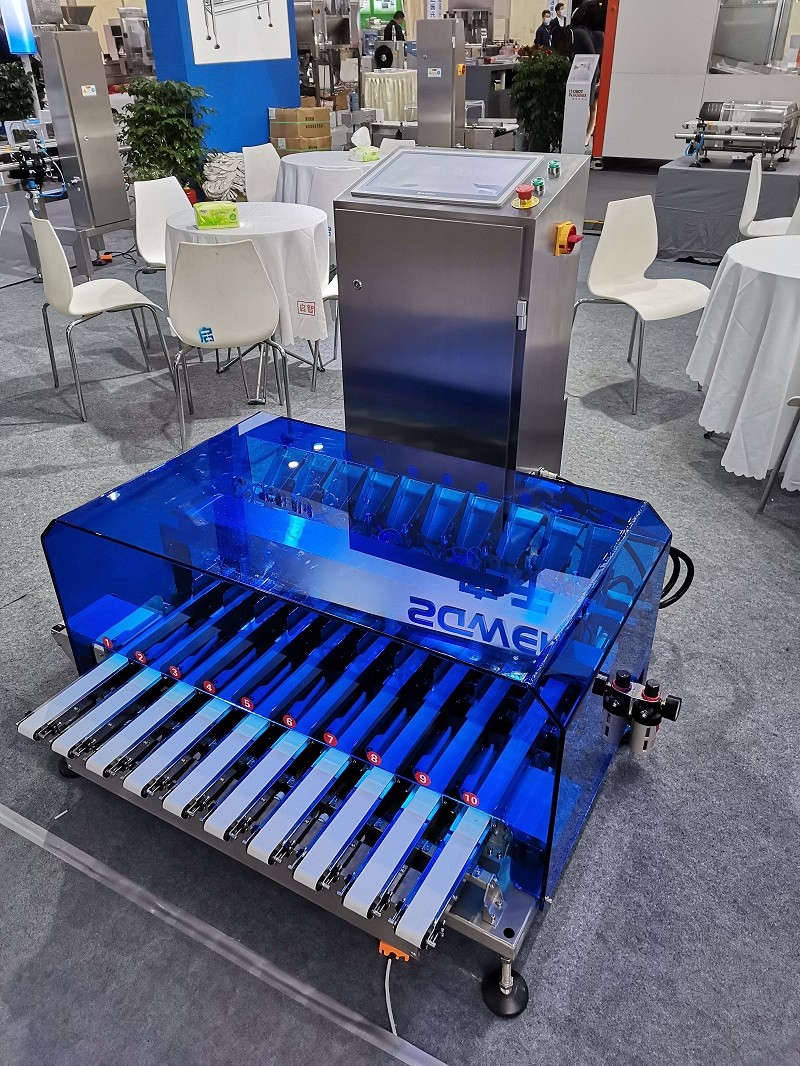

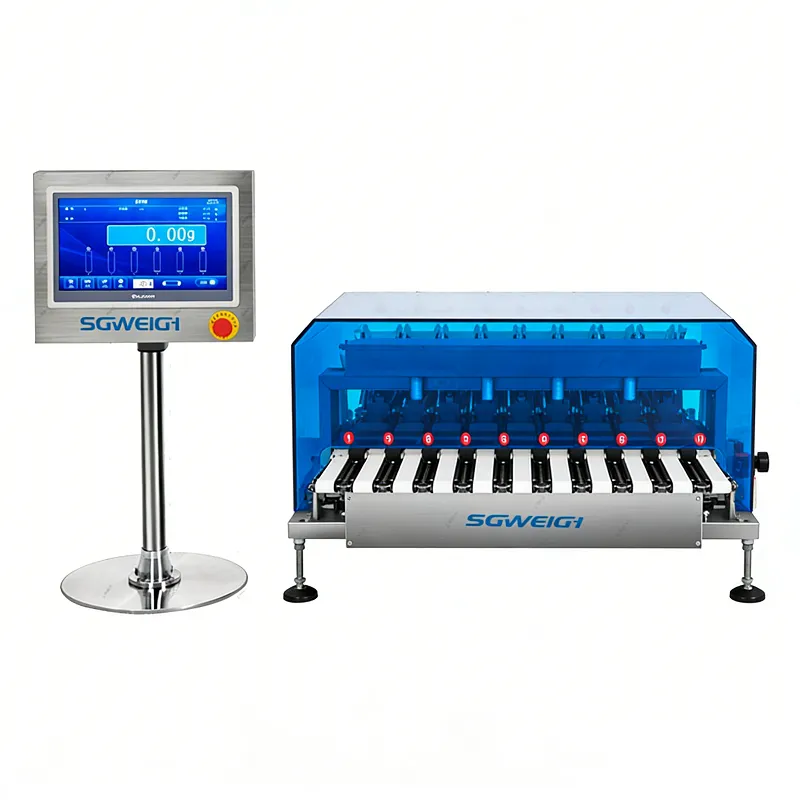

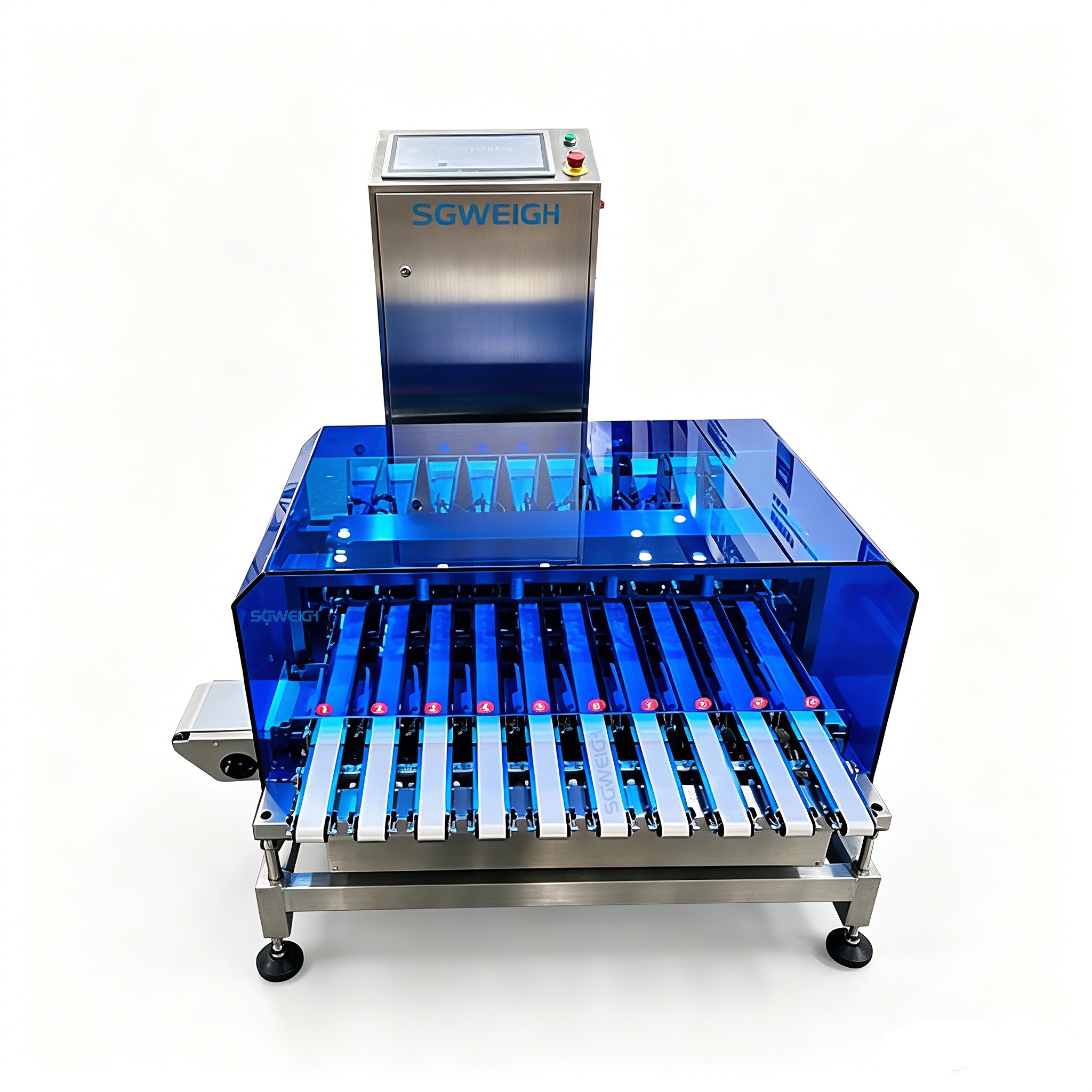

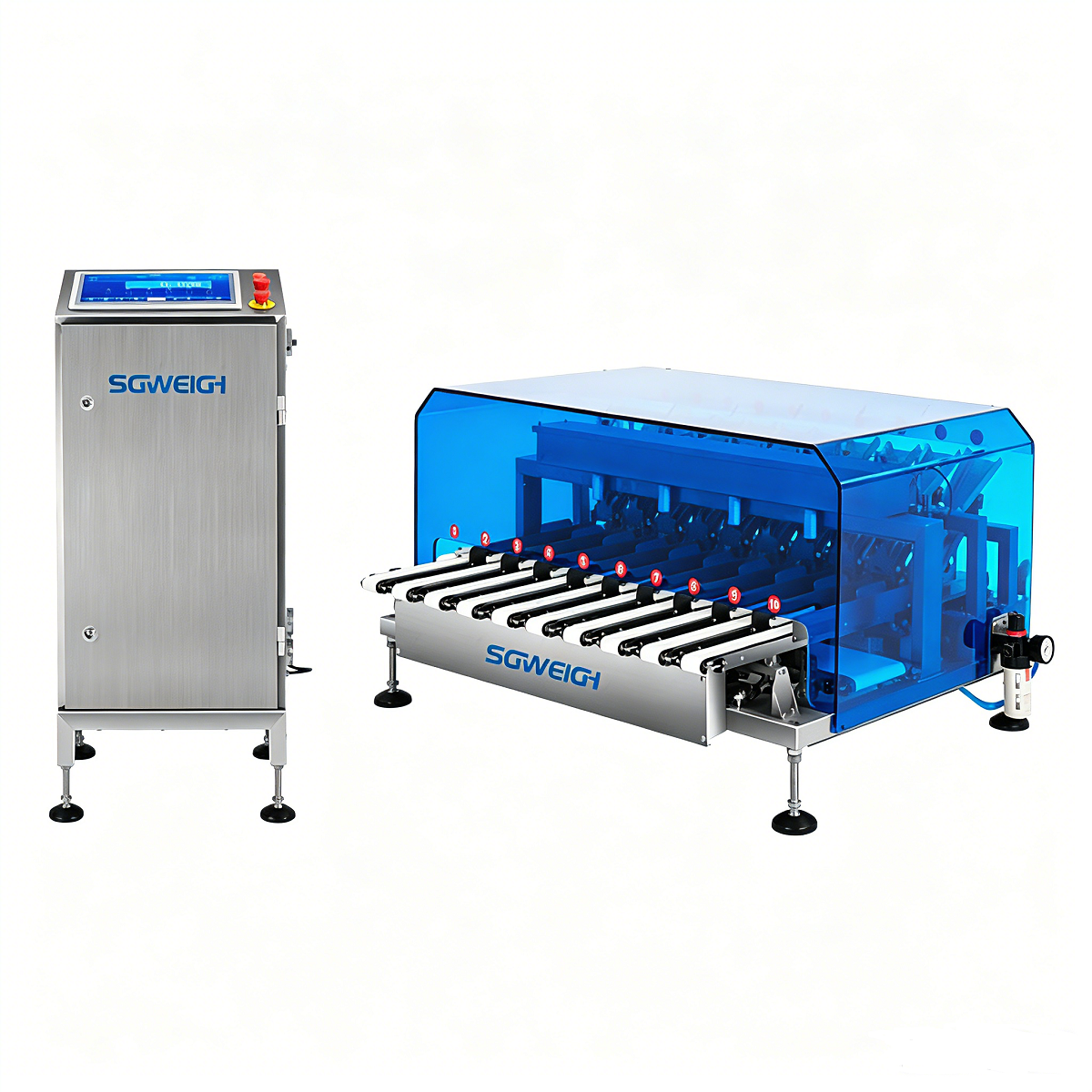

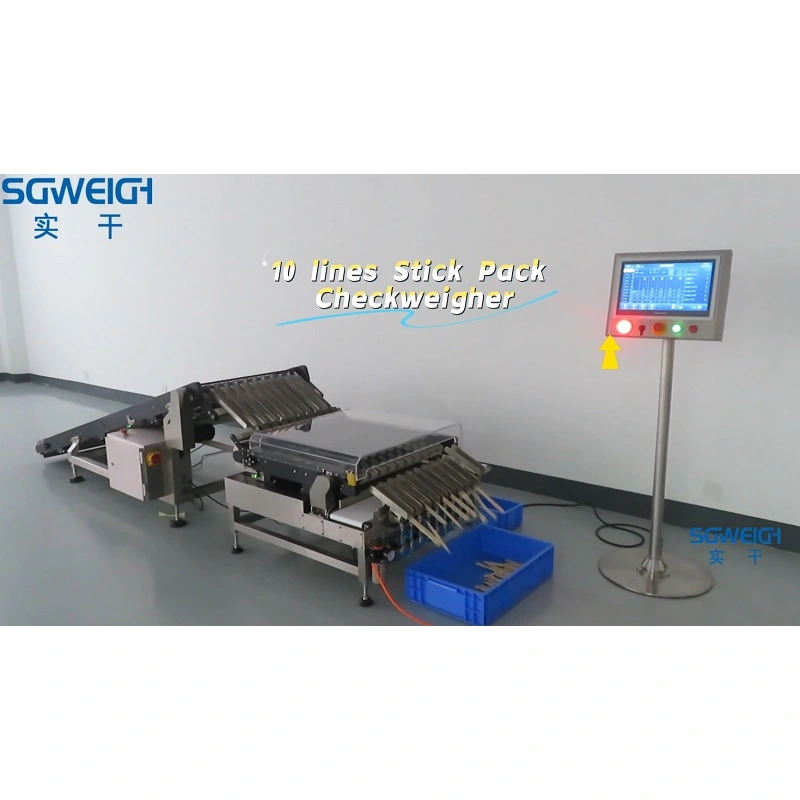

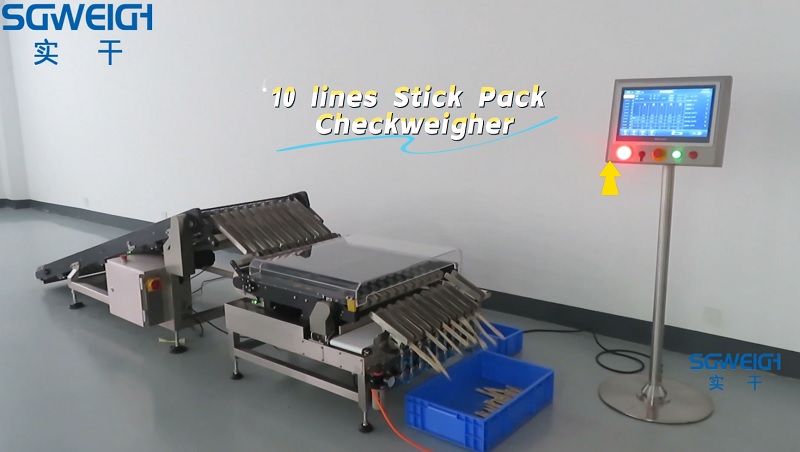

The 10 Lane Check Weigher is a high-speed, multi-lane dynamic weighing system engineered for simultaneous weight inspection of products from ten independent production lanes. Designed to integrate directly with multi-lane stick pack, sachet, strip pack, and small pouch packaging machines,Multi Lane Check Weigher Machine performs 100% in-line weight verification without reducing production efficiency.Welcome to consult for quotation information !
Type:SG-10X
Weighing scope:2-300g

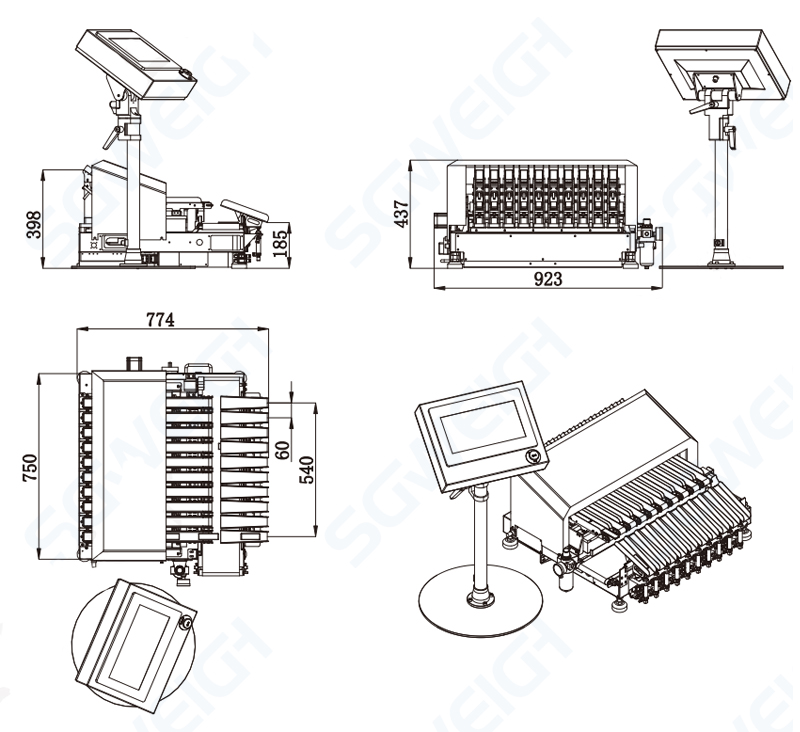

Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Max Speed:70 pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 600W
Main material:SUS304(Stainless Steel)
Multi-channel passing products to improve production efficiency
(the number of channels can be customized)

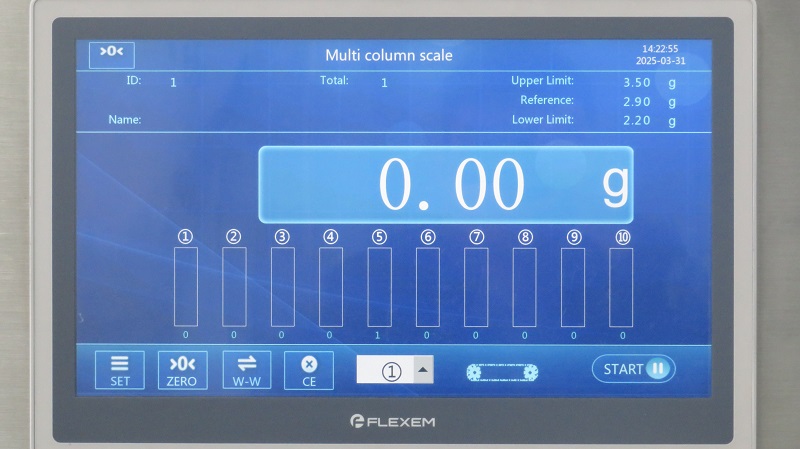

1. Large screen display, clear viewing and convenient operation
2. The default Chinese and English operation interface (multiple languages can be customized)
3. Weight compensation function
4. Histograms and graphs are used for customers to analyze product qualification rate
5. Three-level operation authority management, support self-set password
6. Can store 100 and product formula presets
7. Multiple ways to remove unqualified products
8. Multi-channel pass the product to improve production efficiency (the number of channels can be customized)
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:

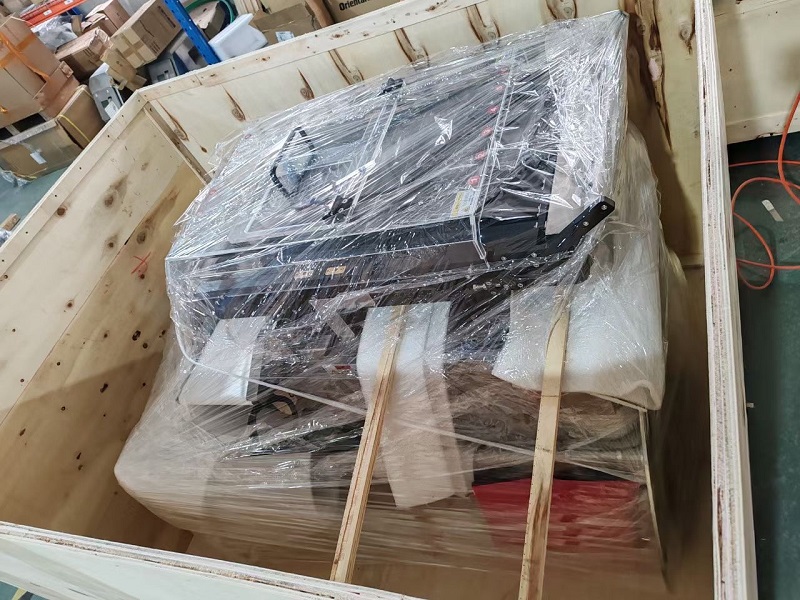

1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
