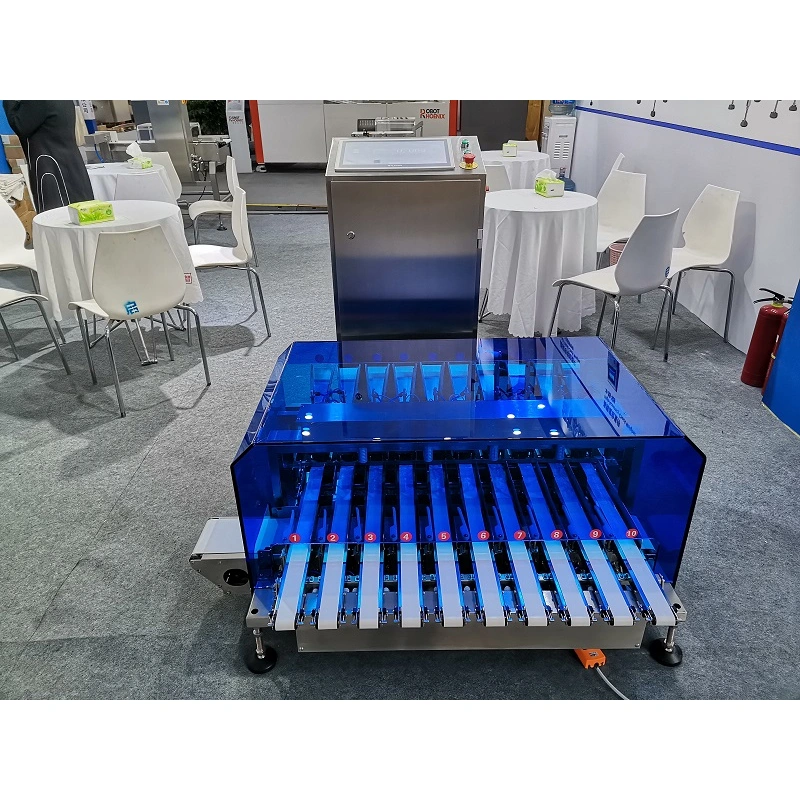

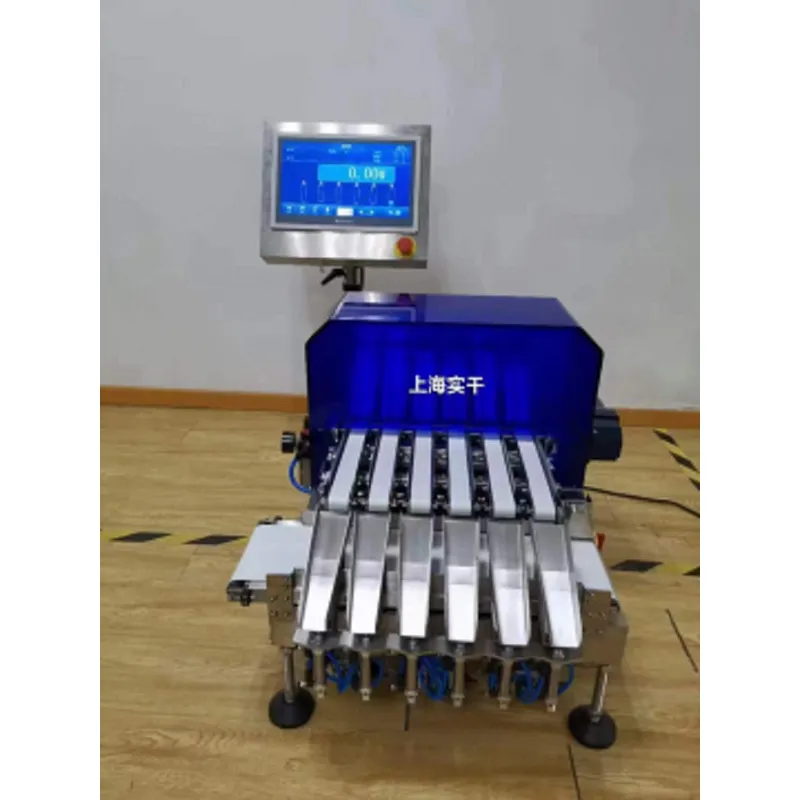

Multi-Lane Weight Checking System Multi-Track Small Pouch Weight Detection Machine can detect the weight of multiple columns at the same time,greatly improving the weighing speed and avoiding empty packages,underweight and overweight.Welcome to consult for quotation information !
Model:SG-6X
Weighing Range:1-50g
Minimum Scale:0.01g
Sorting Speed:Maximum (one channel)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. N-lane slide patent checkweigher
2. Highest checkweighing speed:70 cuts/min.
3. Highest accuracy: 0.01g
4. Each lane can separately reject unqualified products.
5. Checkweighing data feedbacks to packing machine to realize real time adjustment of each lane.
6. The number of continuous unqualified products of each channel can be modified.
7. Statistic data export interface: USB
8. Statistic data of each channel: real time results display, trend graph display, histogram display.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
