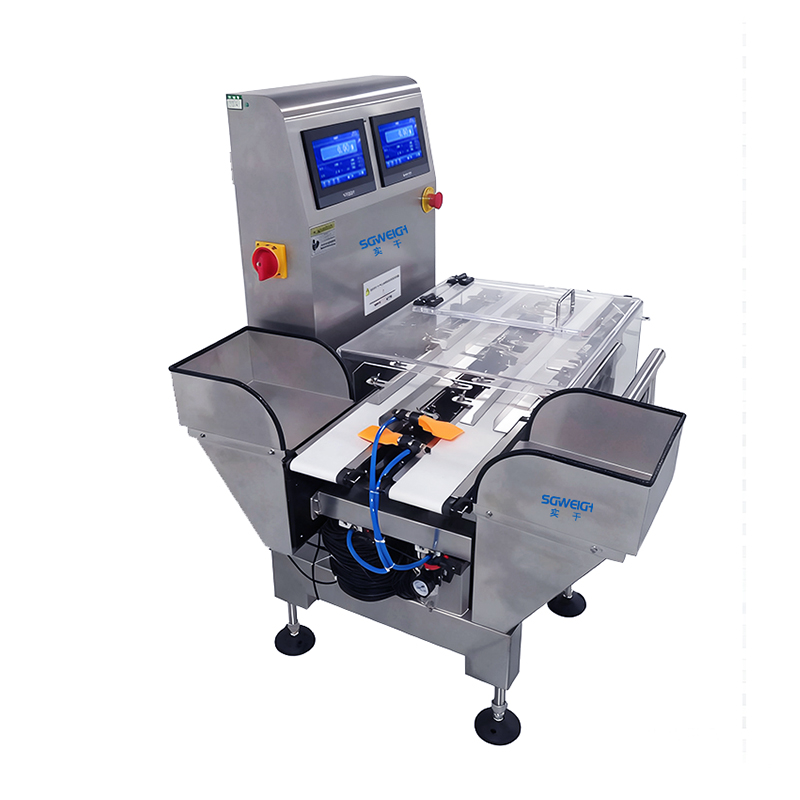

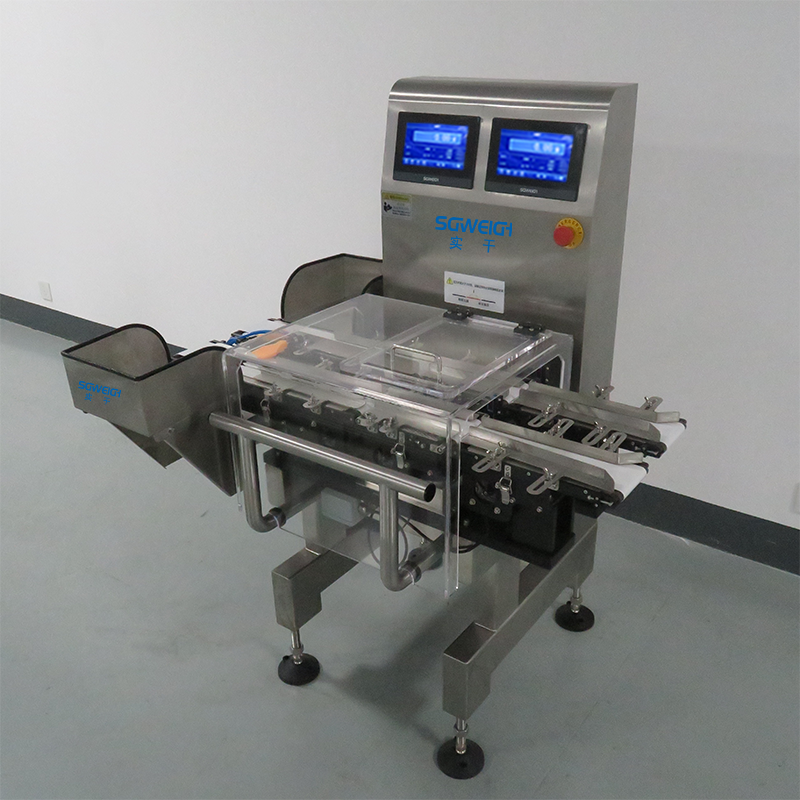

A Dual Lane Conveyor Checkweigher is a high-efficiency in-motion weighing system designed to inspect two independent product lanes simultaneously. By weighing products on dual conveyors at the same time, High-Speed Dual Lane Checkweigher significantly increases production throughput while maintaining high weighing accuracy. This solution is ideal for manufacturers seeking to maximize floor space, improve productivity, and perform 100% online weight inspection without compromising line speed.

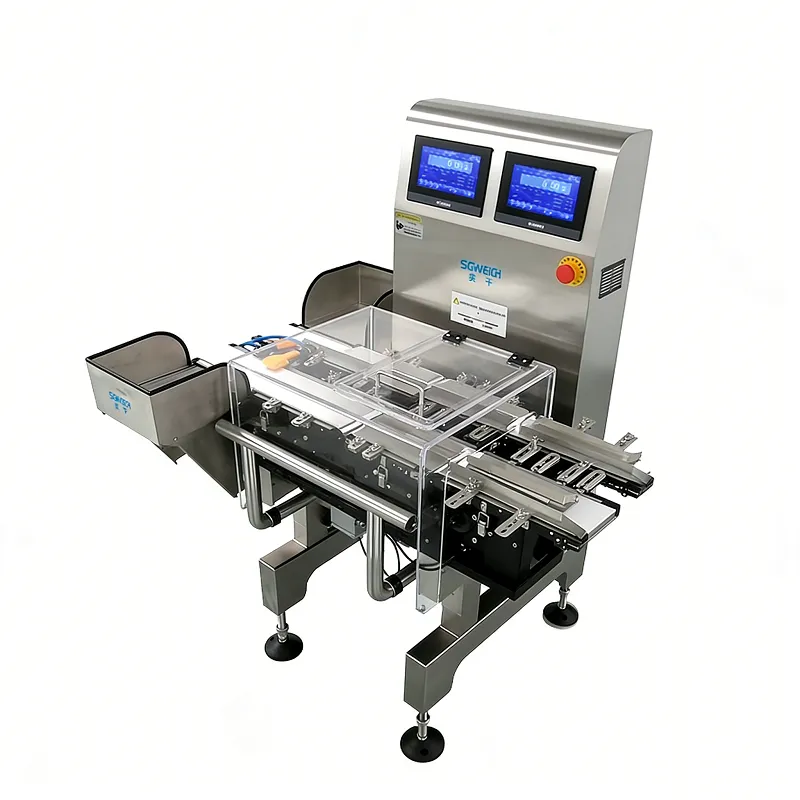

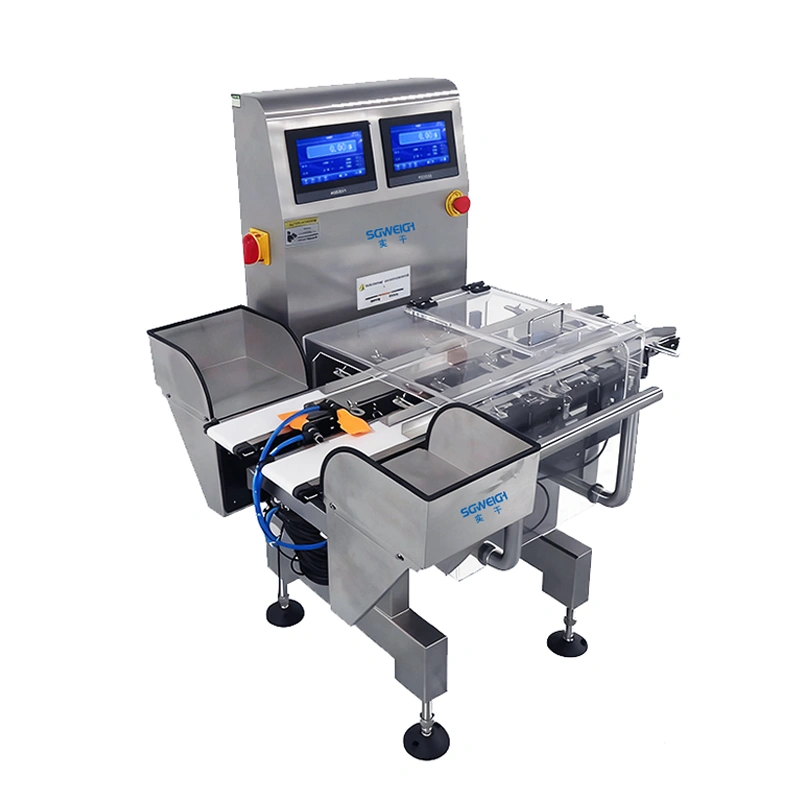

Model: SG-2X
Weighing range: 1-50g

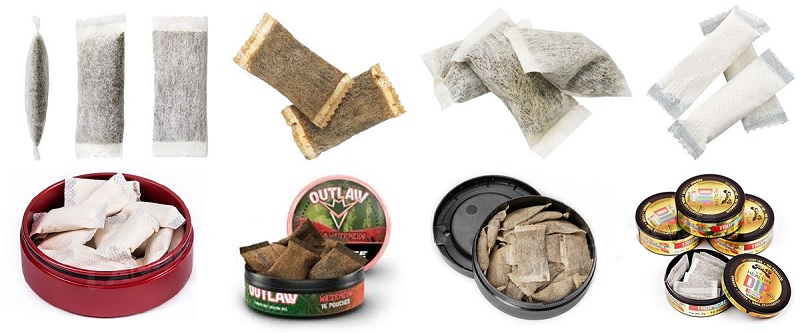

Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 70pcs/min
Belt width: 100mm
Machine weight: about 50kg
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
1. One machine is equipped with 2 touch screens and 2 weighing channels, 2 rejection systems, which do not interfere with each other and weigh independently.
2. Lifting type rejection of unqualified products.
3. Simultaneous weighing of two production lanes.

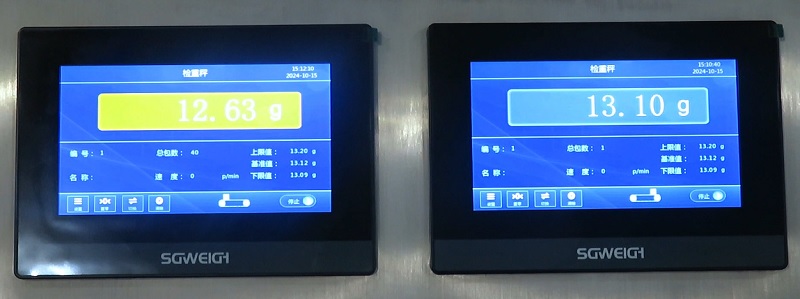

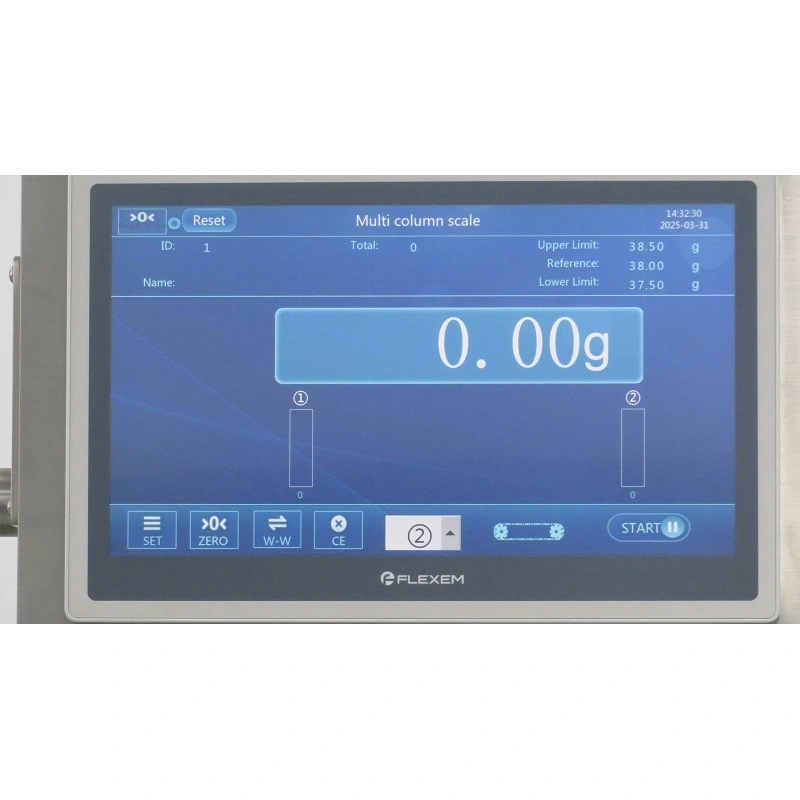

4. Intelligent touchscreen with multi-product recipe storage.
5.Real-time weight monitoring, statistics, and production reports.
6. Three-level operation authority management, support for self-set passwords.
7. Easy integration with metal detectors, labeling machines, and packaging systems.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

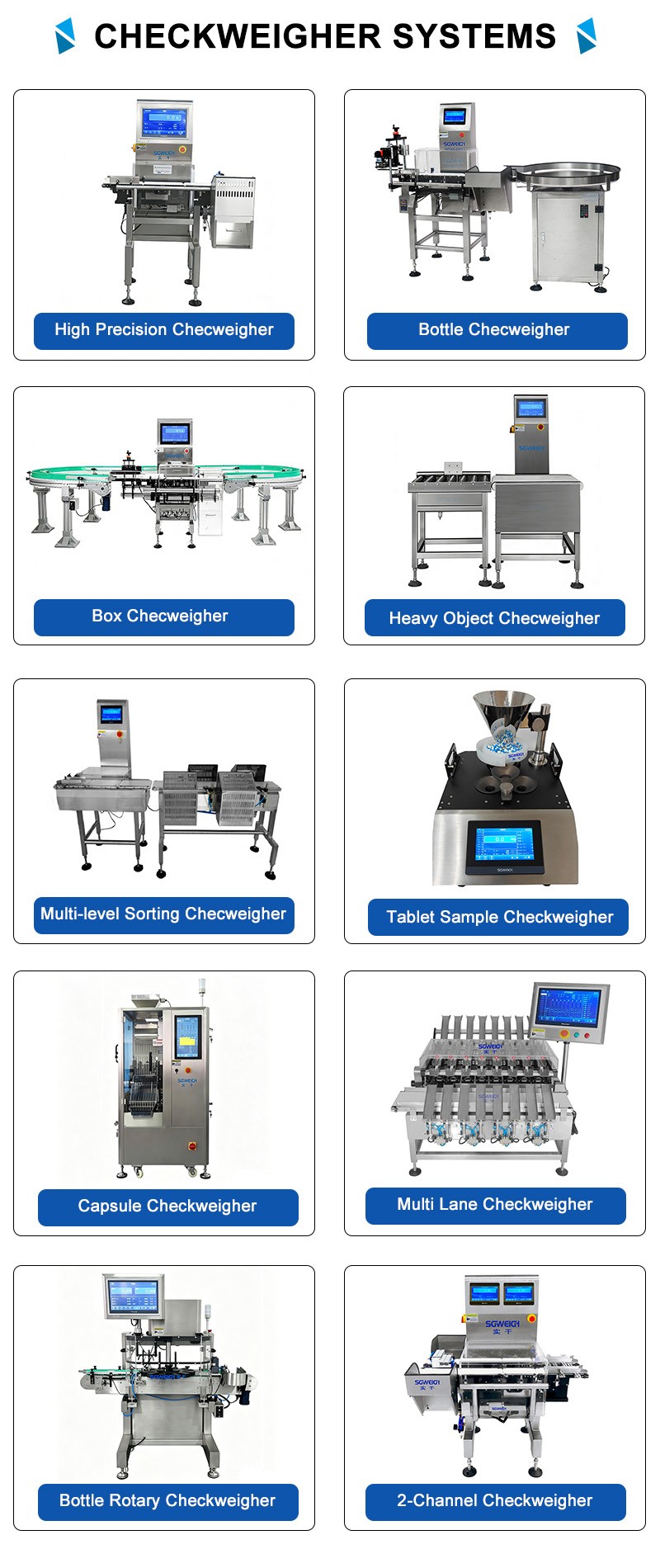

Tag:Dual-lane Checkweigher,Multi-Lane Checkweigher
