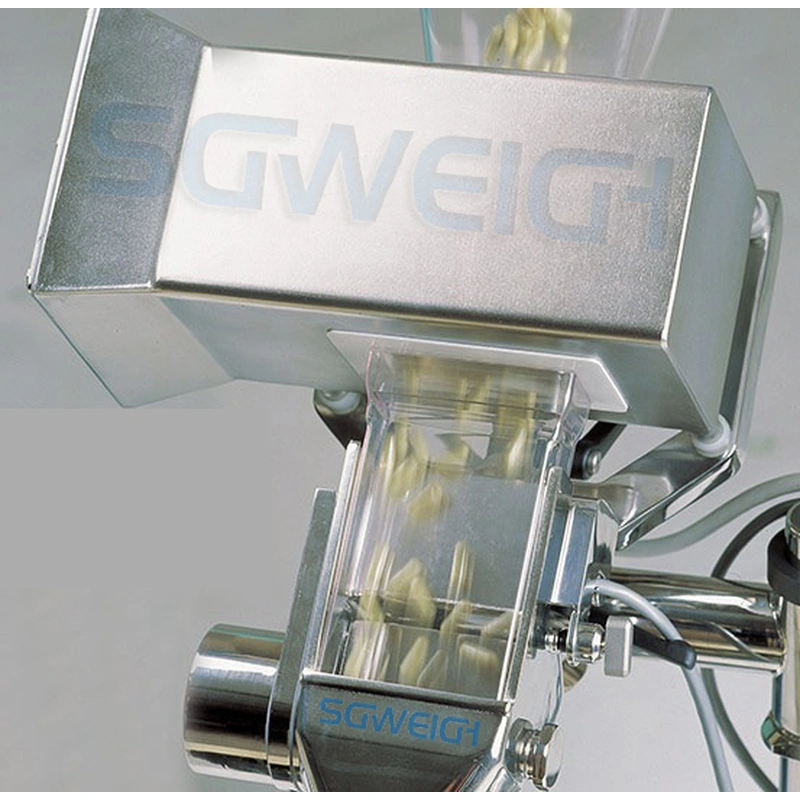

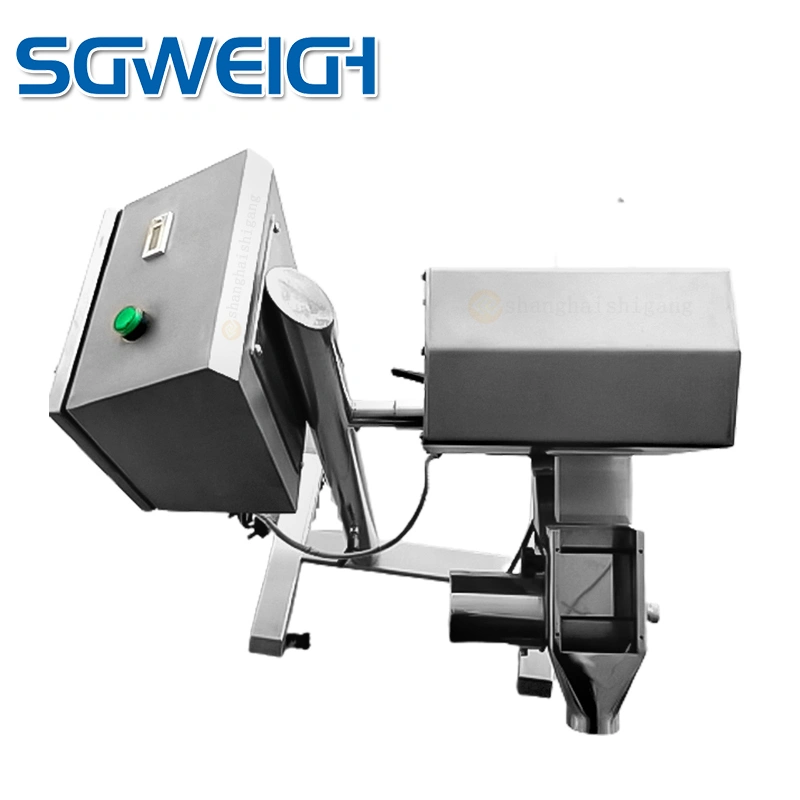

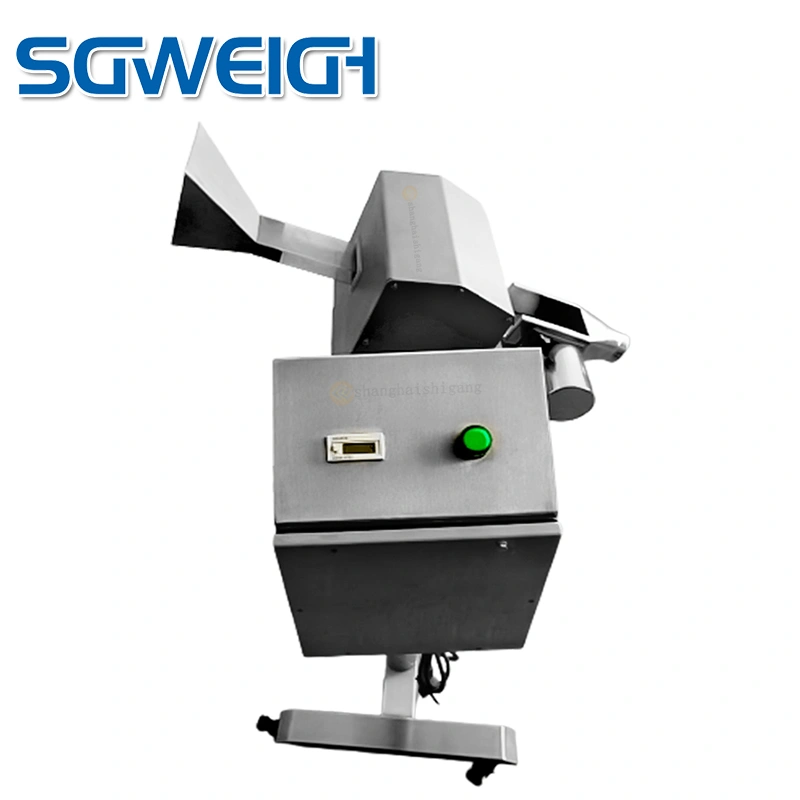

SG-YJ60 Vertical Bulk Product Drop Type Metal Detectors are designed to detect metal contaminants in free-falling bulk materials.Drop Type Metal Detector with Rejection System is commonly used in industries such as food processing, pharmaceuticals and other manufacturing processes where products are transported in free fall.The main purpose of a vertical drop metal detector is to ensure the quality and safety of the final product by identifying and removing any unwanted metal contaminants.Welcome to consult for quotation information !
SG-YJ60
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1.One-button intelligent operation,simple and convenient operation;
2.High-end products,with high precision, high sensitivity,Used to separate magnetic and non-magnetic metals from free-falling bulk materials.
3.It can handle various types of medicines.In order to save space,a more compact rack design is adopted.
4.For health and safety,the metal detector is made of food-grade SUS304 stainless steel;
5.Can automatically recognize product characteristics and effectively eliminate product effects;
6.The height of the probe is adjustable,and it can be customized for higher height.
7.Able to detect ferrous,non-ferrous or stainless steel,even in tiny quantities.
8.Fully FDA compliant,with in-built security and data control.
It is applicable to the pharmaceutical industry, such as tablets, capsules, powder, pills, etc.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
